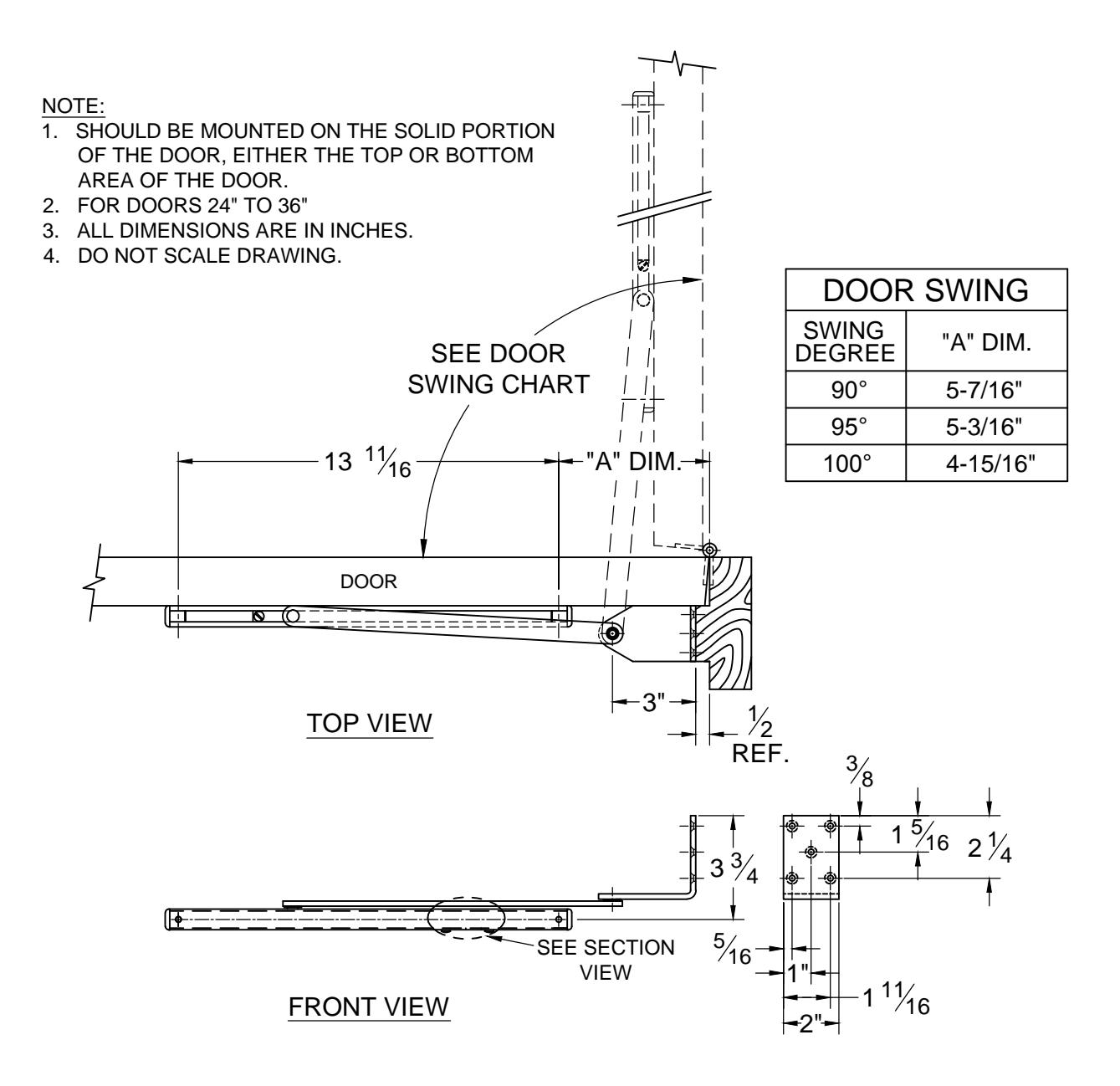

View PDF3400 SERIES DRESSING ROOM DOOR HOLDER/STOP NON-HANDED 90° TO 100° ONLY
| SCREW DETAIL | |||
|---|---|---|---|
| QTY. | WOOD | METAL | |
| JAMB | 5 |
#10 X 1-1/2 FLAT HEAD
WOOD SCREW |
#10-32 X 1/2 F.H.M.S. |
| DOOR | 2 |
#10-32 X 1-1/2 R.H.M.S.
5/16" DIA. SEX BOLT |
#10-32 X 1-1/2 R.H.M.S.
5/16" DIA. SEX BOLT |

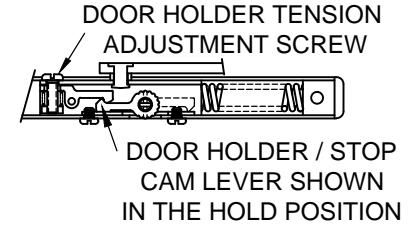

SECTION VIEW
® www.abhmfg.com
E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)
© 2015 ABH Mfg., Inc. printed in USA
3400-03.DWG
PAGE 1 OF 1 REVISED 10-13-15
