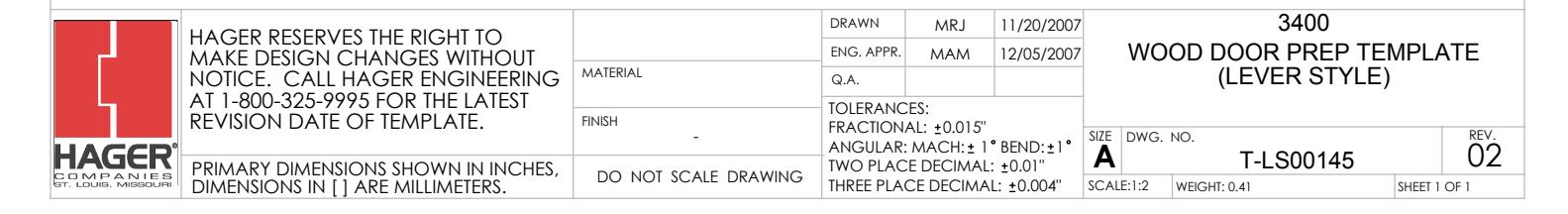

3400 Series Wood Door Template – T-LS00145-Rev02

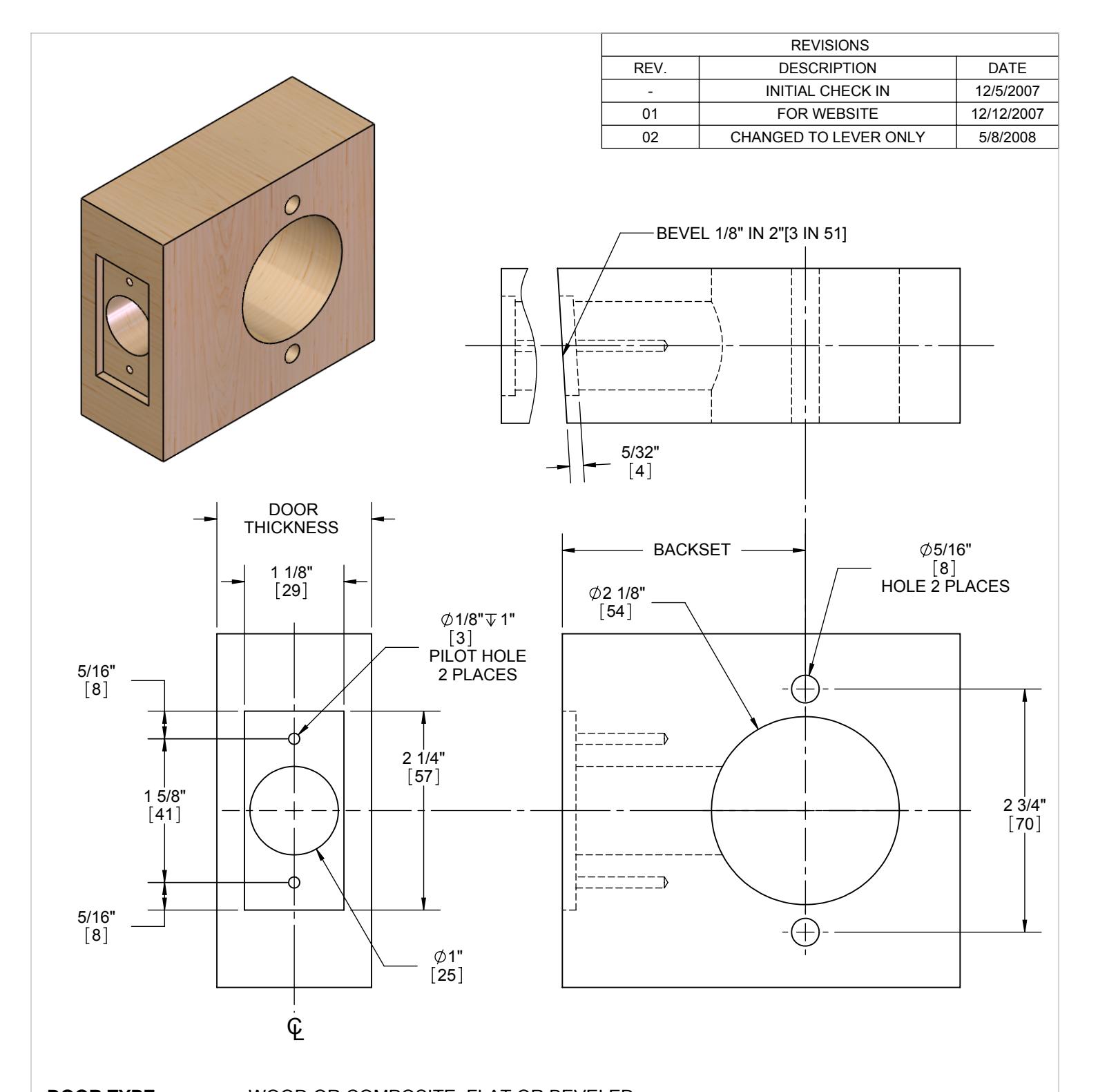

DOOR TYPE: WOOD OR COMPOSITE, FLAT OR BEVELED

DOOR THICKNESS: 1 3/8"[35] - 2"[51]

FACEPLATE: SQUARE 1 1/8"[29] WIDTH

BACKSETS: 2 3/4"[70] STANDARD, 2 3/8"[60] OPTIONAL, 5"[127] OPTIONAL

DIMENSION IN [] ARE IN MILLIMETERS
