DOOR TYPE:

FACE PLATE:

BACKSET:

NOTE: NOT FOR USE WITH 3317 DUMMY LEVERSET

A156.115-W-2006 STANDARD FOR HARDWARE PREPARATION IN WOOD DOORS DIMENSIONS IN BRACKETS [] ARE IN MILLIMETERS

PROPRIETARY & CONFIDENTIAL THE INFORMATION CONTAINED

IN THIS DRAWING IS THE SOLE PROPERTY OF HAGER COMPANIES. ANY REPRODUCTION INPART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF HAGER COMPANIES IS PROHIBITED.

MAKE DESIGN
CHANGES	l
WITHOUT NOTICE	l
CALL HAGER ENGINEERING AT	r
1-800-325-9995	l
FOR THE LATEST	ŀ
REVISION DATE	l

S		DRAWN	KJW	10/26/2017
		ENG. APPR.	MAM	10/26/2017
Ξ.	MATERIAL	Q.A.
Γ	FINISH -		CES: VAL: ±0.015" R: MACH:± 1° BEND:±1°
	DO NOT SCALE DRAWING	TWO PLACE DECIMAL: ±0.01" THREE PLACE DECIMAL: ±0.004"

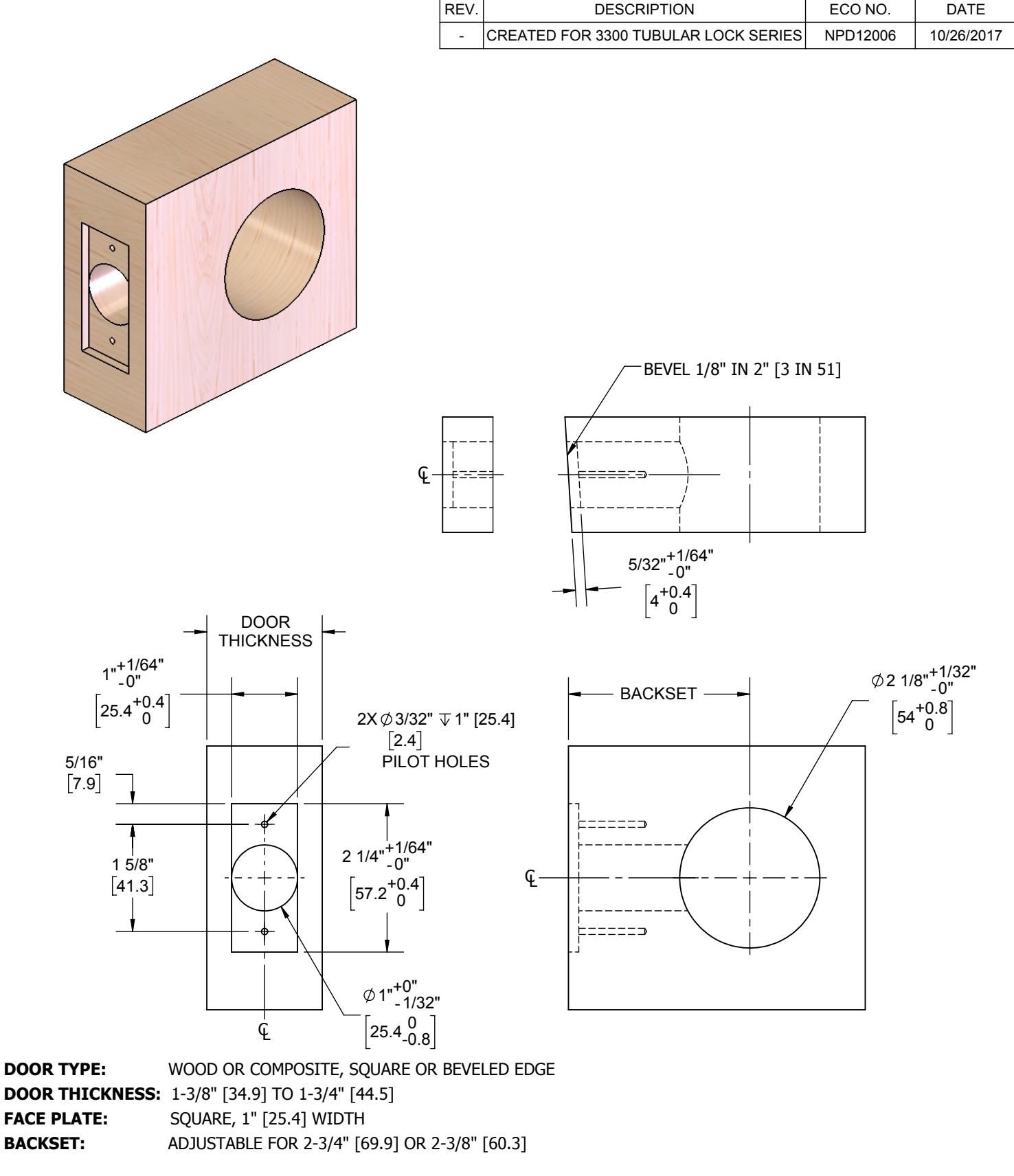

3310, 3340, 3353 WOOD DOOR PREP TEMPLATE, SQUARE CORNER

TEMPLATE DERIVED FROM ANSI/BHMA

SIZE	DWG. I	NO.		REV.	_
Α		T-LS01993		-
SCALE:1:2		WEIGHT: 0.42	SHEE	T 1 OF 2

DOOR TYPE: WOOD OR COMPOSITE, SQUARE OR BEVELED EDGE

DOOR THICKNESS: 1-3/8" [34.9] TO 1-3/4" [44.5] FACE PLATE: ROUND, 1" [25.4] WIDTH

BACKSET: ADJUSTABLE FOR 2-3/4" [69.9] OR 2-3/8" [60.3]

NOTE: NOT FOR USE WITH 3317 DUMMY LEVERSET

DIMENSIONS IN BRACKETS [] ARE IN MILLIMETERS

TEMPLATE DERIVED FROM ANSI/BHMA A156.115-W-2006 STANDARD FOR HARDWARE PREPARATION IN WOOD DOORS

PROPRIETARY & CONFIDENTIAL THE INFORMATION CONTAINED

IN THIS DRAWING IS THE SOLE PROPERTY OF HAGER COMPANIES. ANY REPRODUCTION INPART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF HAGER COMPANIES IS PROHIBITED. OF TEMPLATE

	HAGER RESERVES THE RIGHT TO MAKE DESIGN
	CHANGES WITHOUT NOTICE.	l
	CALL HAGER	ŀ
1	ENGINEERING AT 1-800-325-9995
	FOR THE LATEST REVISION DATE	ŀ
ш	OF TELADI ATE

,		DRAWN	KJW	10/26/2017
		ENG. APPR.	MAM	10/26/2017
	MATERIAL	Q.A.
	FINISH -	TOLERANCES: FRACTIONAL: ±0.015" ANGULAR: MACH: ± 1° BEND:
	DO NOT SCALE DRAWING	TWO PLACE DECIMAL: ±0.01" THREE PLACE DECIMAL: ±0.004"

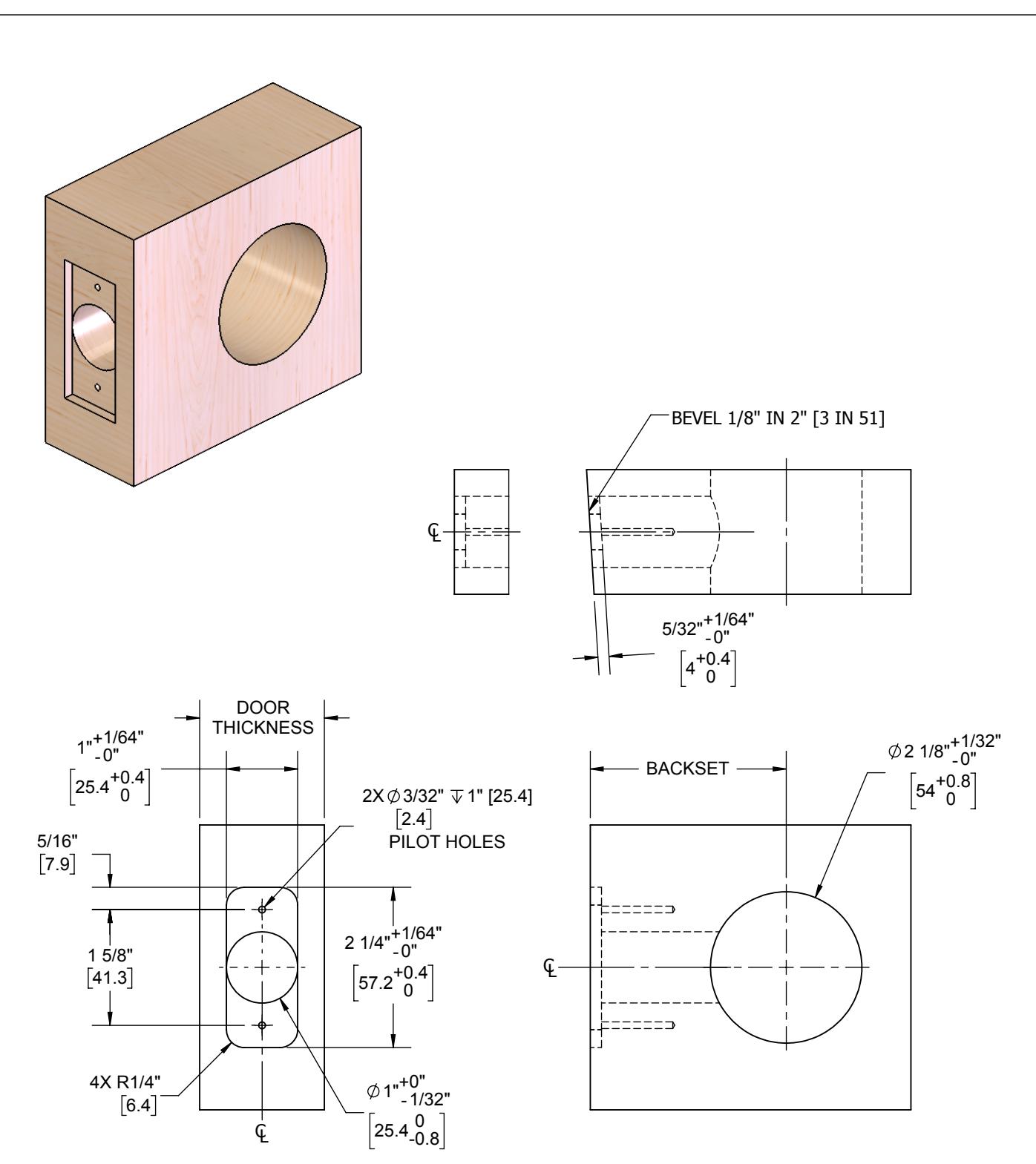

3310, 3340, 3353 WOOD DOOR PREP TEMPLATE, ROUND CORNER

SIZE	DWG. I	NO.		REV.
Α		T-LS01993		-
SCAL	E:1:2	WEIGHT: 0.42	SHEET	2 OF 2
