3300 Series – Metal Door Template – T-LS01994

THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAGER COMPANIES. ANY REPRODUCTION INPART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF HAGER COMPANIES IS PROHIBITED

THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE.

MATERIAL Material <not specified>

DO NOT SCALE DRAWING

ENG. APPR MAM 10/26/2017 TOLERANCES: FRACTIONAL: ±0.015" ANGULAR: MACH: ± 1° BEND: ±1°

TWO PLACE DECIMAL: ±0.01"

THREE PLACE DECIMAL: ±0.004"

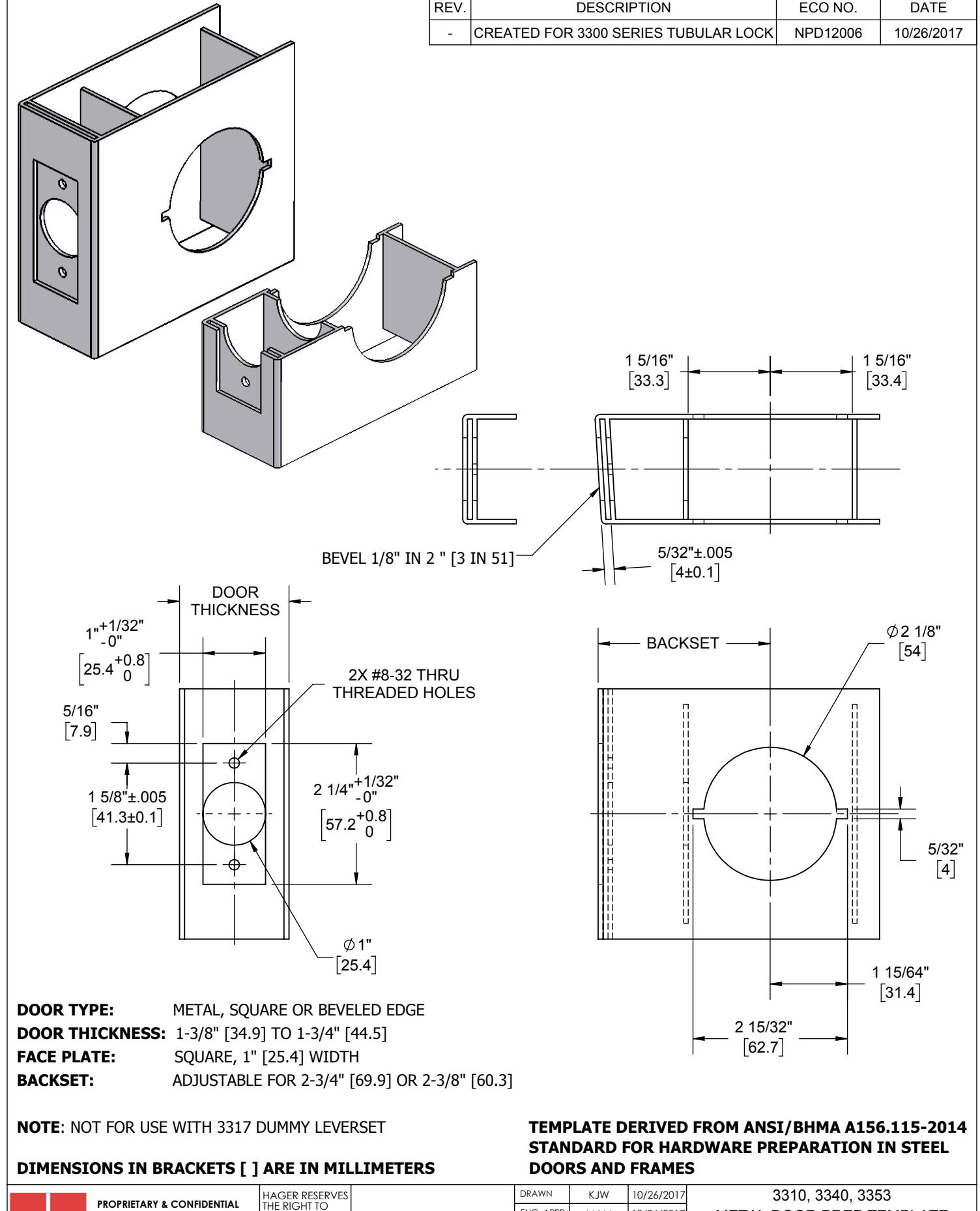

METAL DOOR PREP TEMPLATE

Α T-LS01994 WEIGHT: 0.13 SHEET 1 OF 1 SCALE:1:2
