3221 Wood Door Template – T-LS00329-Rev02

FACEPLATE: SQUARE 1 1/8"[29] WIDTH STANDARD, SQUARE 1"[25] WIDTH OPTIONAL

BACKSETS: ADJUSTABLE FOR 2 3/4"[70] AND 2 3/8"[60]

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE.

PRIMARY DIMENSIONS SHOWN IN INCHES, DIMENSIONS IN [] ARE MILLIMETERS.

	DRAWN	MRJ	7/29/2008	|
	ENG. APPR.	-	-
MATERIAL	Q.A.
FINISH -	TOLERANCES: FRACTIONAL: ±0.015" ANGULAR: MACH: ± 1° BEND: ±1°
DO NOT SCALE DRAWING	TWO PLACE DECIMAL: ±0.01" THREE PLACE DECIMAL: ±0.004"

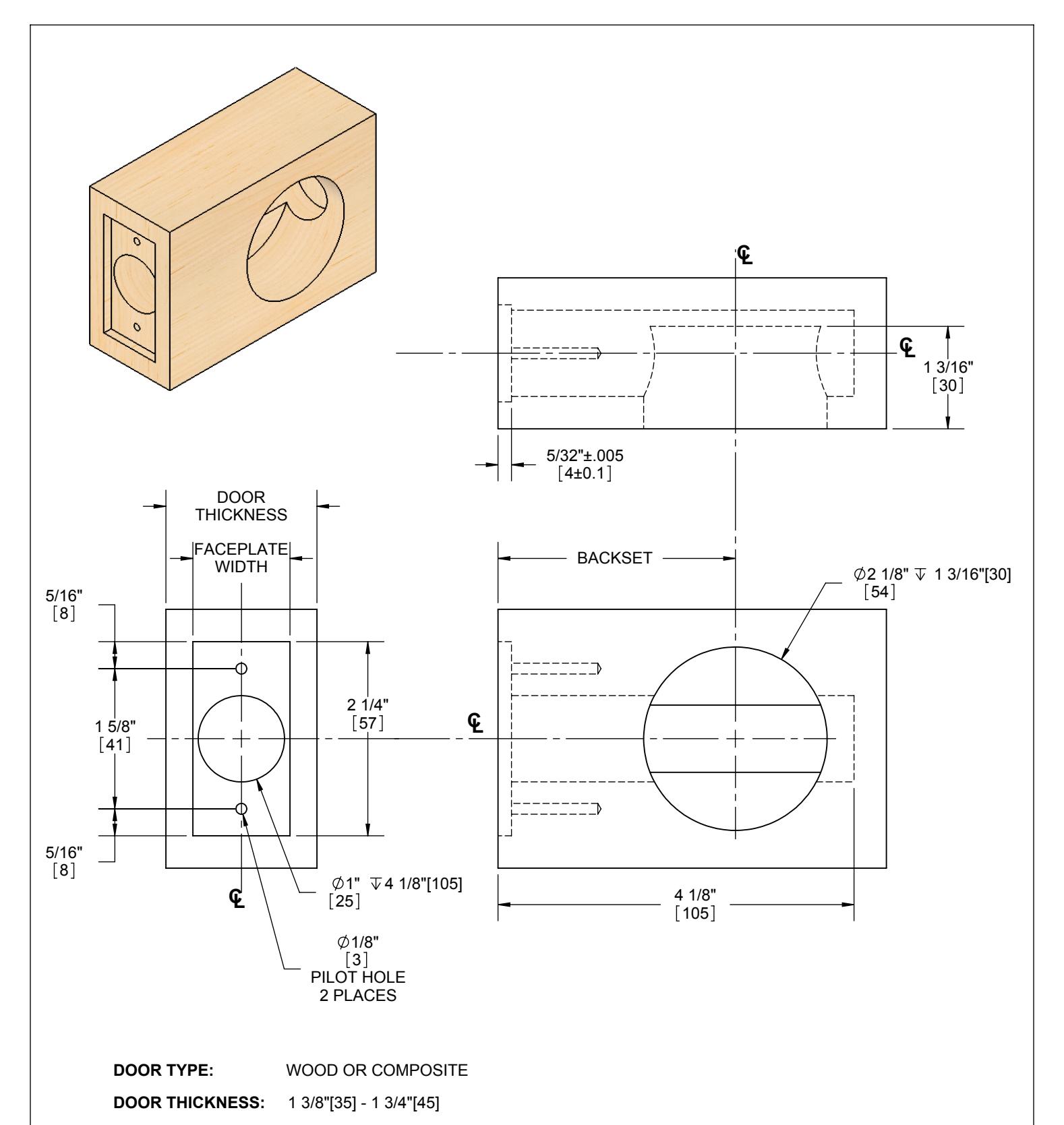

3221 WOOD DOOR PREP TEMPLATE

SIZE DWG, NO. REV. 02 SCALE:1:2 WEIGHT: 0.31 SHEET 1 OF 1
