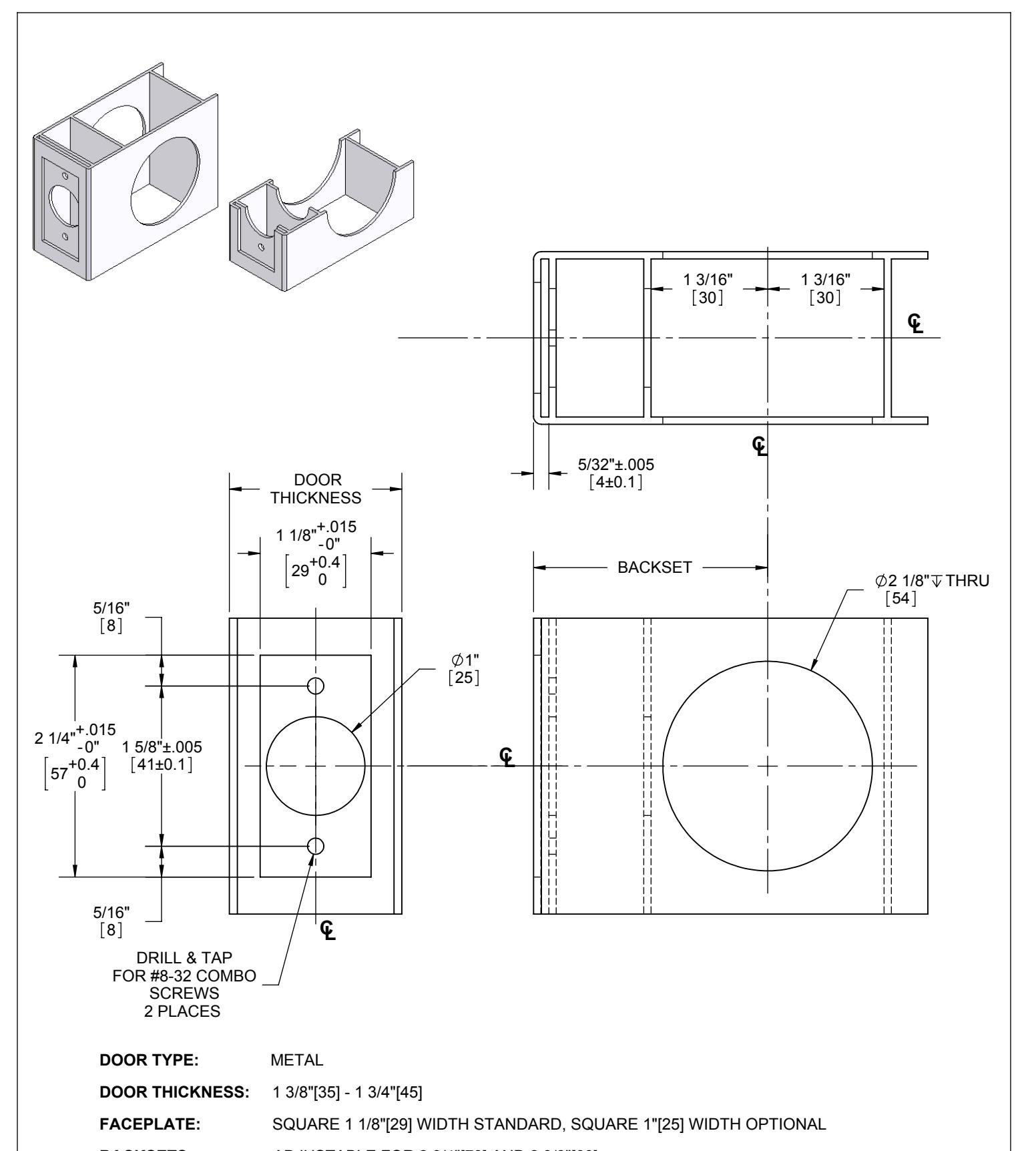

3220 Metal Door Template – T-LS00334-Rev01

BACKSETS: ADJUSTABLE FOR 2 3/4"[70] AND 2 3/8"[60]

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE.

PRIMARY DIMENSIONS SHOWN IN INCHES, DIMENSIONS IN [] ARE MILLIMETERS.

MATERIAL Q.A Material <not specified> FINISH _ FRA ANG DO NOT SCALE DRAWING

ENG. APPR. _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

MRJ

7/30/2008

3220 METAL DOOR PREP TEMPLATE

SIZE DWG. NO. REV. 01 SCALE:1:2 WEIGHT: 0.09 SHEET 1 OF 1
