3216 Metal Door Template – T-LS01903-Rev01

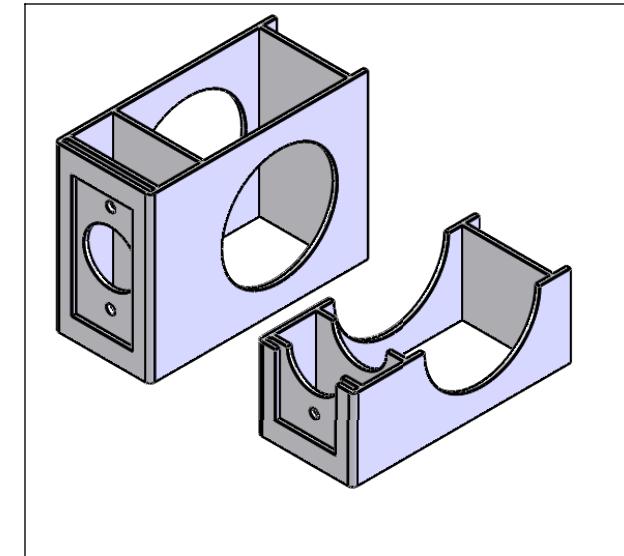

3216 INDICATOR DEAD LOCK METAL DOOR PREP TEMPLATE

HAGER

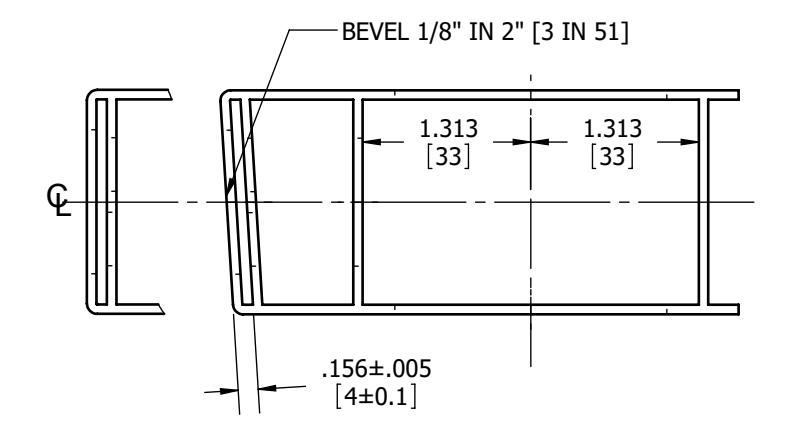

DOOR TYPE: METAL, FLAT OR BEVELED

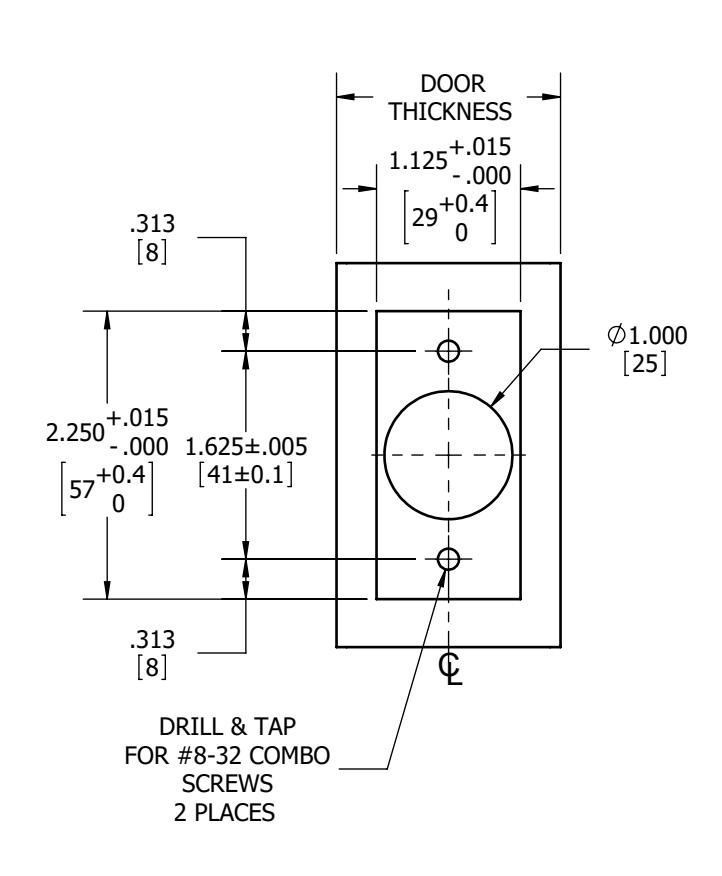

DOOR THICKNESS: 1 3/4"[45]

FACEPLATE: SQUARE 1 1/8"[29] WIDTH

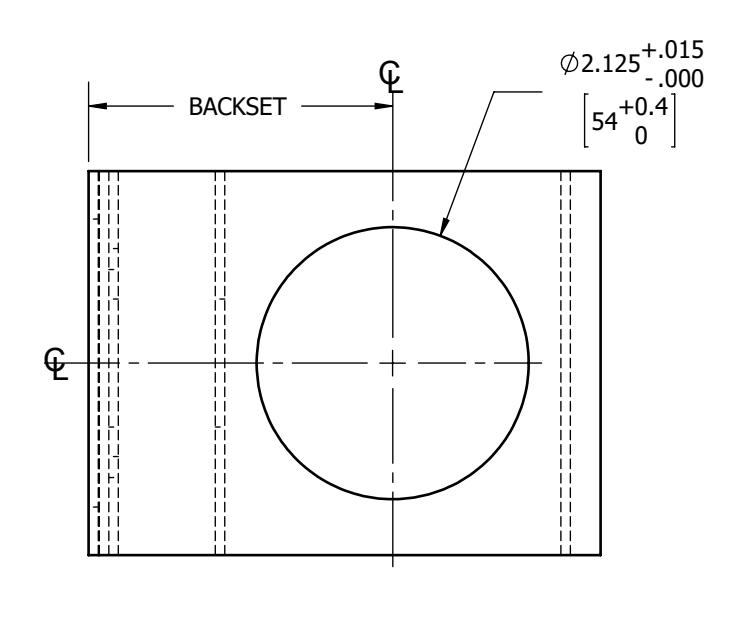

BACKSETS: 2 3/8" [60], 2 3/4"[70]

DIMENSIONS IN [] ARE IN MILLIMETERS

TEMPLATE NO: DRAWING NO: T-LS01903 REV: 01 SHEET 1 OF 1 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149
