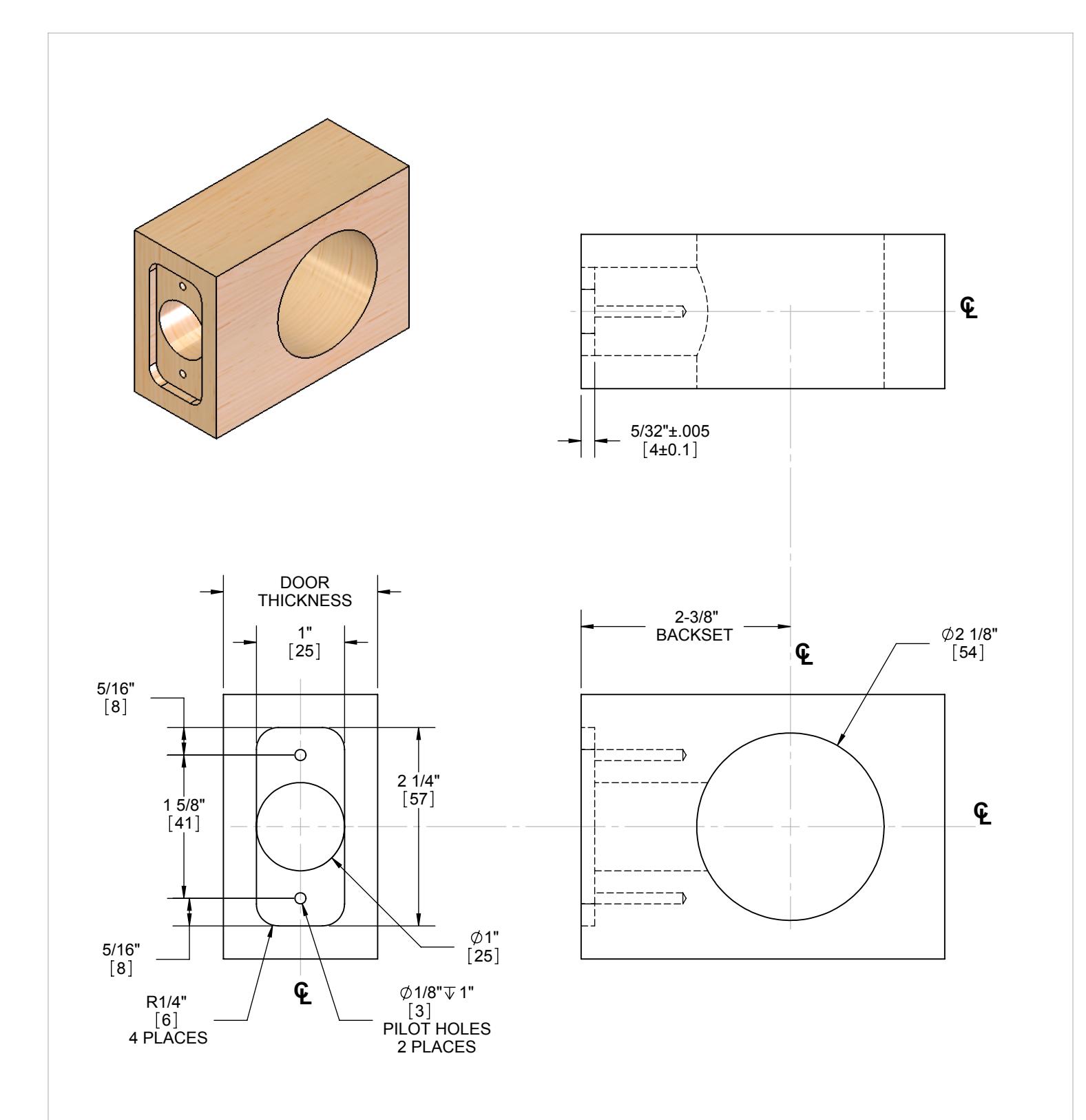

3200 Series RC Wood Door Template 2-3-8in BS – T-LS00782-Rev01-

DOOR TYPE: WOOD OR COMPOSITE, FLAT OR BEVELED

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: 1/4"R, 1"[25] WIDTH

BACKSETS : 2 3/8"[60]

DIMENSIONS SHOWN IN BRACKETS [] ARE IN MILLIMETERS
