View PDF3214/3215 DEADBOLTS

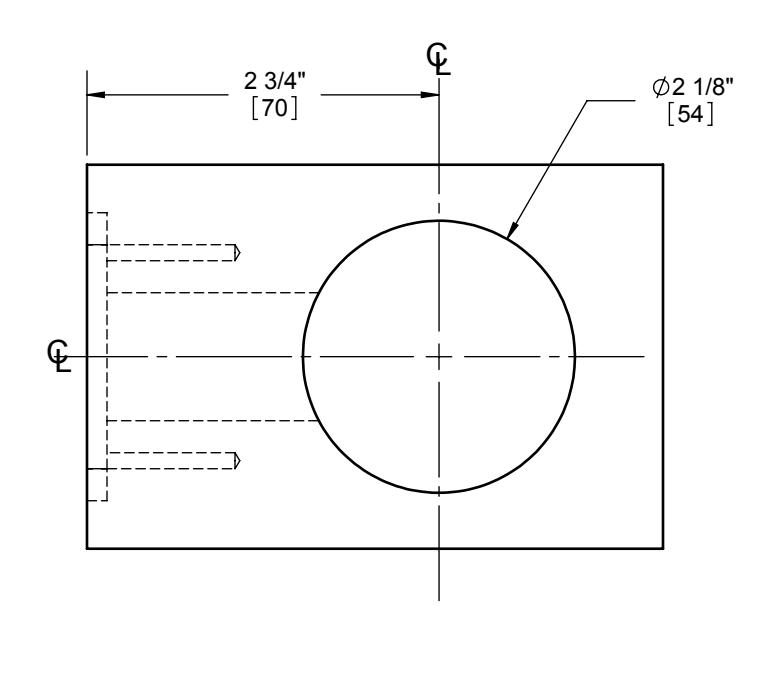

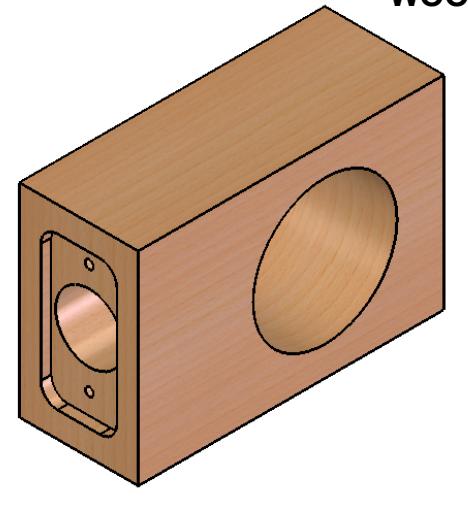

WOOD DOOR PREP TEMPLATE - ROUND CORNER (2-3/4" BACKSET)

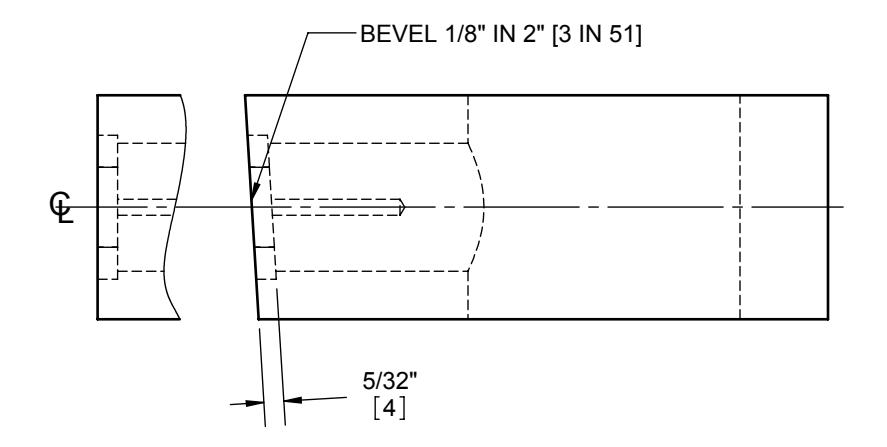

DOOR TYPE: WOOD OR COMPOSITE, FLAT OR BEVELED

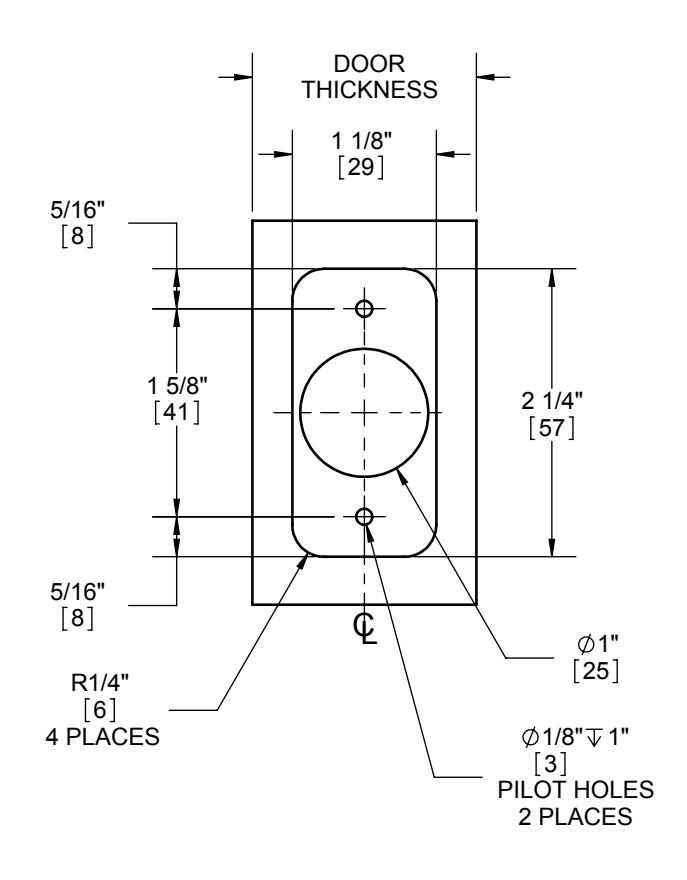

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: 1/4"R, 1 1/8"[29] WIDTH
BACKSETS: 2 3/4"[70]
DIMENSIONS IN [] ARE IN MILLIMETERS
| ETERS |
HAGER
COMPANIES ST. LOUIS, MISSOURI |
||
|---|---|---|---|
| TEMPLATE NO: | DRAWING NO: T-LS00778 | REV: 03 | SHEET 1 OF 1 |
| HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149 | |||
