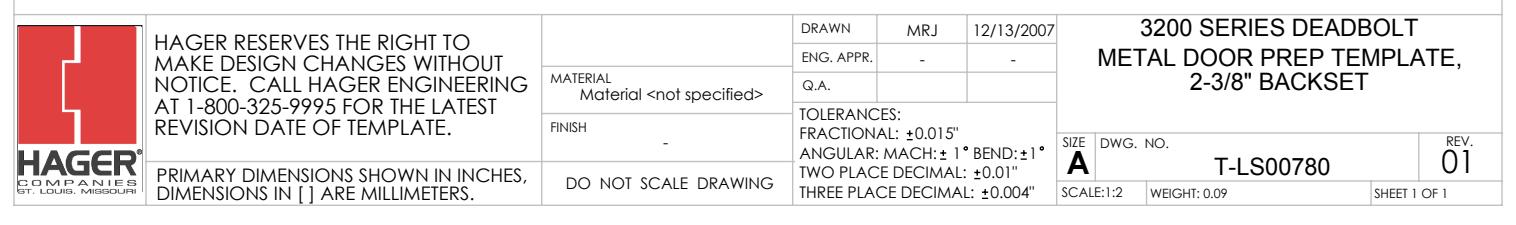

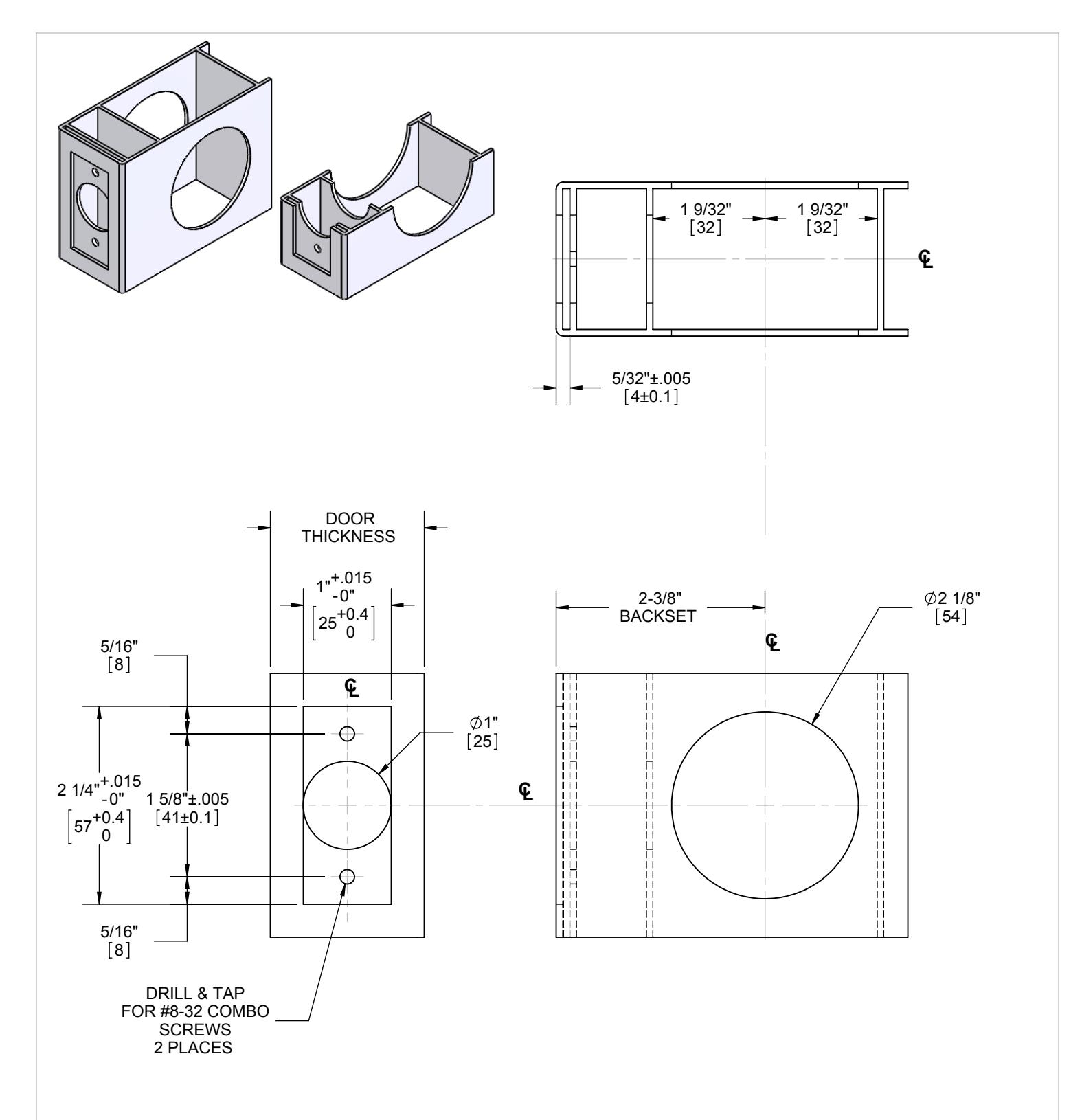

3200 Series Metal Door Template 2-3-8in BS – T-LS00780-Rev01

DOOR TYPE: METAL, FLAT OR BEVELED

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45]

FACEPLATE: SQUARE 1"[25] WIDTH

BACKSETS : 2 3/8"[60]

$\{\backslash tt\; DIMENSIONS\backslash \; IN\backslash \; [\backslash \; ]\backslash \; ARE\backslash \; IN\backslash \; MILLIMETERS\}$
