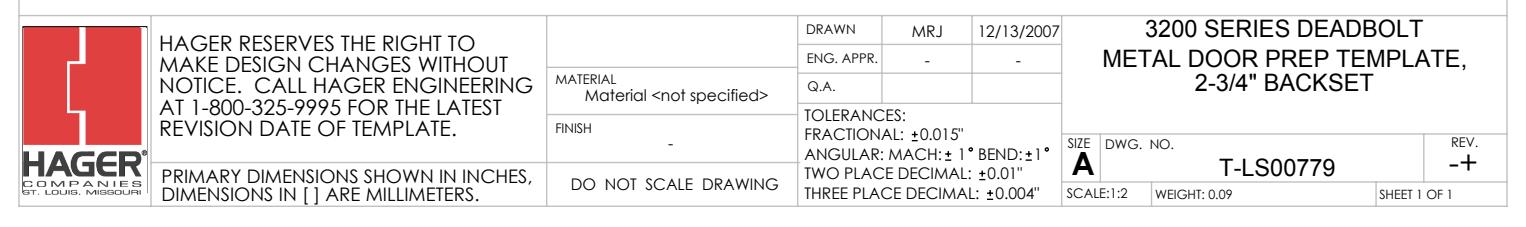

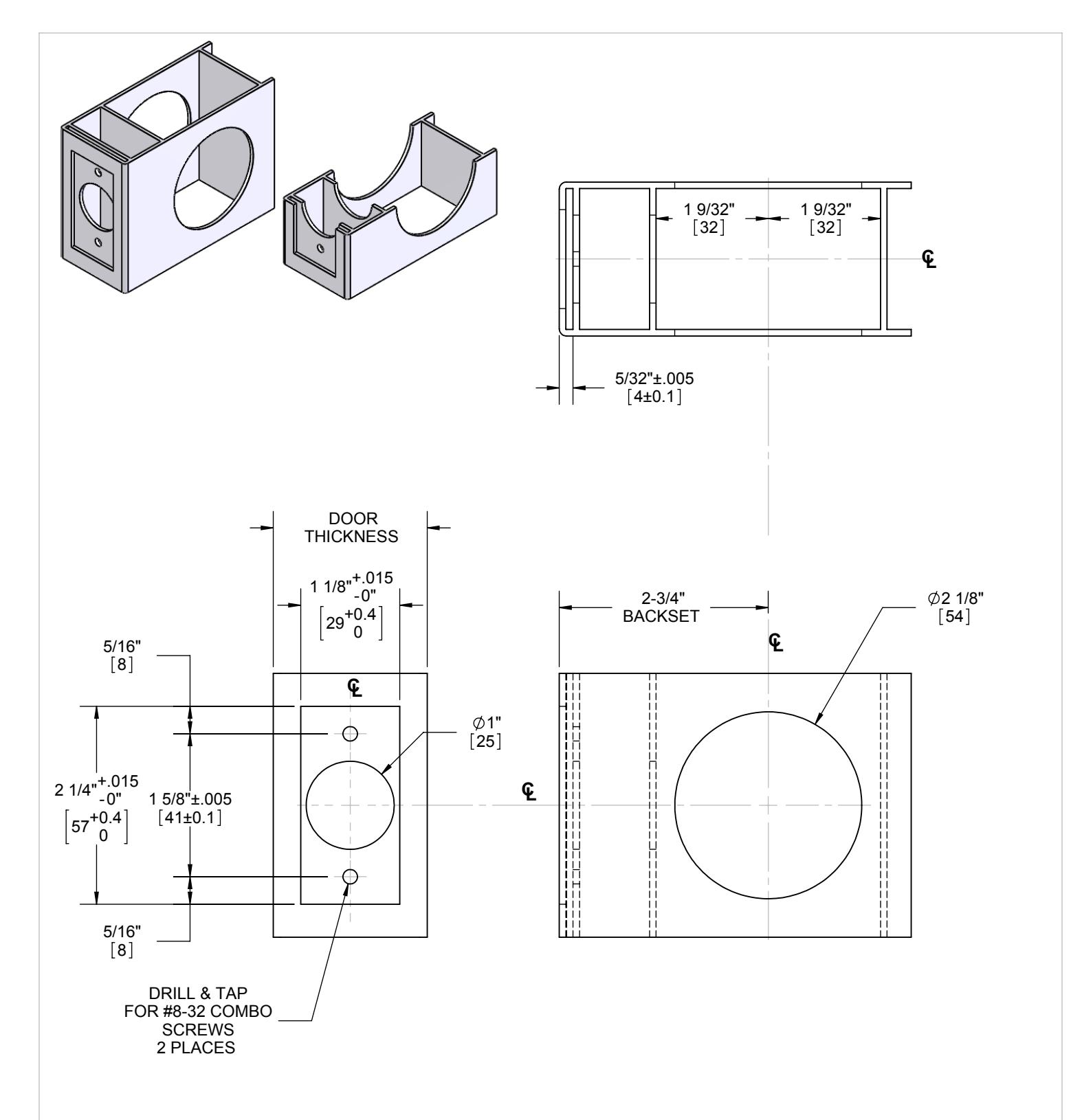

3200 Series Metal Door Template 2-3-4in BS – T-LS00779

DOOR TYPE: METAL, FLAT OR BEVELED

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45]

FACEPLATE: SQUARE 1 1/8"[29] WIDTH

BACKSETS : 2 3/4"[70]

DIMENSIONS IN [] ARE IN MILLIMETERS
