3100/3101 DOOR CLOSER MODELS

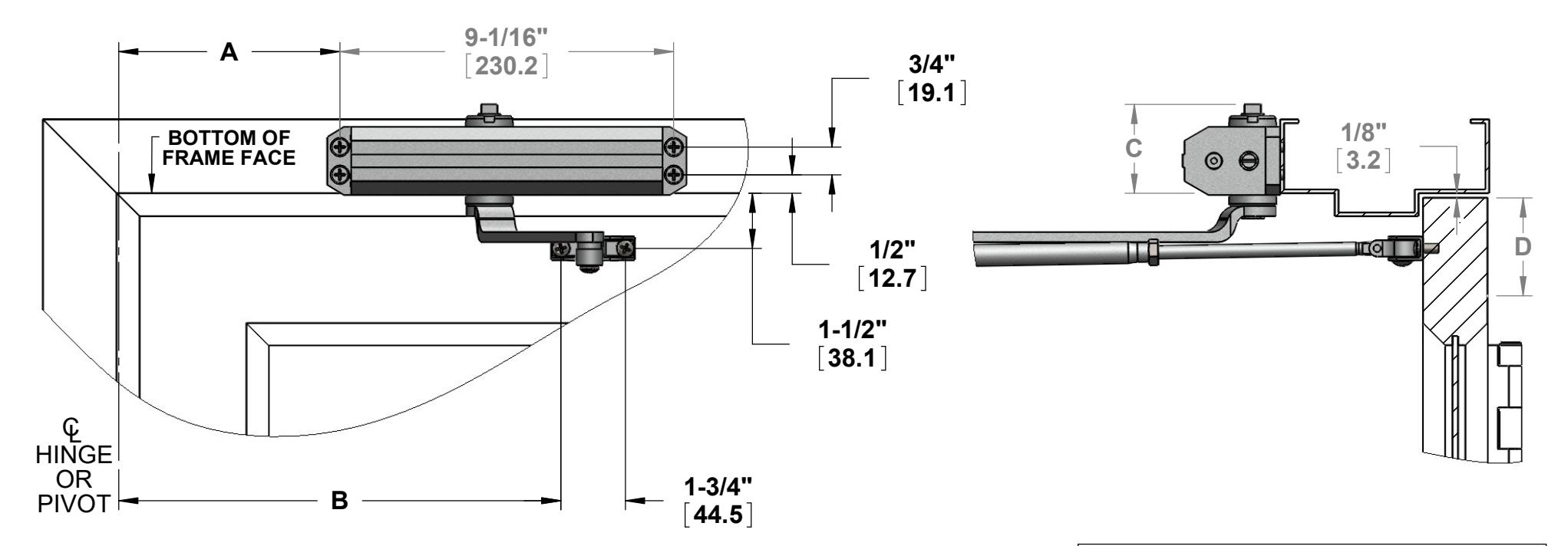

REGULAR ARM TOP JAMB INSTALLATION - PUSH SIDE NON-HOLD OPEN AND HOLD OPEN APPLICATIONS

Opening	Dim. A	Dim. B
To 100°	7-1/2" [190.5]	13-1/2" [342.9]
101° To 120°	6" [152.4]	12" [304.8]
121° To 180°	3-1/2" [88.9]	9-1/2" [241.3]

Dim. C
MIN. FRAME FACE TO MOUNT CLOSER	1-3/4" [44.5]
MIN. CEILING CLEARANCE TO END OF DUST CAP	2-1/2" [63.5]
MIN. CEILING TO (OPTIONAL) STREAMLINE COVER AND INSERT	2-5/8" [66.7]

Dim. D.
MIN. RAIL TO MOUNT NHO ARM	1-7/8" [47.6]
MIN. RAIL TO MOUNT HO ARM	2-1/8" [54]

REV. 1

TEMPLATE: 319302,

08-21-18

NOTES:

• 1. DRAWING IS NOT TO SCALE.
• 2. LEFT HAND DOOR SHOWN. FOR RIGHT HAND DOOR REVERSE IMAGE.
• 3. DIMENSIONS BASED ON 4-1/2" X 4-1/2" BUTT HINGES.
• 4. DOOR SWING MAY BE ALTERED DUE TO OTHER LIMITING CONDITIONS.
• 5. CAUTION: SEX NUTS MAY BE REQUIRED FOR UNREINFORCED DOORS OR COMPOSITE FIRE DOORS. CONSULT MANUFACTURER'S RECOMMENDATIONS.
• 6. HOLD OPEN ARMS CAN NOT BE USED ON LABELED FIRE DOORS.
• 7. ALWAYS CHECK PDQ WEB SITE FOR THE MOST RECENT REVISION AT WWW.PDQLOCKS.COM.

MACHINE SCREWS:

USE #7 OR 13/64" [5.11] DRILL AND 1/4-20 TAP

WOOD DOOR / FRAME SCREWS:

USE 5/32" [4] DRILL

SEX NUTS:

USE 3/8" [9.53] DRILL (FOOT TO DOOR)

PDQ Manufacturing 2230 Embassy Dr. Lancaster, PA 17603 833-273-7832 833-2 PDQTECH www.pdqlocks.com
