313 Ordering Guide – 313_Ordering_Guide-Rev3

Hager Companies	DATE:
139 Victor Street, St. Louis Mo 63104	CUSTOMER NAME:
Ph: (800) 325-9995 Fax: (800) 782-0149	PHONE NUMBER:
	FAX NUMBER:
	ACCT NUMBER:
	P.O.:

313S / 313L ANTI-VANDAL TRIM ORDERING FORM

* WE MUST HAVE THE FOLLOWING INFORMATION FILLED OUT TO PROCESS AN ORDER

**CUSTOMER MUST SUPPLY ALL NECESSARY TEMPLATES FOR MOUNTING EXIT DEVICES, MORTISE LOCKS, CYLINDERS, ETC.

					Fill out this section when using 313 Trim with an Exit Device or Mortise Lock
LN	QTY	Door	Trim Part #	CFC	Handing of	Mating Hardware Info		Door Type	Mullion Type	Hager Part #
		Thickness	(313S or 313L)	(Yes or No)	Trim *	Manufacturer	Hardware Part #	(Sgl or Pair)	(If Applicable)	(Internal Use Only!)
EX	#	1-3/4"	313L	Yes	LHR	Hager	4500	Pair	4900
EX	#	2"	313S	No	RHR	Hager	3880	Single
1
2
3
4
5
6
7

• Note 1: Cylinder cut-out (if applicable) will be 1-1/4" Diameter for Exit Device use, and 1-1/2" Diameter for Mortise Lock use. If special cut-out is needed, please contact customer service.
• Note 2: Cylinder does not come with trim, cylinder must be ordered separately.
• Note 3: Hager will provide a customized drawing of the trim for your approval based on the options you have chosen. Production will not begin until approval has been received.
• Note 4: It is necessary to provide Hager with a template of your Exit Device/Mortise Lock each time you order to ensure correct placement of cylinder cut-outs and attached mounting studs.
• Note 5: Make-To-Order items accepted by Hager are non-cancelable except with prior written consent from our St.Louis office. Approved cancellations may be subject to a service charge.
• Note 6: Under no circumstancs will non-stock, make-to-order, or discontinued product be accepted for return unless it is due to Hager error.

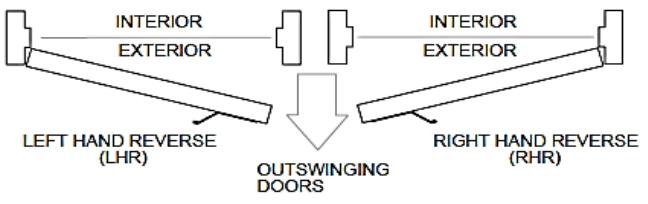

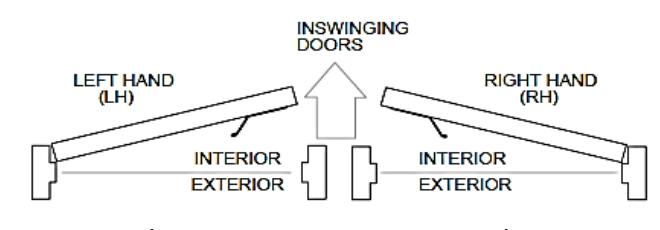

• Note 7: When choosing handing, list the handing of the trim, not the handing of the door. See chart below for help with handing. Dummy trim does not require handing.
• Note 8. 313L cannot be used on inswinging doors.

(MORTISE LOCK & EXIT DEVICE APPLICATION) (MORTISE LOCK APPLICATION ONLY)

Rev 3 Page 1 of 1
