3118 Classroom Deadbolt

Installation Instructions

Meets ANSI 156 5

1. DETERMINE HANDING

The Classroom Deadbolt is preset from the factor for a right hand door (RH or RHR). Follow these instructions to convert the deadbolt for a left hand door.

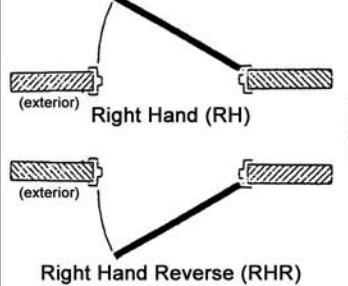

For RH or RHR. use the "gold" handing collar.

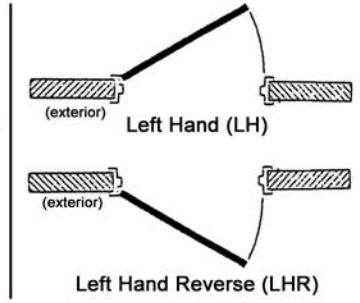

For LH or LHR. use the "black" handing collar.

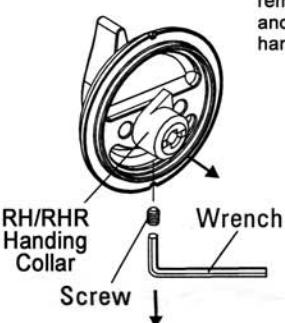

2. REMOVE RH/RHR HANDING COLLAR

Use hex wrench to remove set screw and RH/RHR handing collar.

3. INSTALL LH/LHR HANDING COLLAR

Maintain thumb turn in upward position and insert "black" handing collar.

Use hex wrench to securely tighten set screw in keyway located on the underside of stem.

LH/LHR Handing Collar

Wrench
