3114/3214 Double IC Cylinder & 3115/3118/3215 Single IC Cylinder
Supplemental Instruction

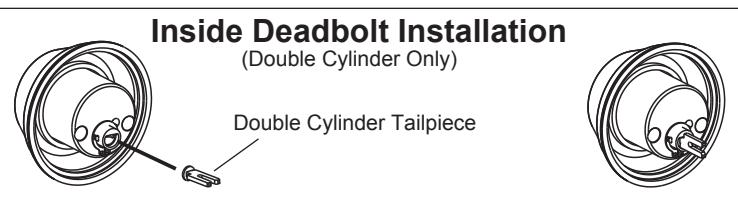

Load the tailpiece in the horizontal direction and turn 90 degrees to vertical position.
I-LS01025 REV-
