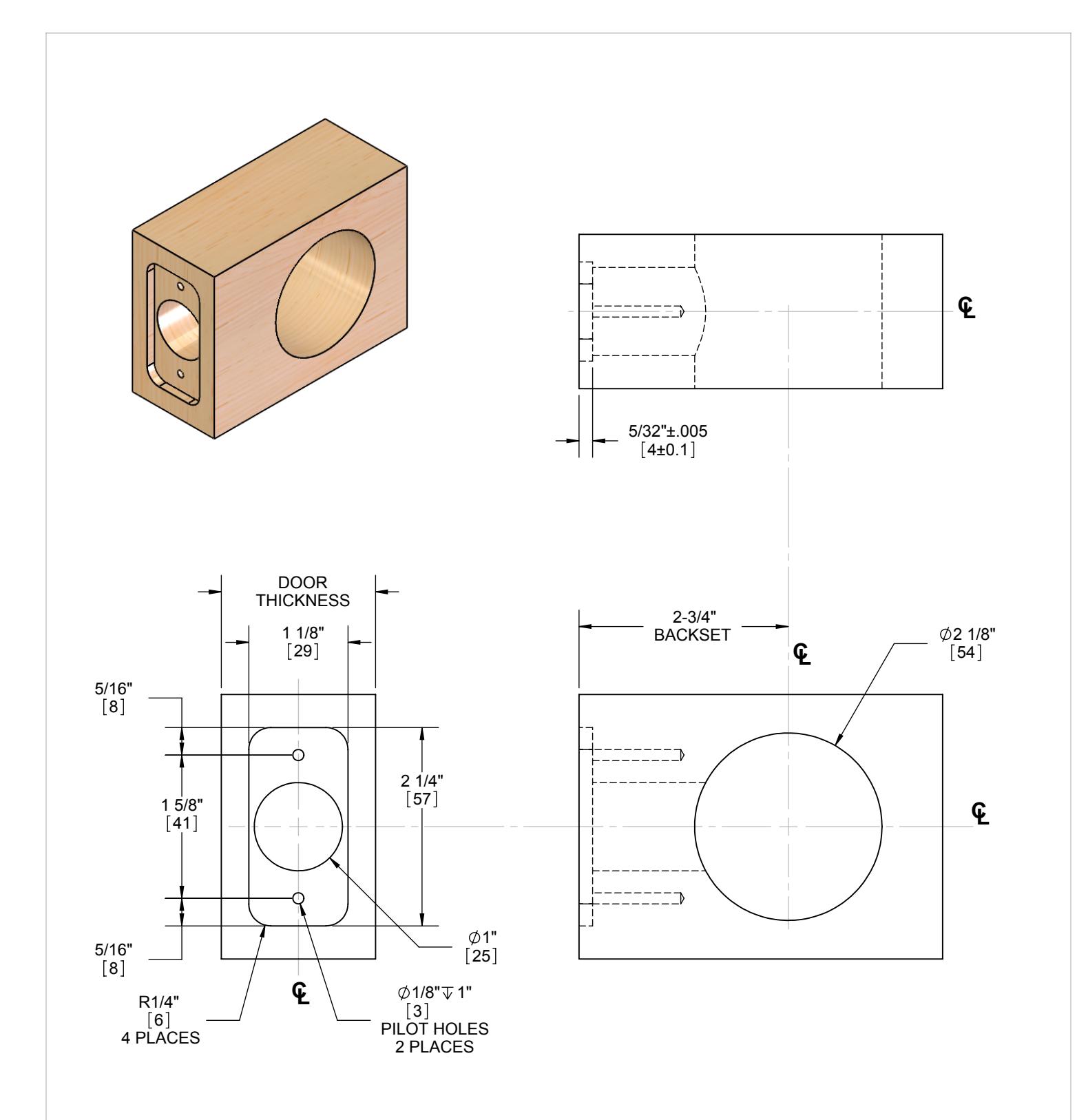

3100 Series RC Wood Door Template 2-3-4in Backset – T-LS00157-Rev06

DOOR TYPE: WOOD OR COMPOSITE, FLAT OR BEVELED

DOOR THICKNESS: 1 3/4"[45] - 2"[51]

FACEPLATE: 1/4"R, 1 1/8"[29] WIDTH

BACKSETS : 2 3/4"[70]

DIMENSIONS SHOWN IN BRACKETS [] ARE IN MILLIMETERS
