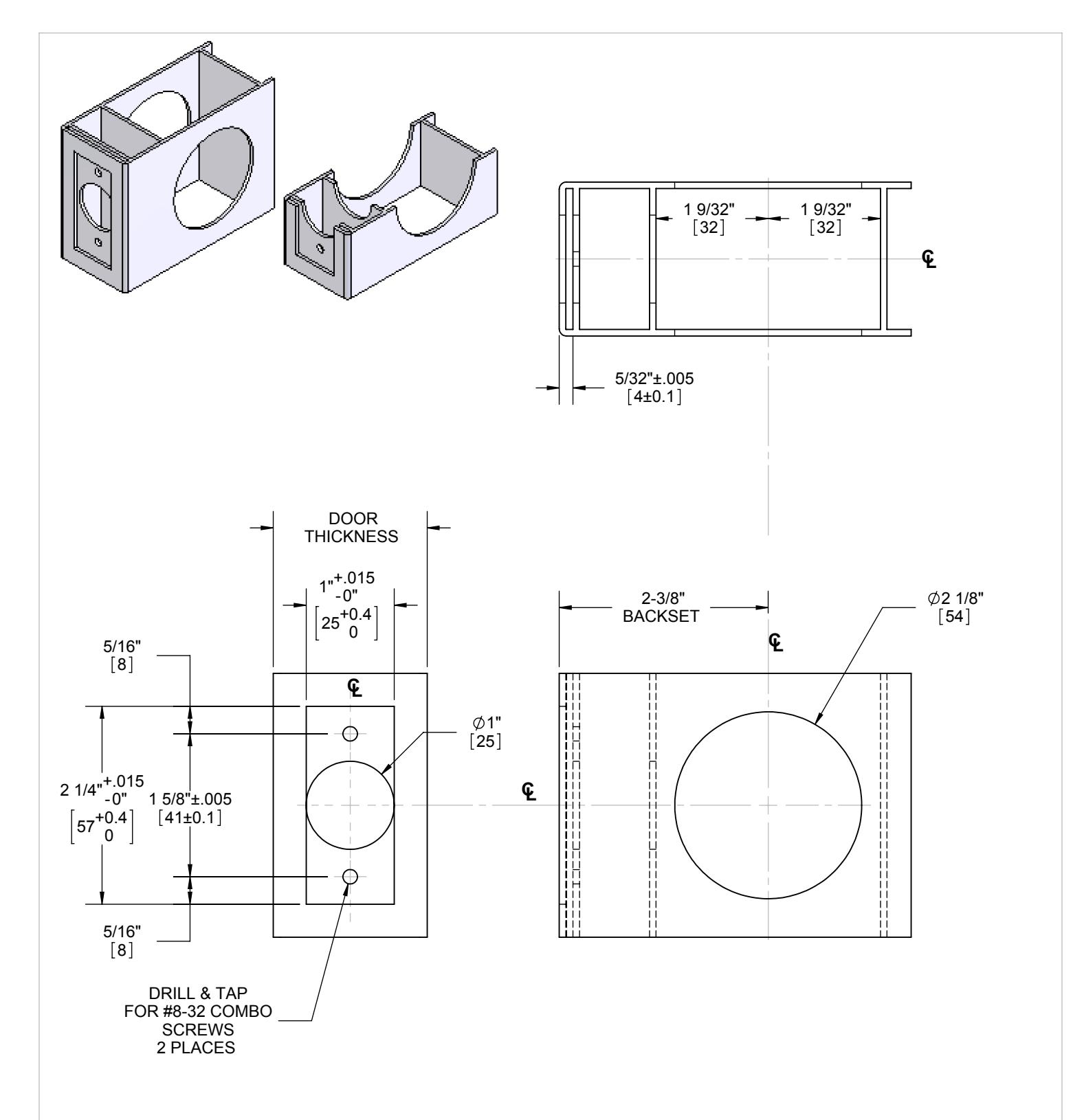

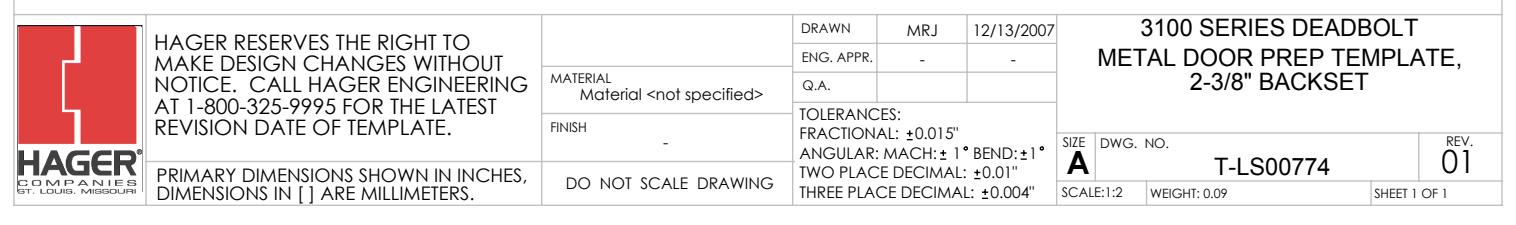

3100 Series Metal Door Template 2-3-8in Backset T-LS00774-Rev01

DOOR TYPE: METAL, FLAT OR BEVELED

DOOR THICKNESS: 1 3/4"[45] - 2"[51]

FACEPLATE: SQUARE 1"[25] WIDTH

BACKSETS : 2 3/8"[60]

DIMENSIONS IN [] ARE IN MILLIMETERS
