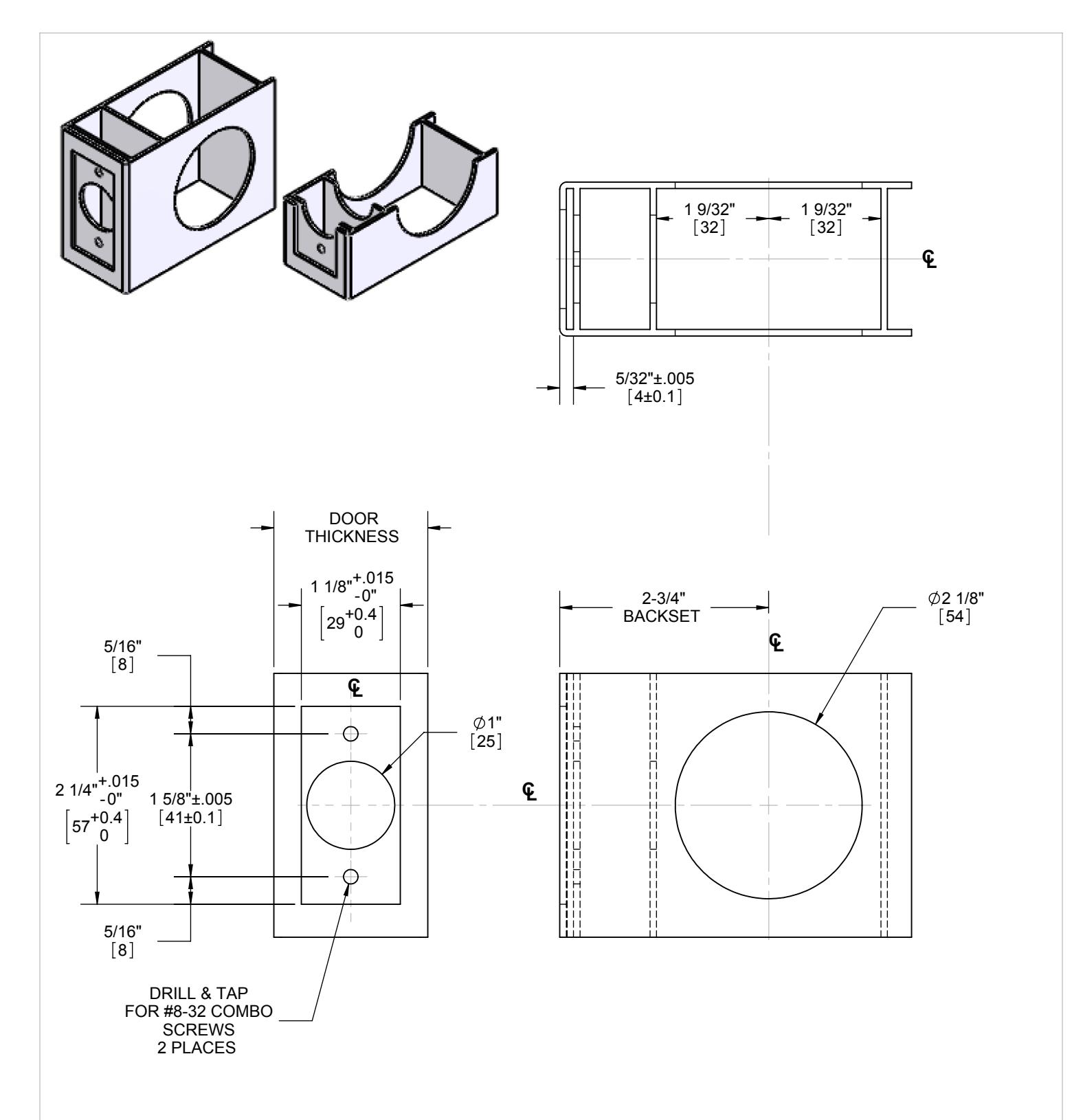

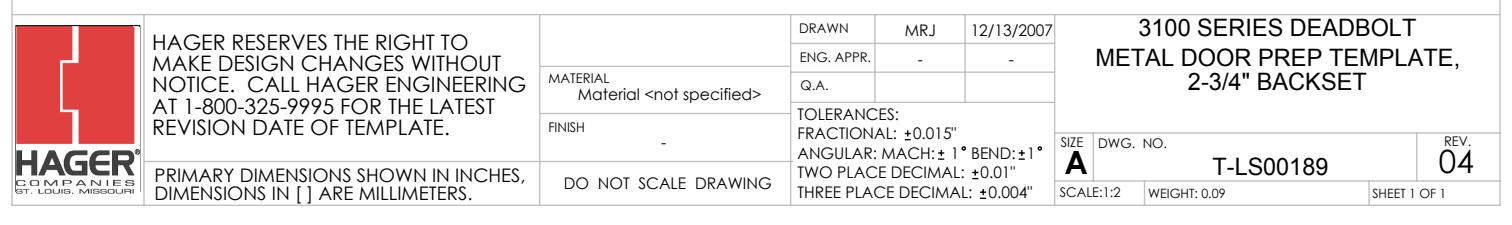

3100 Series Metal Door Template 2-3-4in Backset T-LS00189-Rev04

DOOR TYPE: METAL, FLAT OR BEVELED

DOOR THICKNESS: 1 3/4"[45] - 2"[51]

FACEPLATE: SQUARE 1 1/8"[29] WIDTH

BACKSETS : 2 3/4"[70]

DIMENSIONS IN [] ARE IN MILLIMETERS
