3000 Series Cylindrical Locks Specification Sheet
Open the original PDF document
View PDF
3000 SERIES
NON-CLUTCHED
- Non-clutched mechanism

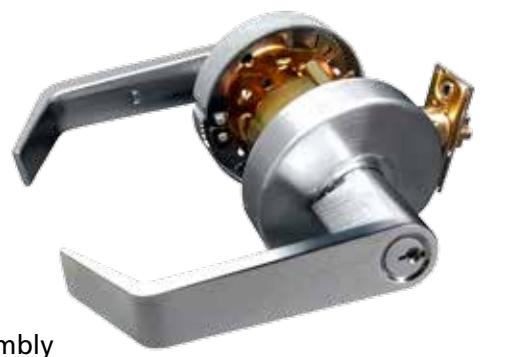

- 3000L (Lever)

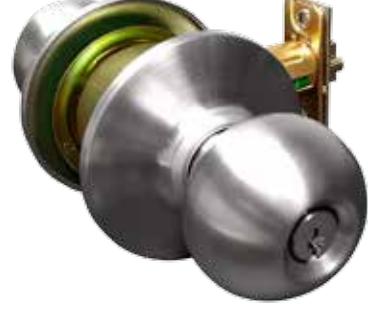

- 3000K (Knob)
- Heavy duty lever spring return rose assembly
- Bidirectional lever operation, non-handed
- Solid brass latch bolt
- Solid brass Schlage c pin keyway cylinder
- Meets Fire Code (California State Reference Code)
- UL and CUL Listed
- Five year warranty

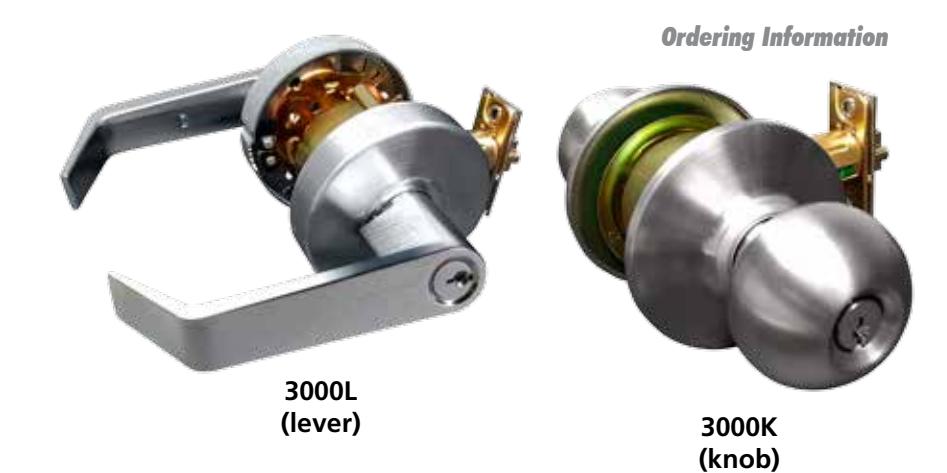

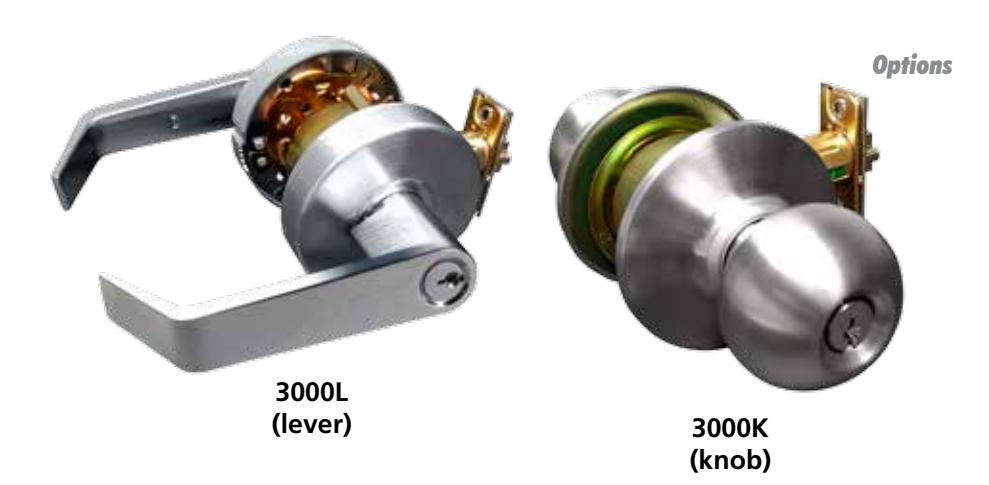

3000L (lever)
3000K (knob)
Grade 2 Cylindrical Locks
IDC 3000L locksets meet ADA requirments. Our 3000L and 3000K medium duty key-in locksets are designed to exceed the ANSI/BHMA A156.2 Grade 2 requirments.
| SPECIFICATION | ||||
|---|---|---|---|---|
| Application | For offices, schools, hospitals, apartments, hotels, motels and other public buildings | |||
| For Doors | 1 3 / 8 " to 1 3 / 4 " (35mm to 45mm) | |||
| Backset | 2 3 / 8 " (60mm) or 2 3 / 4 " (70mm) standard | |||
| Front | Brass, Bronze: 2 1 / 4 " X 1" standard. 2 1 / 4 " X 1 1 / 8 " optional Adjustable for Flat or Beveled doors 1 / 8 " in 2" | |||
| Strike | ST1 ANSI 1-1/4" x 4-7/8" (Standard) | |||
| Roses | Brass or Bronze | |||
| Hand | Universal, non-handed | |||
| Latch bolt | Brass. 1/2 " Latch bolt standard. Stainless steel, 1/2 "Latch bolt optional | |||
| Keys | Two Brass | |||
| Cylinder |
Brass Schlage C pin keyway standard
Weiser. Arrow. Lockwood C 4. Kwikset optional |
|||
| Masterkeying | Can be masterkeyed or grand masterkeyed. Construction key system available | |||
| Non-clutched | Non-clutched mechanism, free Wheeling not available. | |||
| Interchangable Core | Interchangeable core will accept compatible 6 or 7 pin cores with BEST or SARGENT | |||
| Finishes (US Code) | 626 (US26D) Satin Chrome and 613 (US10B) Oil Rubbed Bronze | |||
| Split Finishes | Outside finish specified first. Front & Strike finished to match inside trim unless otherwise specified | |||
| UL/CUL | Listed for use on fire doors (3 Hour Rated) | |||
West: 800-544-4422 • East: 800-225-6737
3000 SERIES GRADE 2 CYLINDRICAL LOCKS
NON-CLUTCHED
| FUNCTION | TRIM | IDC | ANSI | DESCRIPTION |
|---|---|---|---|---|
| LEVER | 10 | F75 | Passage or Closet Latch - Latch bolt operated by lever, from either side at all times | |
| LEVER | 40 | F76 |
Privacy, Bedroom or Bath Lock – Latch bolt operated by lever from either side.
Outside lever is locked by push button unlocked by emergency release outside, operating inside lever or closing door. |
|
| LEVER | 53 | F82 |
Entry Lock - Dead locking latch bolt operated by lever from either side except
when outside lever is locked by push or turn button. When outside lever is locked, operating key in outside lever or operating inside lever unlocks push button and retracts latch bolt. Closing door does not release push button. |
|
| LEVER | 70 | F84 |
Classroom Lock - Dead locking latch bolt operated by lever from either side except
when outside lever is locked from outside by key. When outside lever is locked latch bolt is operated by inside lever. |
|
| LEVER | 80 | F86 |
Storeroom or Closet Lock – Dead locking latch bolt operated by key in outside lever,
or by operating inside lever. Outside lever is always inoperable. |
|
| LEVER | 25 | F111 |
Exit or Communicating Passage Lock – Dead locking latch bolt operated by lever
one side only at all times. Non removable blank trim or no trim outside. |
|
| LEVER | 170 | Dummy Trim 1 Side - Used as door pull or as matching inactive trim | ||
| KNOB | 53 | F109 |
Entrance – Pushing turn-button in inside knob locks outside knob. Turning inside
knob or operating key in outside knob releases button automatically. Closing door does not release button. Button is fixed in the locked position by turning to horizontal position. |
|
| KNOB | 80 | F91 |
Double Cylinder - Deadlocking knob operated by either side. Key either locks or
unlocks both sides. |
|
| KNOB | 170 | F111 | Exit Non-Key – Blank knob plate outside. Inside knob always unlocked. |
GRADE 2 CYLINDRICAL LOCKS
3000 SERIES
NON-CLUTCHED
IDC Function
- 10 Passage
- 40 Privacy, Bedroom or Bath Lock
- 53 Entrance Lock
- 70 Classroom Lock
- 80 Storeroom
- 25 Communicating Passage Lock

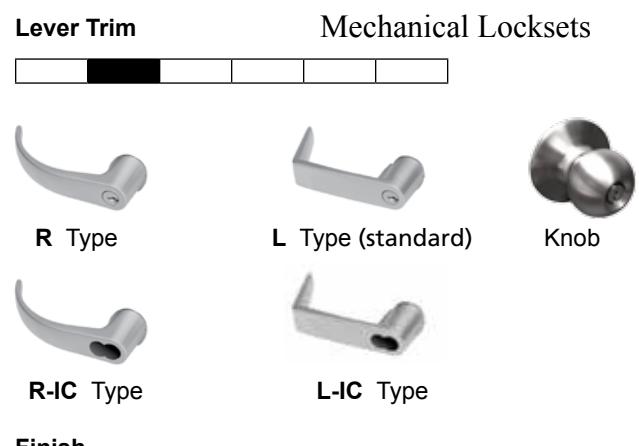

- 170 Dummy Trim, 1 Side, Eclipse
How to Specify
Q 626 Dull Chrome (std) H 613 Oil Rubbed Bronze

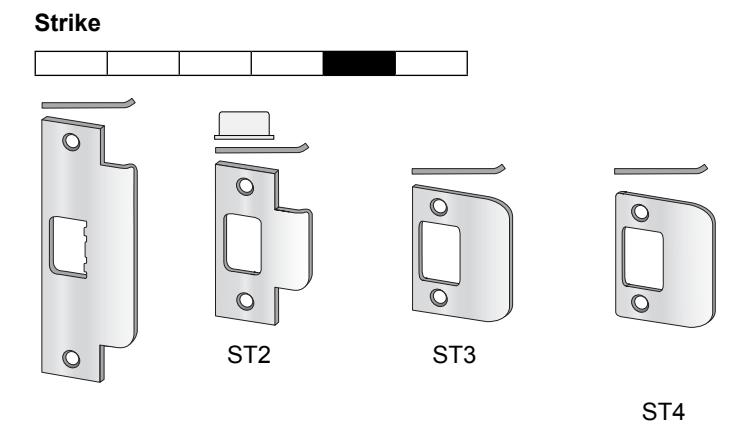

ST1 ANSI 1-1/4" x 4-7/8" (Standard)
ST2 T-Strike with dust box, ANSI 1-1/8" x 2-3/4"
ST3 Full lip strike, 1-5/8" x 2-1/4"
ST4 Full lip strike with round corners, 1-5/8" x 2-1/4"

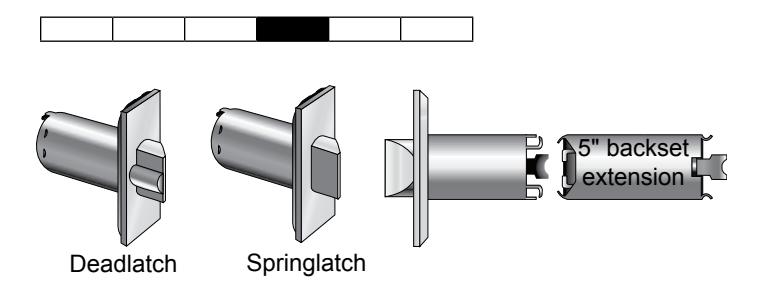

Latch bolt
B1 2-3/4" dead latch (standard)
B2 2-3/8" dead latch
B3 2-3/4" spring latch, passage (standard)
B4 2-3/8" spring latch, passage
B5 2-3/4" spring latch, privacy (standard)
B6 2-3/8" spring latch, privacy
International Door Closers, Inc. BE 5" backset extension, for use with 2-3/4" latch only
COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com
Cylinder or I-Cores
IDC Conventional Cylinders (Schlage 'C' Keyway Standard) For RIC or LIC Type
6PKA 6 PIN Keyed alike
6PKD 6 PIN Keyed different (standard)
IC
IDC Interchangeable Core (Best 'A' Keyway Standard) For RIC or LIC Type
IC6P-KA 6 pin I-Core, small format, keyed alike IC6P-KD 6 pin I-Core, small format, keyed different IC7P-KD 7 pin I-Core, small format, keyed different
IC7P-KA 7 pin I-Core, small format, keyed alike
