30-4 SERIES ELECTRIC STRIKE

Features

The IDC 30-4 Series electric strike is designed for use with rim mount exit devices having pullman type latchbolts or the top pullman latch of a surface vertical-rod exit device.

• · All stainless steel for corrosion resistance and strength
• Tamper resistant, heavy-duty construction
• · Set screws for adjustment lockdown
• · Milled ramps to better accommodate deadlatches

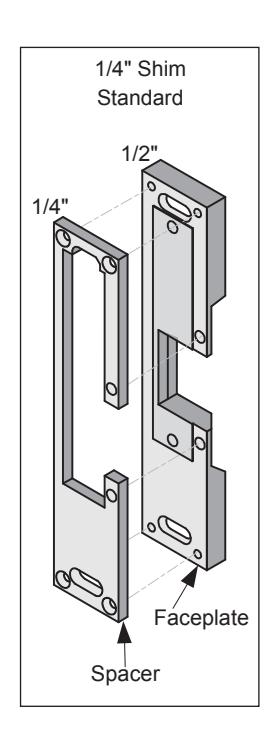

• Integrated shim for quick customization of faceplate thickness (3/4" to 1/2")
• · In-frame horizontal adjustability
• · Pullman keeper
• · Non-handed, reversible
• · Failsecure (standard) Failsafe (optional)
• ¾" keeper depth
• Static strength 1,500 lbs.
• · Dynamic strength 70 ft-lbs.

Model

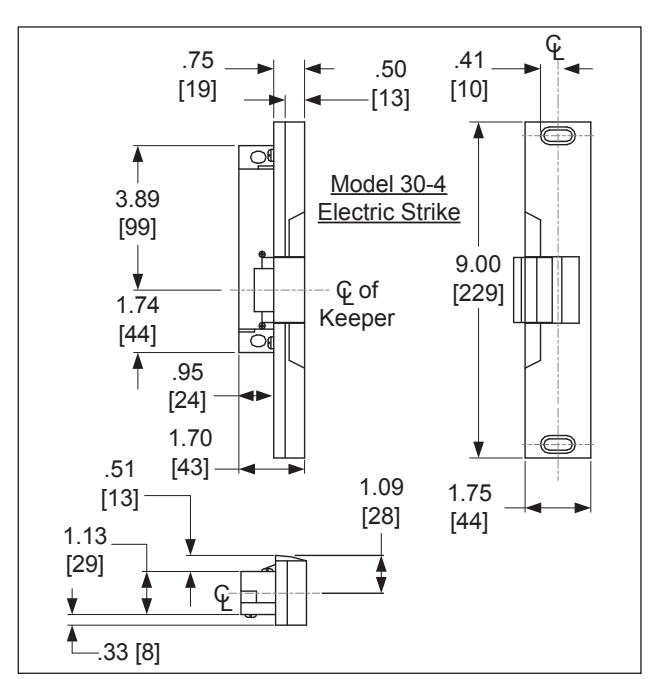

30-4 Electric Strike with 0.75" (19mm) faceplate. Except .5" (12.7mm) without 1/4" spacer.

Specifications

12 0.51 Amp @ 12VDC, 24 OHMS

24 0.25 Amp @ 24VDC, 96 OHMS

Finish

630 Stainless Steel (standard)

606 Dull Brass 625 Bright Chrome 612 Dull Bronze 626 Dull Chrome

613 Oil Rubbed Bronze 629 Bright Stainless Steel

Options

FS Failsafe operation LBM-30 Latchbolt Monitor LCM-30 Locking Cam Monitor BR64XL Rectifier for AC operation

Listings

• UL 10C, 3 hour fire-rated (fail secure only)
• UL1034, burglary-resistant rated
• ANSI/BHMA A156.31, Grade 1
• · CAN4-S104 (ULC-S104) fire door conformant
• DOD approved
• New York City accepted

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC

West: 800-544-4422 • East: 800-225-6737

www.intldoorclosers.com

UNI-FLEX™ SERIES MULTI-APPLICATION ELECTRIC STRIKE

UniFLEX™ 45 SERIES

UNIVERSAL ELECTRIC STRIKE

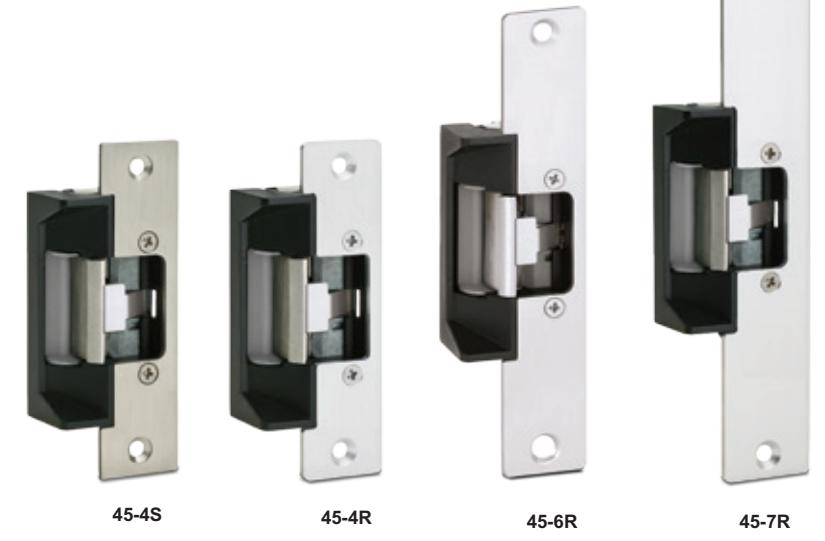

Uni-Flex™ Series Multi-Application Electric Strike

• Centerline Electric Strike

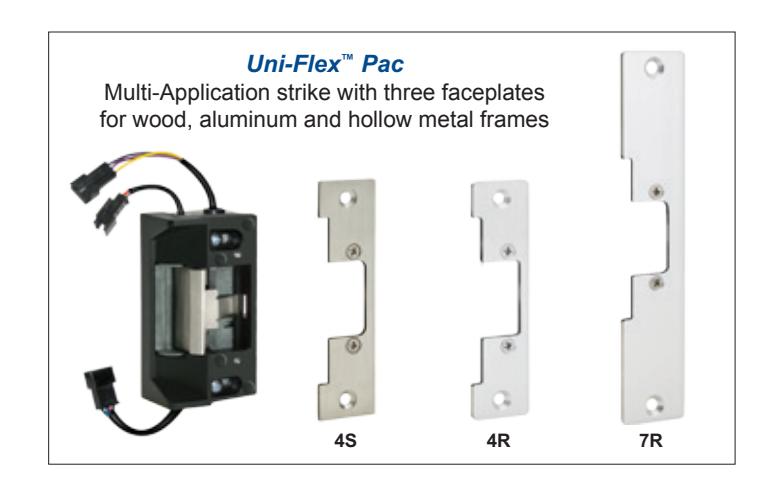

• 4 Interchangeable Application Faceplates
• Full Monitoring is Standard, Including: Latched and Unlatched Status Keeper Closed and Deadlocked or Unlocked
• Keeper Open Status Optional

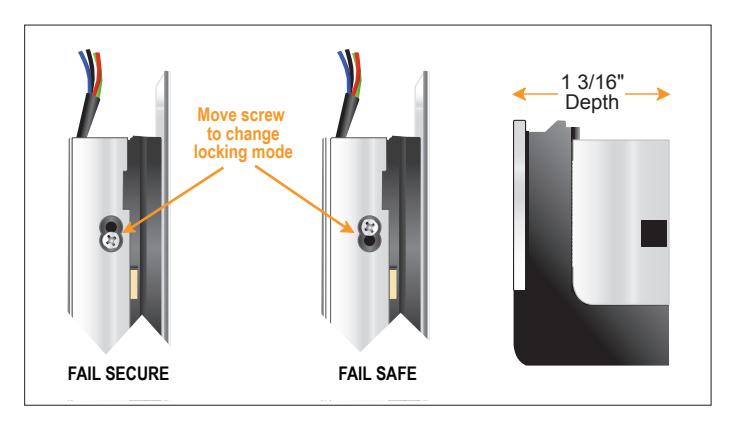

• Reversible Failsafe/Failsecure, no disassembly
• 1/4" Horizontal Alignment Adjustment
• Plated Architectural Finishes Available

The IDC Uni-Flex electric strike is designed for use with locksets with up to 3/4" latchbolts*. The quality construction makes the 45 series ideal for high traffic applications. The compact low profile design enables quick and easy installation where jamb space is limited.

Features

• For 5/8" latch or 3/4" latch with 1/8" door gap
• · Latch position status standard
• Keeper closed & deadlocked/unlocked status standard
• · Field selectable failsecure failsafe
• Field selectable voltage, 12/24V AC/DC
• ¼" Horizontal alignment adjustment
• Low profile, 1-3/16" deep
• · Plug-in wire connectors
• · Mounting tabs
• Non-handed
• All stainless steel parts with durable die cast body for corrosion resistance
• · Fewer moving parts for maximum life
• · Stainless steel standard with square corner faceplate
• · Aluminum standard with radius corner faceplate
• ANSI/ BHMA A156.31. Grade 2

US Patent: 7,540,542
