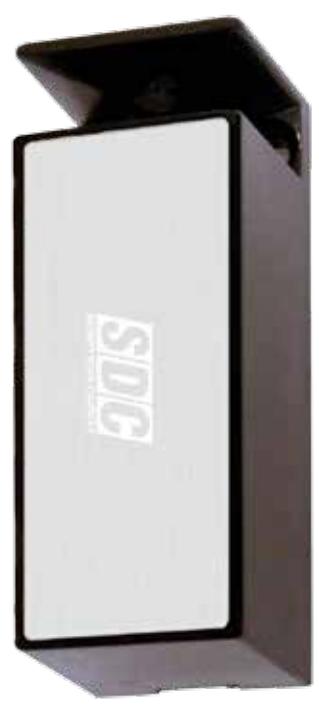

View PDF290 Micro Cabinet Lock
The 290 Micro Cabinet Lock is designed to electronically secure cabinets and drawers. The need for keys is eliminated and the addition of a keypad or remote control of your choice provides true access control and convenience of use.
FEATURES

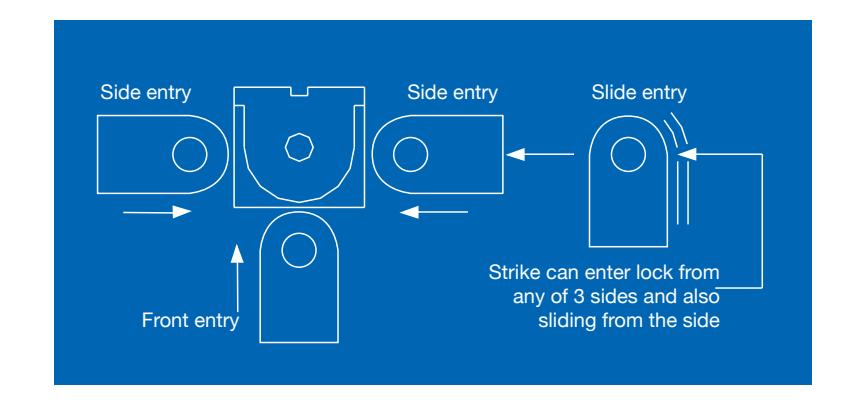

- For Swinging or Sliding Doors
- Failsecure Continuous Duty
- Field Reversible Solenoid for Failsafe Operation
- Dual 12/24VDC
- Nonhanded
- 600lbs of Holding Force
APPLICATION
- Pharmaceutical Cabinets and Drawers
- Retail Display Cases and Drawers
- Gun Cabinets
- File Cabinets
- Utility Cabinets and Drawers
- Museum Dsplay Cases
Dual Voltage 250/130mA @ 12/24VDC Dimensions 3-1/4"L x 1-1/8"W x 1-1/8D"
290 Micro Cabinet Lock
290LS Micro Cabinet Lock with Lock Status Switch
