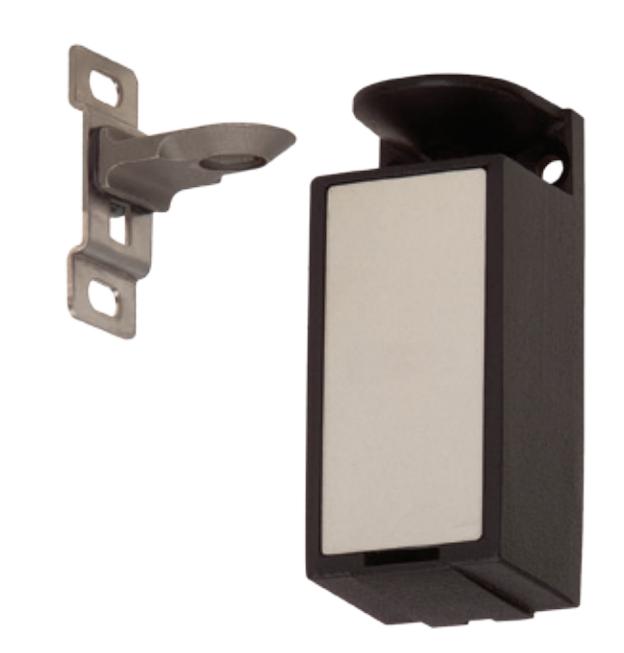

290 MICRO CABINET LOCK

Applications

The 290 Micro Cabinet Lock is designed to electronically secure cabinets and drawers. The need for keys is eliminated and the addition of a keypad or remote control of your choice provides true access control and convenience of use.

• Pharmaceutical cabinets and drawers
• Retail display cases and drawers
• Gun cabinets
• File cabinets
• Utility cabinets and drawers
• Museum display cases

Features

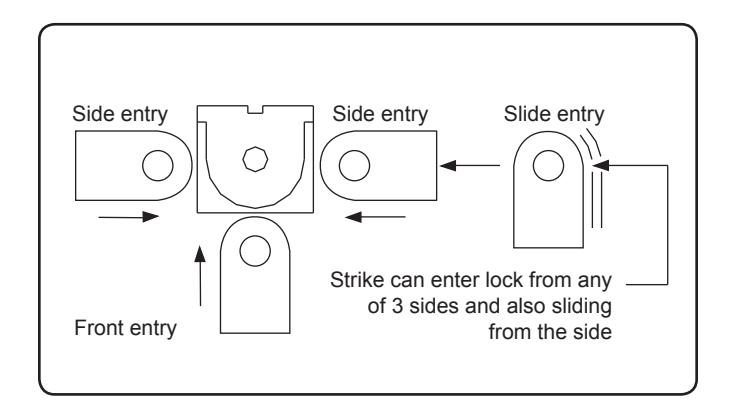

• For swinging or sliding doors
• Failsecure continuous duty
• Field reversible solenoid for failsafe operation
• Dual 12/24VDC
• Nonhanded
• 600lbs of holding force

Models

290 Micro cabinet lock

290LS Micro cabinet lock with lock status switch

Specifications

Dual Voltage 250-130mA @ 12/24VDC Dimensions 3.25"L x 1.125"W x 1.125D"

(82.5 x 28.5 x 28.5mm)

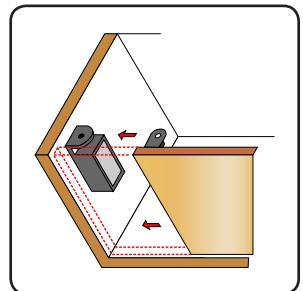

Drawer Sliding Door Swinging Door

International Door Closers, Inc.

West: 800-544-4422 • East: 800-225-6737
