281 Series x P3 Parallel Arm Application x 1546-1549 or 597-599 Holders & Stops

• 1. REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 & SDI-100, 12 GAUGE RECOMMENDED.
• 2. FOR 597-599 INSTALLATION, SEE TEMPLATES A7479 A7481
• 3. FOR 1546-1549 INSTALLATION, SEE TEMPLATES A7488 A7490
• 4. FOR THIN RAIL DOORS, USE 281-D DROP PLATE, SEE TEMPLATE A7244
• 5. 281-J COVER PLATE MAY BE USED WHEN CLOSER IS VISIBLE THROUGH GLASS PANELS.
• 6. LEFT HAND DOOR SHOWN, RIGHT HAND OPPOSITE.

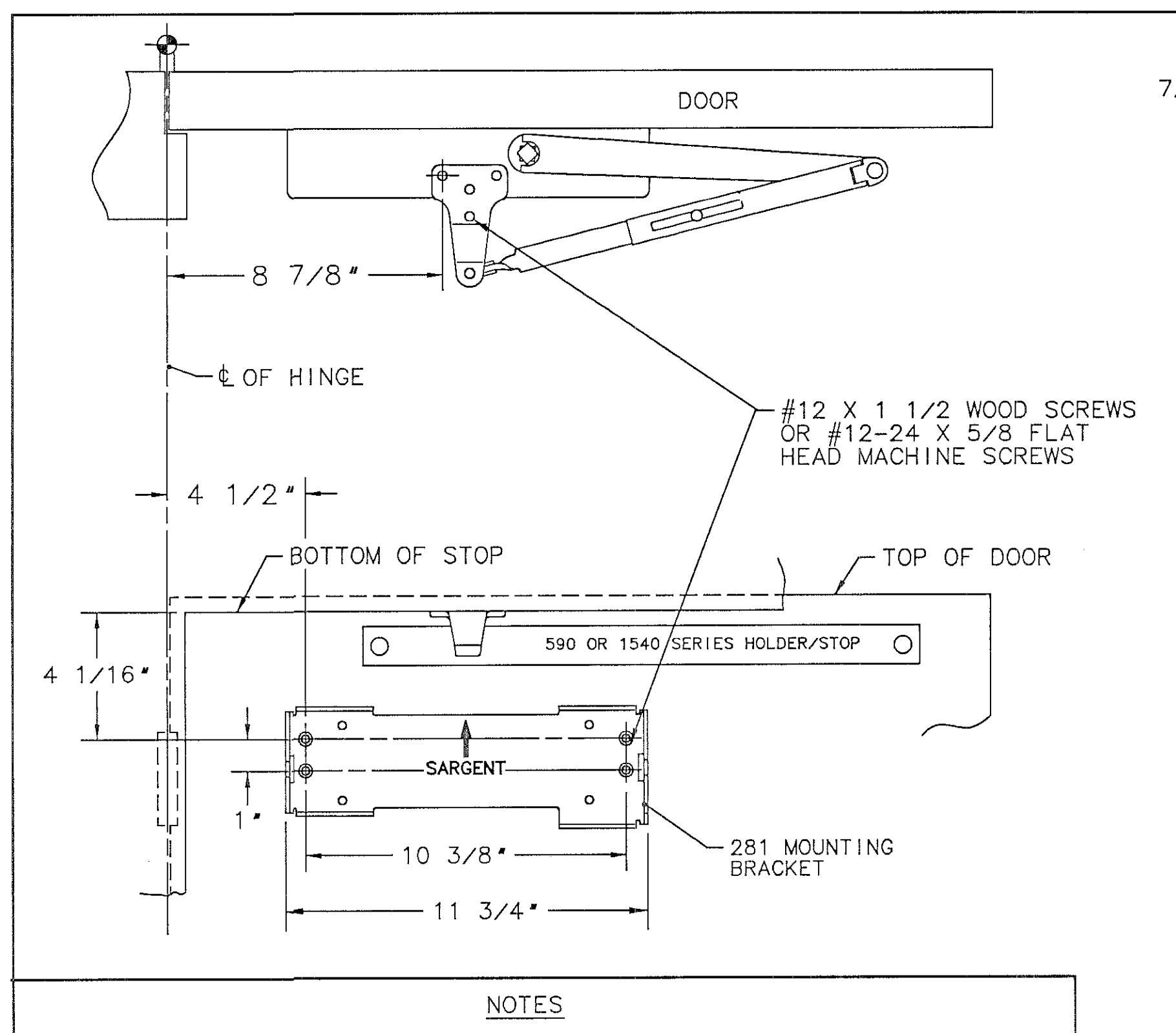

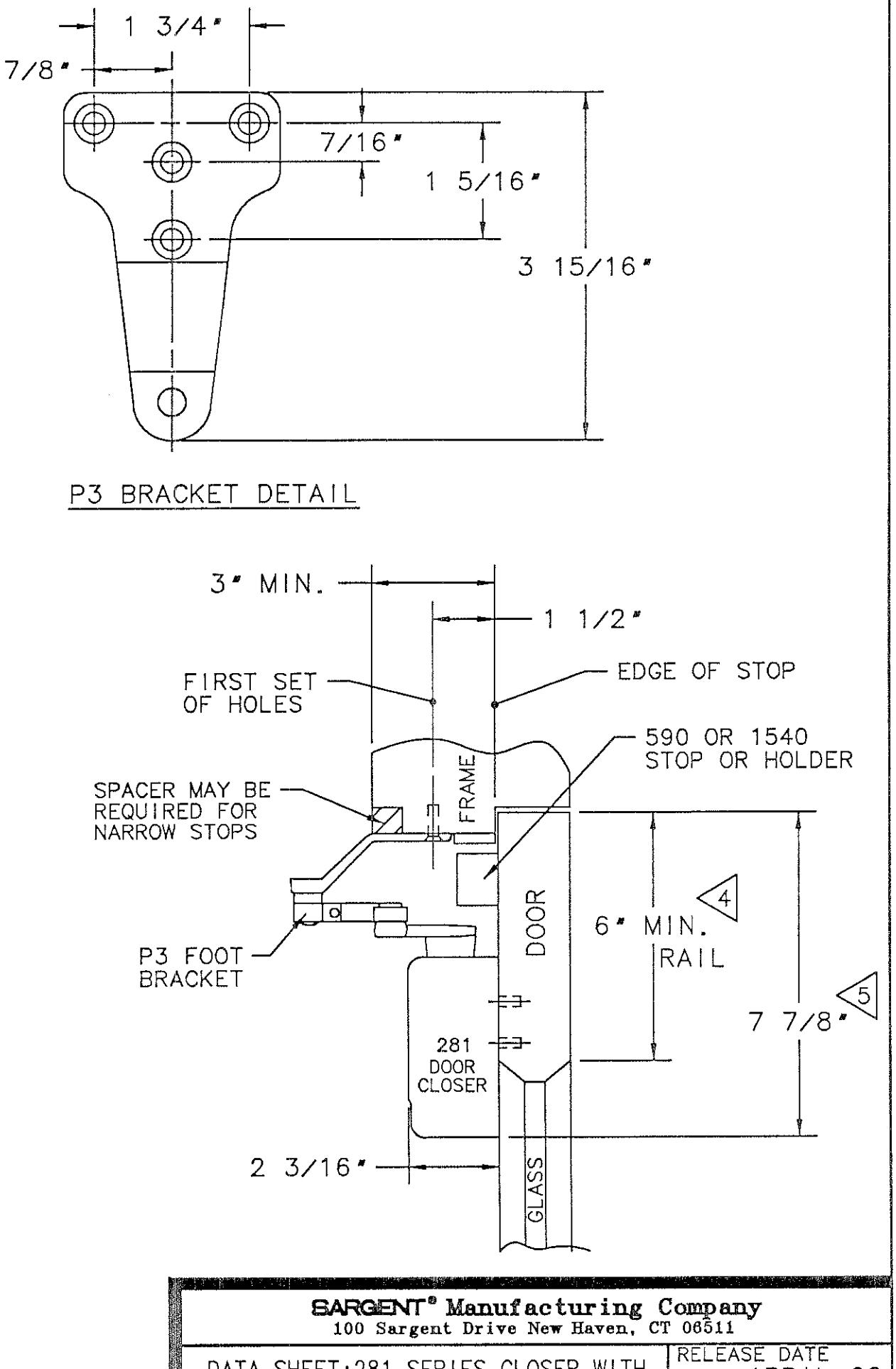

DATA SHEET: 281 SERIES CLOSER WITH A P3 PARALLEL ARM & 1546-1549 OR 597-599 SERIES HOLDER/STOP

APRIL 02 TEMPLATE NO.

A7516 B
