281 Series PSSPT Security (push side)
Open the original PDF document
View PDF

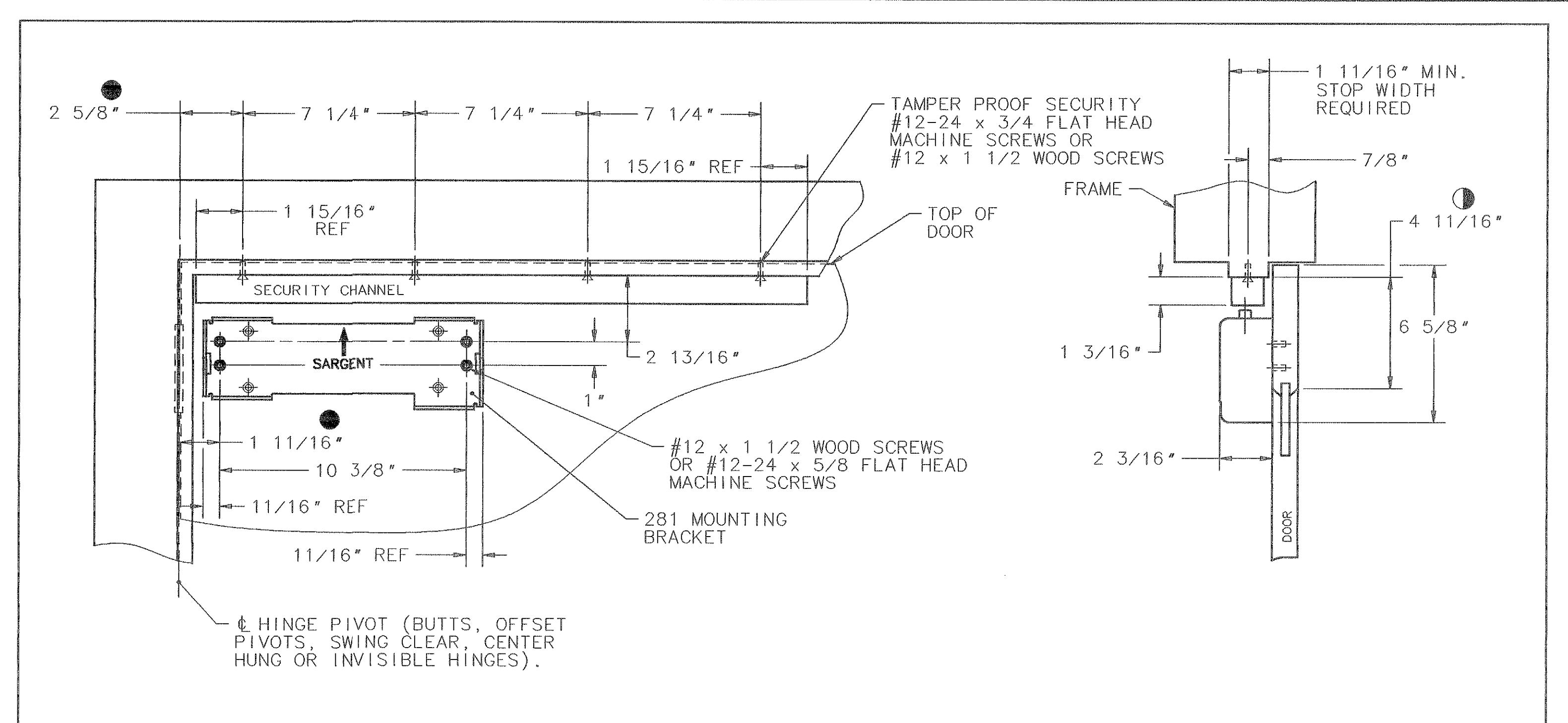

- SPACE REQUIRED TO MOUNT CLOSER ON TOP RAIL. IF SPACE IS LESS THAN SHOWN. USE 281-D DROP PLATE. SEE DATA SHEET A7244 FOR DETAILS.
- 3-T THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.
- 2-L LEFT HAND DOOR SHOWN. RIGHT HAND DOOR OPPOSITE.
- 12 GUAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS & FRAMES.
