281 Series Door Closer with O10 or H10 Heavy Duty Standard Arm

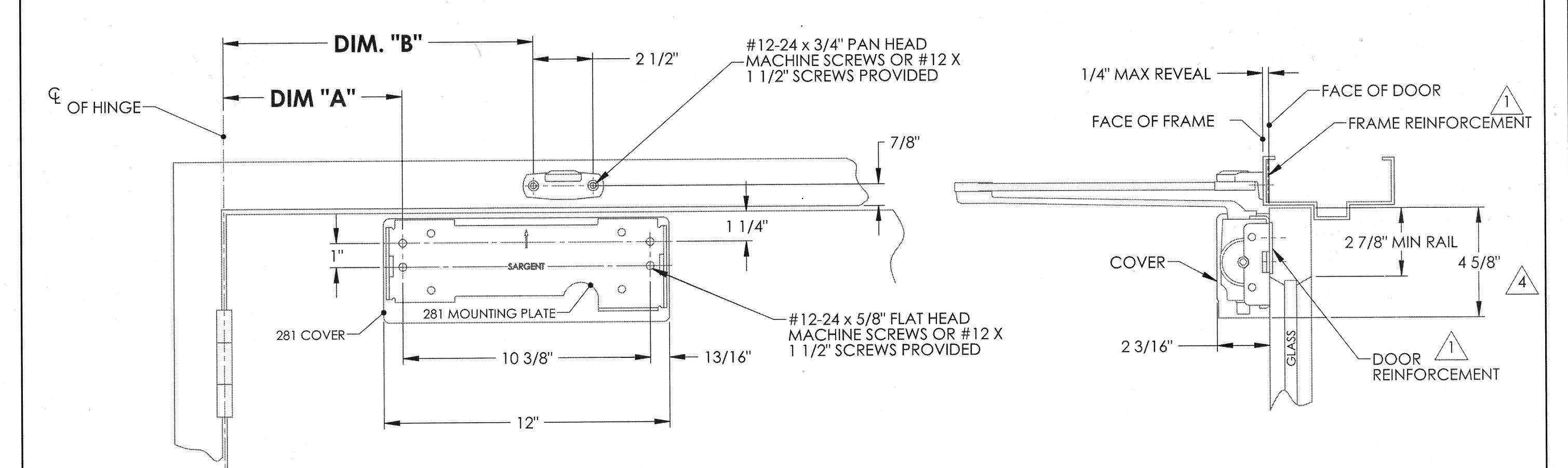

MOUNTING POSITIONS
MAX. DOOR OPENING	DIM. A	DIM. B
110	7 1/2"	15-1/2"
3 160°	4 1/2"	11 1/8"

NOTES

12 GAUGE MINIMUM REINFORCEMENT REQUIRED ON METAL DOORS AND FRAMES.

2. RIGHT HAND DOOR SHOWN, LEFT HAND OPPOSITE

DOOR WILL OPEN TO 180° IF CLOSER COVER DOES NOT INTERFERE WITH ADJACENT WALL

$\backslash searrow$ A 281-J PLATE MAY BE USED WHEN COVER IS VISIBLE THROUGH GLASS

SARCENT *Manufacturing Company 100 Sargent Drive New Haven, CT 06511

281 SERIES DOOR CLOSER WITH O10 OR H10 HEAVY DUTY STANDARD ARM

RELEASE DATE

FEB 3 2014 TEMPLATE NO. A7956 B
