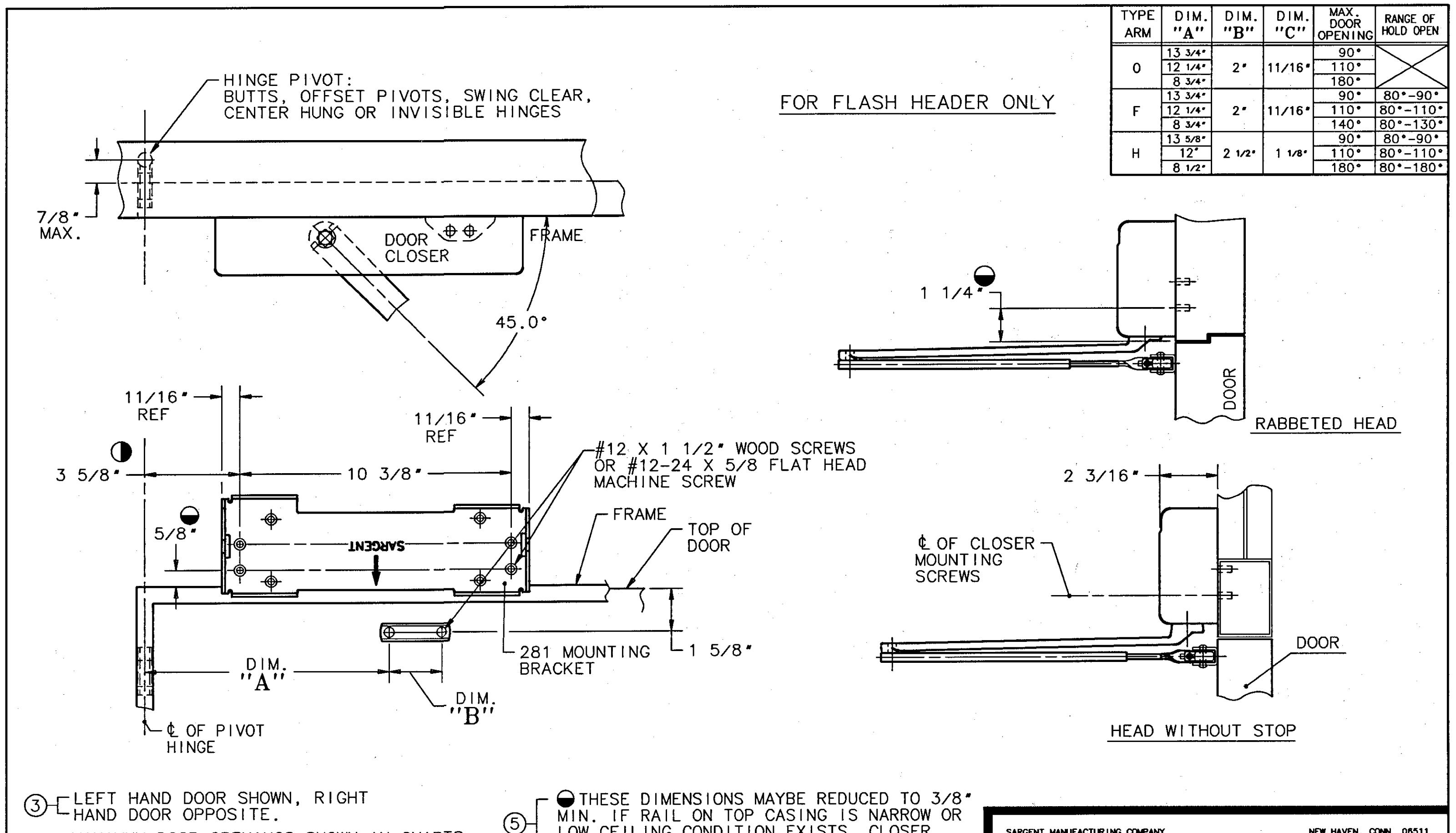

281 Series Door Closer with ‘O, H, F’ Arms for flash header (Top Jamb Application)

2-MAXIMUM DOOR OPENINGS SHOWN IN CHARTS APPLY TO DOORS UP TO 2 1/4" THICK ONLY.

12 GAUGE MIN. REINFORCEMENTS REQUIRED FOR METAL DOORS AND FRAMES.

THESE DIMENSIONS MAYBE REDUCED TO 3/8" MIN. IF RAIL ON TOP CASING IS NARROW OR LOW CEILING CONDITION EXISTS. CLOSER FOOT SHOULD BE MOVED ACCORDINGLY.

4 THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.

SARGENT MANUFACTURING COMPANY	NEW HAVEN, CONN. 06511
ATA SHEET: 281 SERIES CLOSER x TOP JAMB	JAN 00
PPLICATION - O, H & F ARMS OR FLASH HEADER	TEMPLET NO. A7428 A
