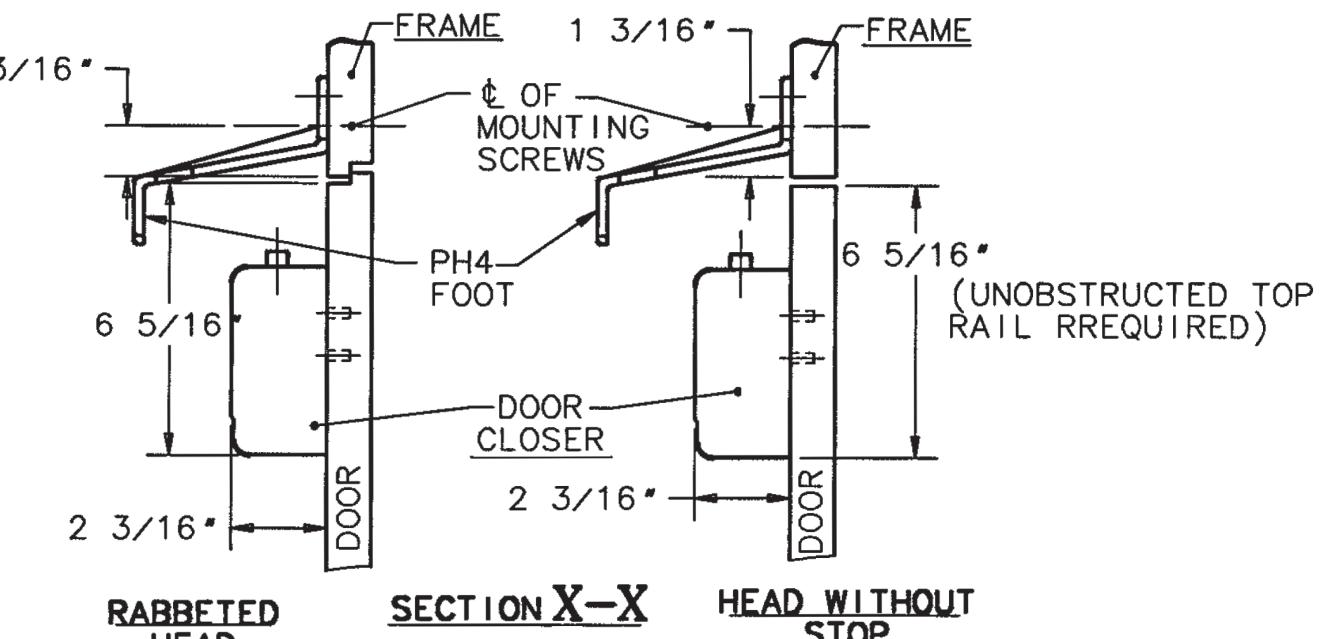

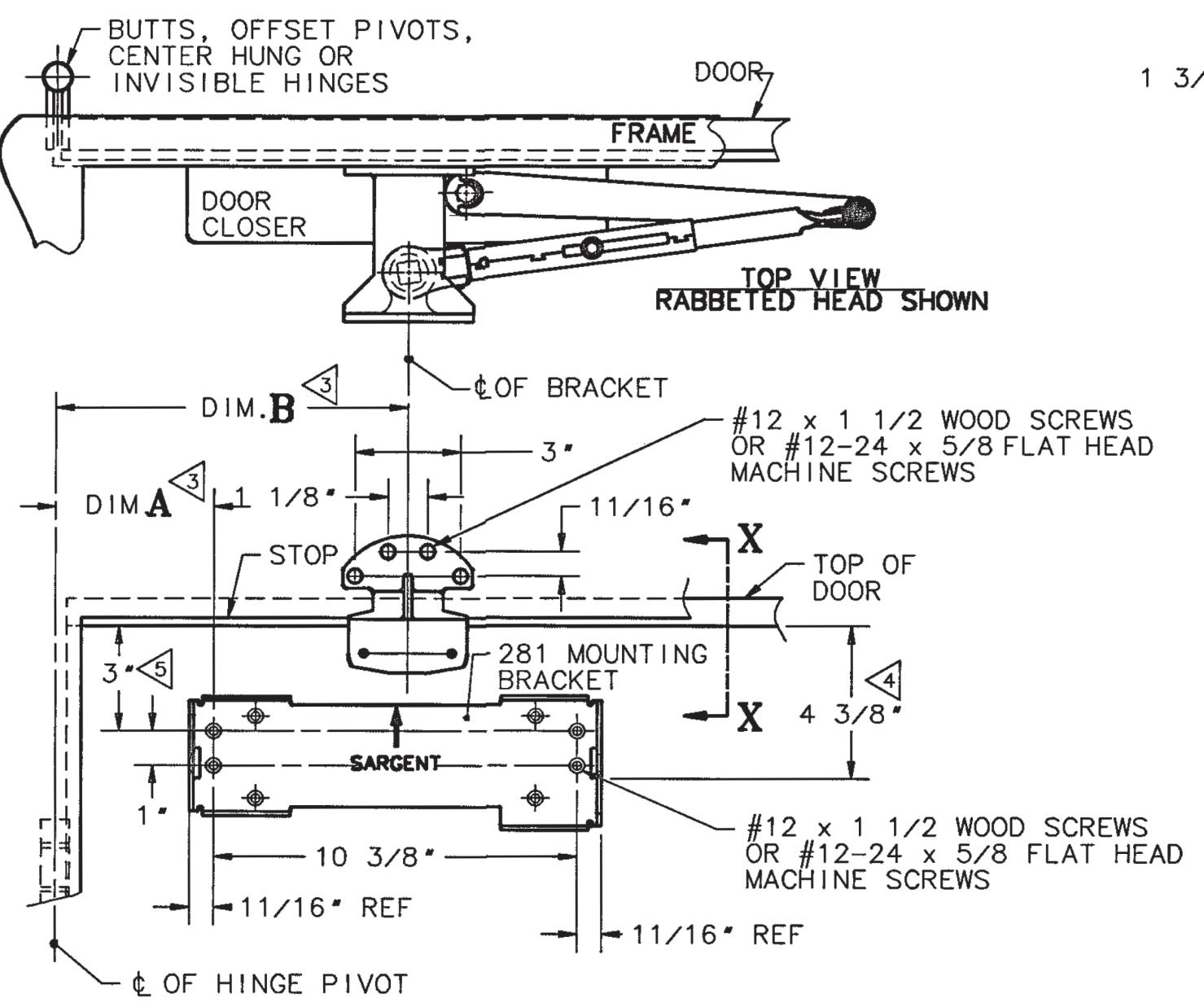

View PDFINSTALLATION INSTRUCTIONS FOR 281 SERIES CLOSURE AND PARALLEL ARMS APPLICATION
PH4 Arm
FOR INSTALLATION ASSISTANCE, CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com
| IMPORTANT: USE ALTERNATE MOUNTING IF DOOR CAN OPEN BEYOND LIMITS SHOWN FOR STANDARD MOUNTING | |||||||
|---|---|---|---|---|---|---|---|
|
ARM
TYPE |
DESCRIPTION | STANDARD MOUNTING | ALTERNATE MOUNTING | ||||
| DIM. |
MAX. DOOR
OPENING |
DIM. |
MAX. DOOR
OPENING |
||||
| PH4 |
90°-180°
HOLDER ARM |
4 1/2* | 10 1/2* | 110° | 1 5/8* | 7 5/8° | 180° |
