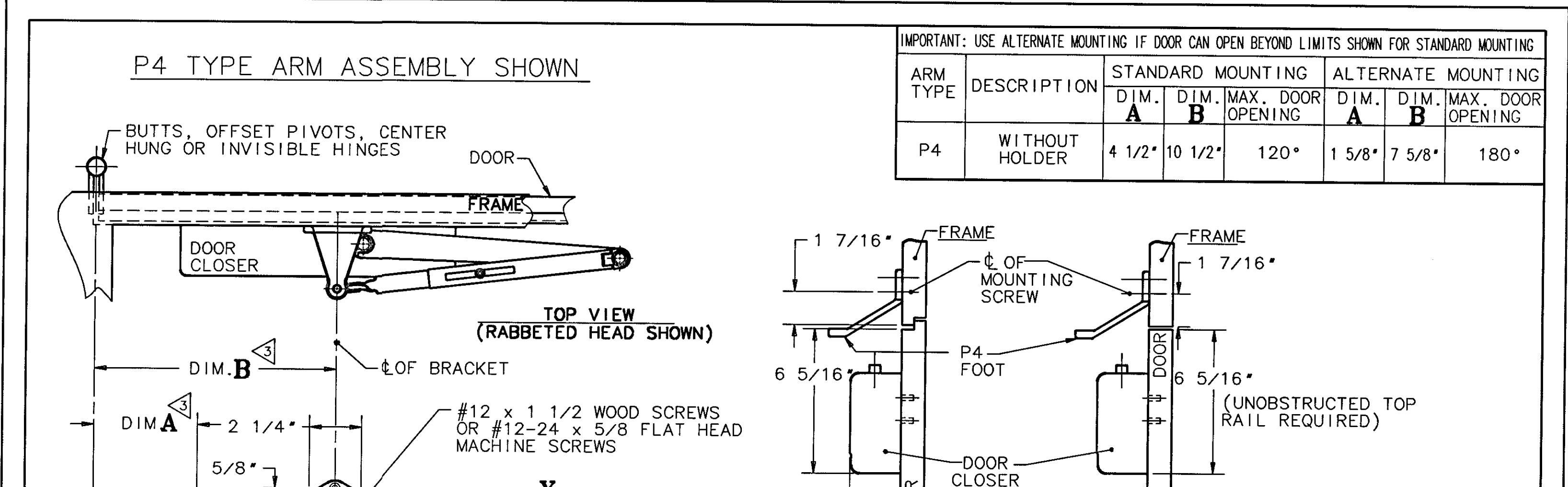

281 Series Closer x P4 Parallel Arm Application

2 3/16*

RABBETED

HEAD

SECTION X-X

HEAD WITHOUT

STOP

SARGENT MANUFACTURING COMPANY

DATA SHEET: 281 SERIES

CLOSER x PARALLEL ARM

APPLICATION-P4 ARM

IF DOOR CLOSER BODY INTERFERES WITH A DOOR LIGHT KIT, USE 281-B MOUNTING

PLATE. PLATE TO BE MOUNTED INVERTED, -SEE DATA SHEET A7242 FOR DETAILS.

-SPACE REQUIRED TO MOUNT CLOSER

SHOWN USE 281-D DROP PLATE.

3-THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.

12 GAUGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS & FRAMES.

NEW HAVEN, CONN. 06511

JAN 2000

A7228 B

EFFECTIVE DATE

TEMPLET NO.

2- LEFT HAND DOOR SHOWN. RIGHT HAND DOOR OPPOSITE.

ON RAIL. IF SPACE IS LESS THAN

-SEE DATA SHEET A7244 FOR DETAILS.

-STOP 🕶

281 MOUNTING

BRACKET

6" REF.

11/16 REF

LOF HINGE PIVOT

-SARGENT

10 3/8 " -

11/16" REF --

- TOP OF

DOOR

4 3/8

MACHINE SCREWS

#12 x 1 1/2 WOOD SCREWS

ÖR #12-24 x 5/8 FLAT HEAD
