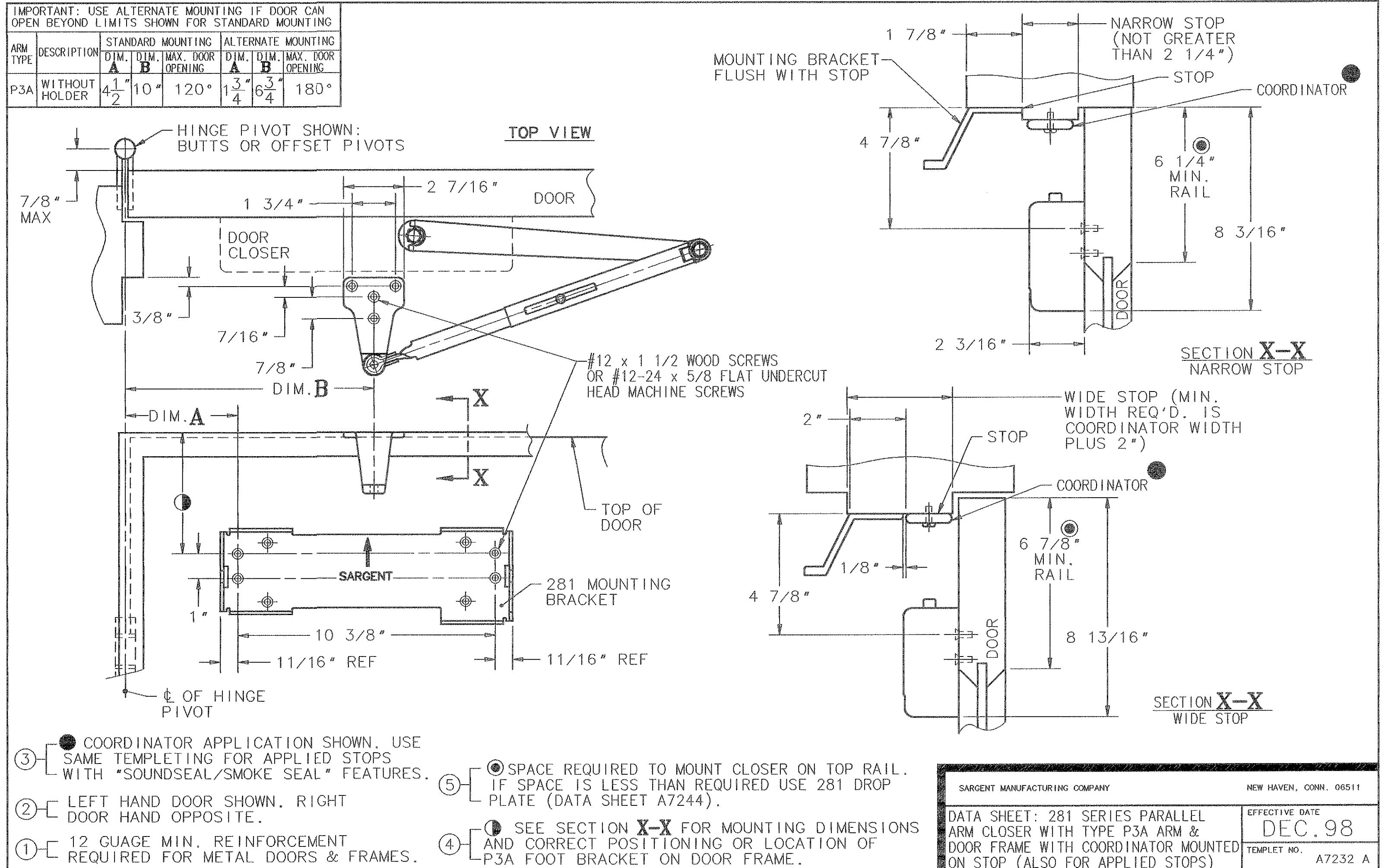

281 Series Closer x ‘P3A’ Parallel Arm & Door frame w Coordinator Mounted on Stop
Open the original PDF document
View PDF
_ 12 GUAGE MIN. REINFORCEMENT
THEOUIRED FOR METAL DOORS & FRAMES.
ARM CLOSER WITH TYPE P3A ARM & DOOR FRAME WITH COORDINATOR MOUNTED TEMPLET NO. ON STOP (ALSO FOR APPLIED STOPS) A7232 A
