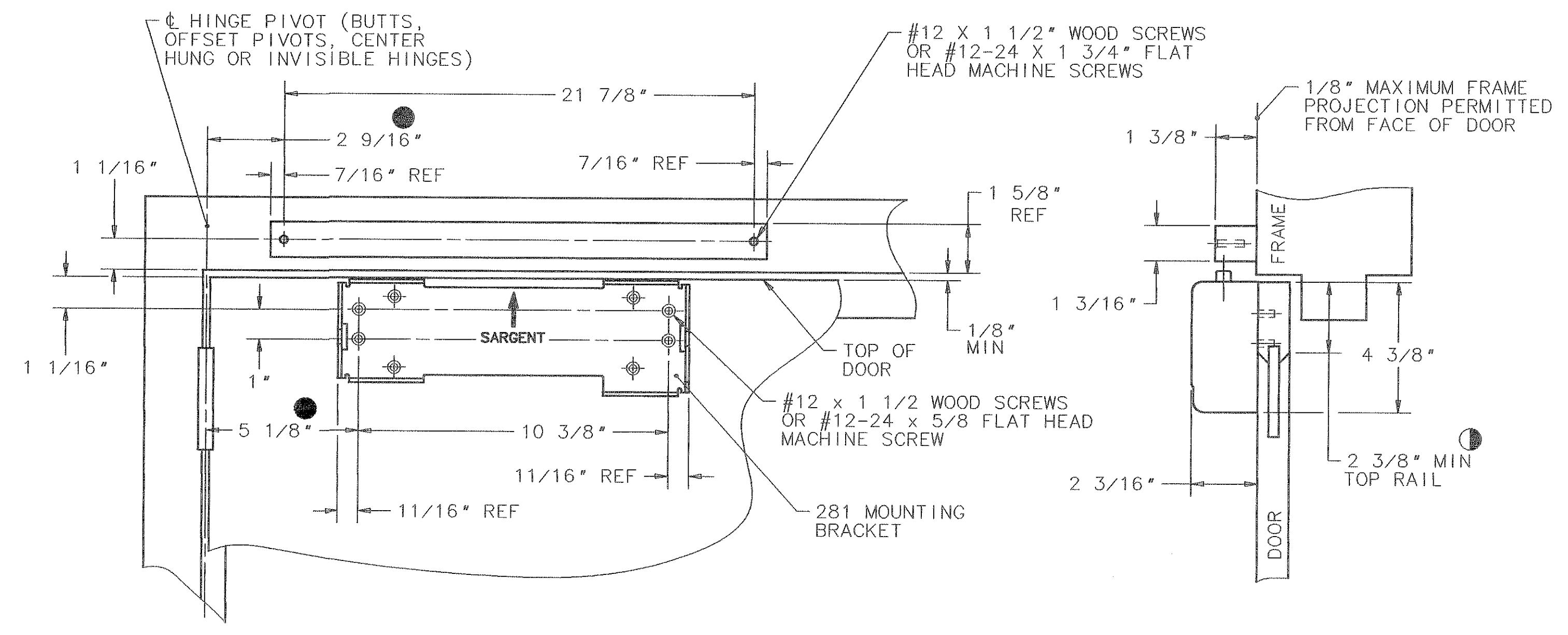

281 Series Closer x ‘OT & HT’ Track Type Arm Application (pull side mounting)

• THIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.
• 2- RIGHT HAND DOOR SHOWN. LEFT HAND DOOR OPPOSITE.
• 12 GUAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS AND FRAMES.

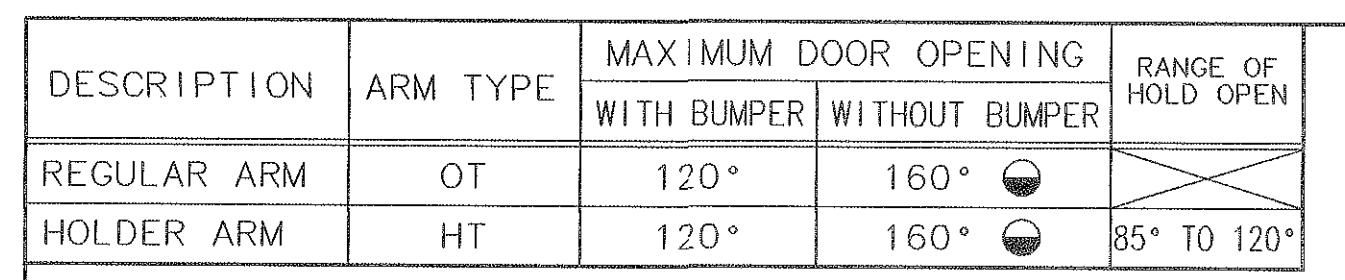

• 5)-F BUTT FRAME AND WALL CONDITIONS PERMIT, CLOSER WILL ALLOW DOOR TO OPEN 180°.
• SPACE REQUIRED TO MOUNT CLOSER ON RAIL. IF SPACE IS LESS THAN SHOWN USE 281-D DROP BRACKET. SEE DATA SHEET A7244 FOR DETAILS.

SARGENT MFG. COMPANY

NEW HAVEN, CONN. 06511

DATA SHEET: 281 SERIES CLOSER TRACK TYPE APPLICATION (PULL SIDE MOUNTING) OT AND HT ARMS

DEC. 98

A7205 A
