281 Series Closer x ‘OD & HD’ Double Egress Arms (Track Type Application)
Open the original PDF document
View PDF

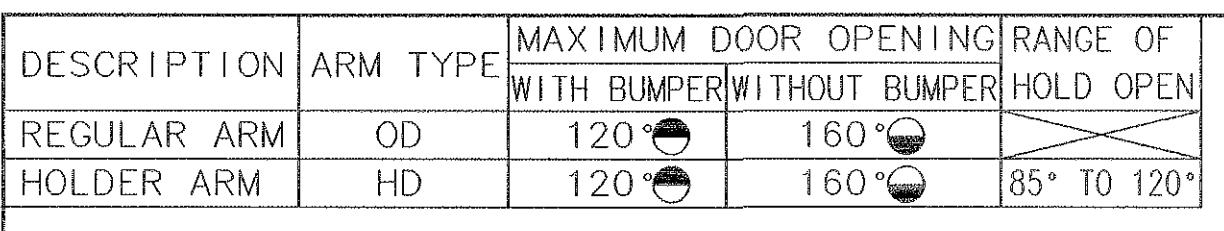

NOTES:

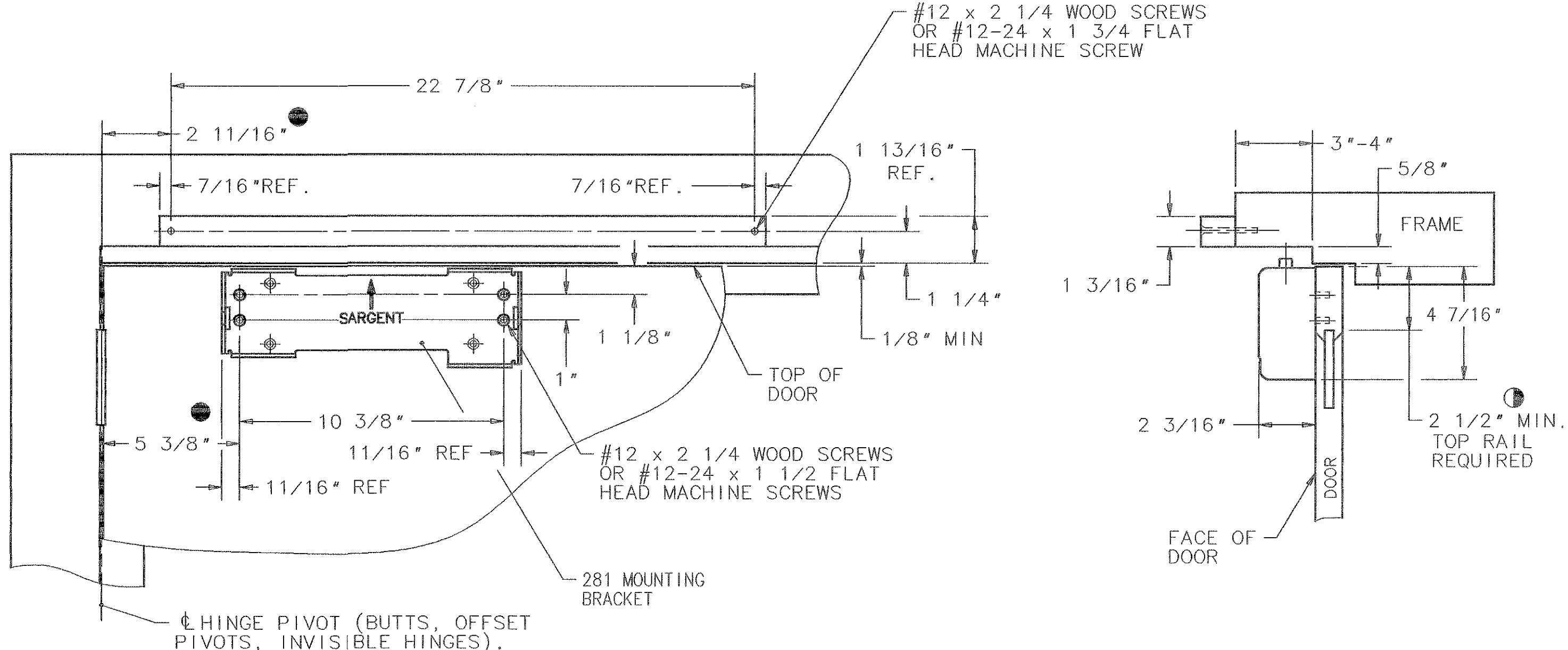

- 1. RIGHT HAND DOOR SHOWN, LEFT HAND DOOR OPPOSITE.
- 2. 12 GAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS AND FRAMES.
