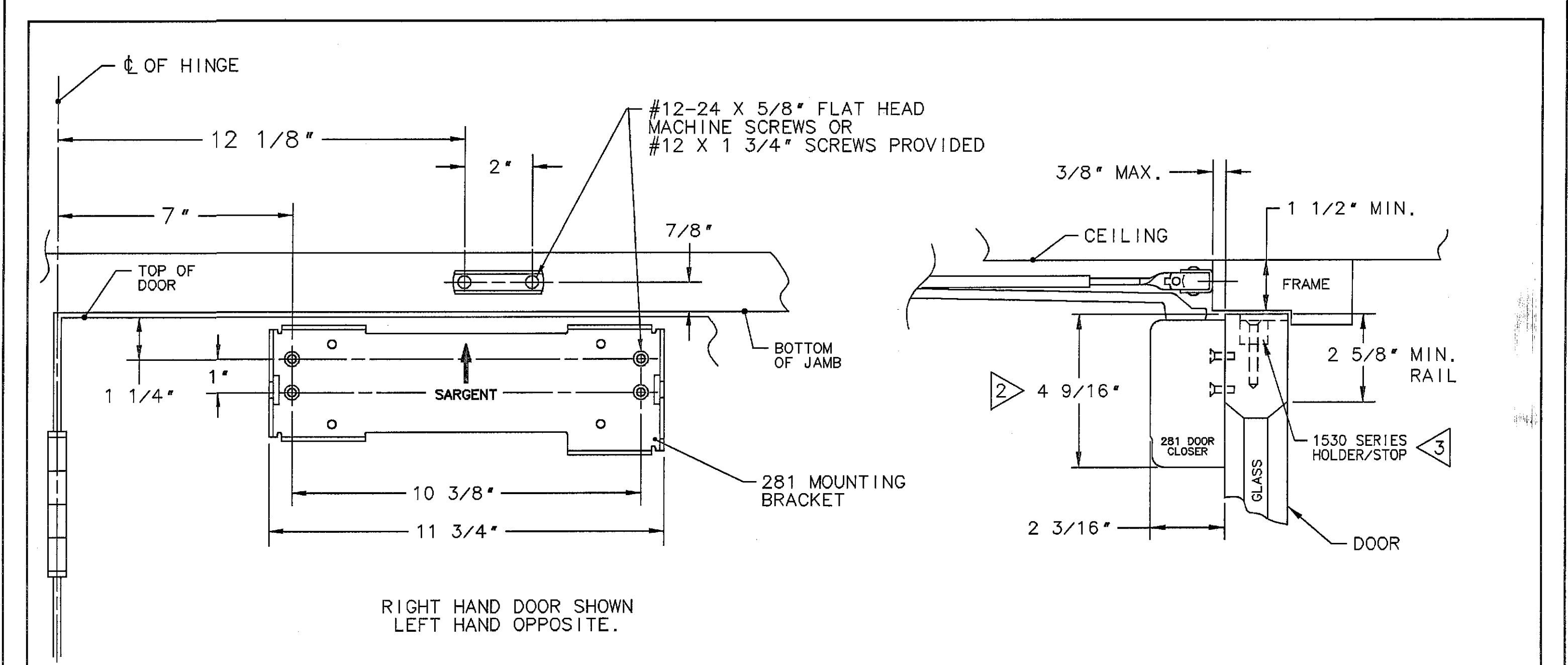

281 Series Closer x ‘O’ Standard Arm Application x 1536-1539 Series Holders & Stops

NOTES:

• 1. REINFORCE METAL DOORS AND FRAMES PER ANSI A250.8 AND SDI-100 STANDARDS, 12 GAUGE RECOMMENDED.
• 2>281-J COVER PLATE MAY BE USED WHEN CLOSER IS VISIBLE THROUGH GLASS
• 3 FOR 1530 INSTALLATION, SEE TEMPLATES A7485 A7487

SARGENT^® Manufacturing Company 100 Sargent Drive New Haven, CT 08511

DATA SHEET: 281 DOOR CLOSER WITH STANDARD APPLICATION O ARM & 1530 SERIES HOLDER OR STOP

FFFECTIVE DATE 18 DEC 03

TEMPLATE NO. A7511 A
