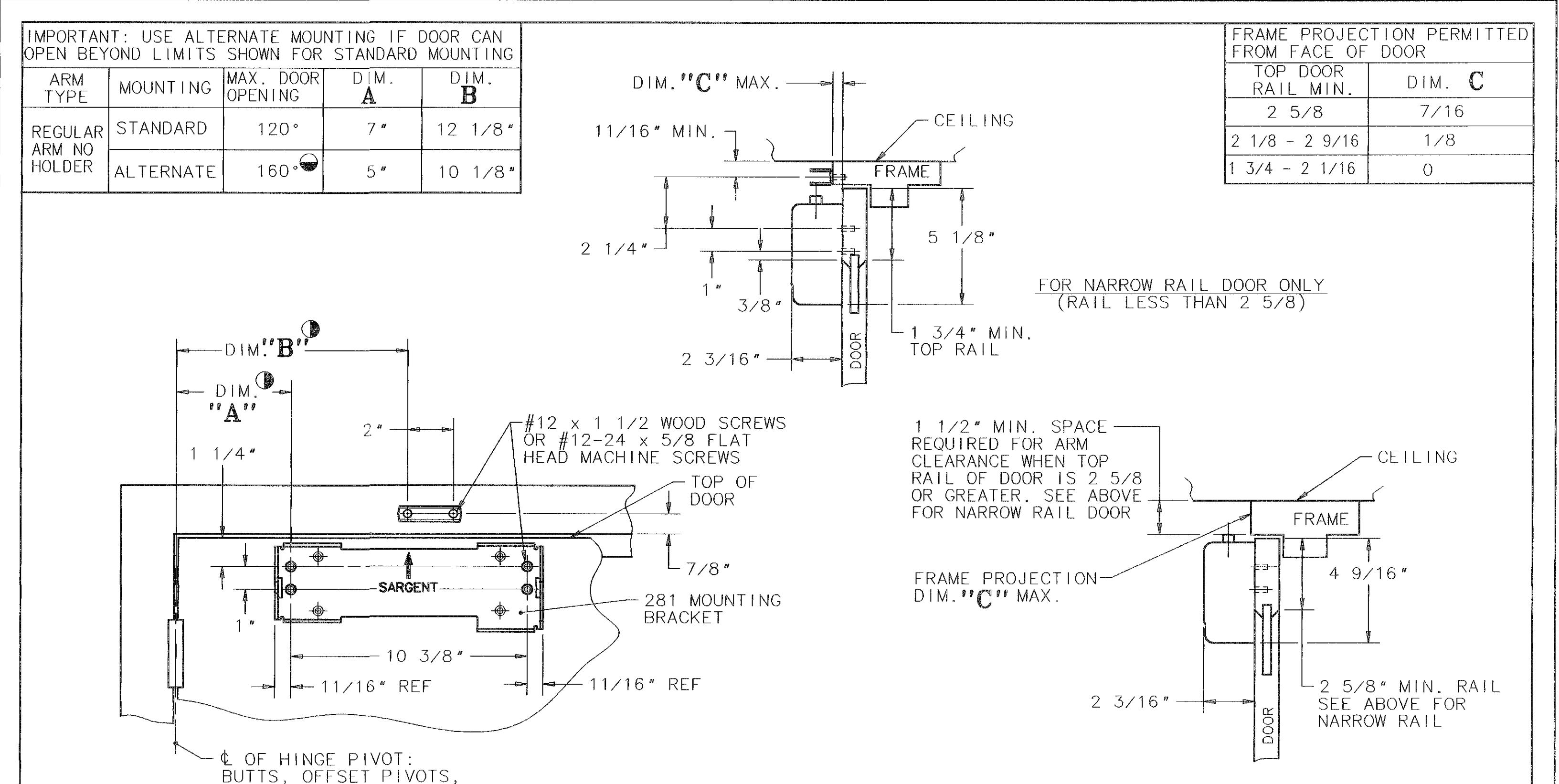

281 Series Closer x ‘O’ Standard Arm Application

3-F BUTT, FRAME AND WALL CONDITIONS PERMIT, CLOSER WILL ALLOW DOOR TO OPEN 180°.

OR INVISIBLE HINGES

SWING CLEAR, CENTER HUNG

2-RIGHT HAND DOOR SHOWN. LEFT HAND DOOR OPPOSITE.

1 - 12 GUAGE MIN. REINFORCEMENT REQUIRED FOR METAL DOORS & FRAMES.

4-COTHIS DIMENSION IS TAKEN FROM HINGE EDGE OF DOOR FOR INVISIBLE HINGES.

SARGENT MANUFACTURING COMPANY DATA SHEET: 281 SERIES CLOSER x STANDARD ARM DEC. 98 APPLICATION REGULAR- "O" TEMPLET NO. A7237 A
