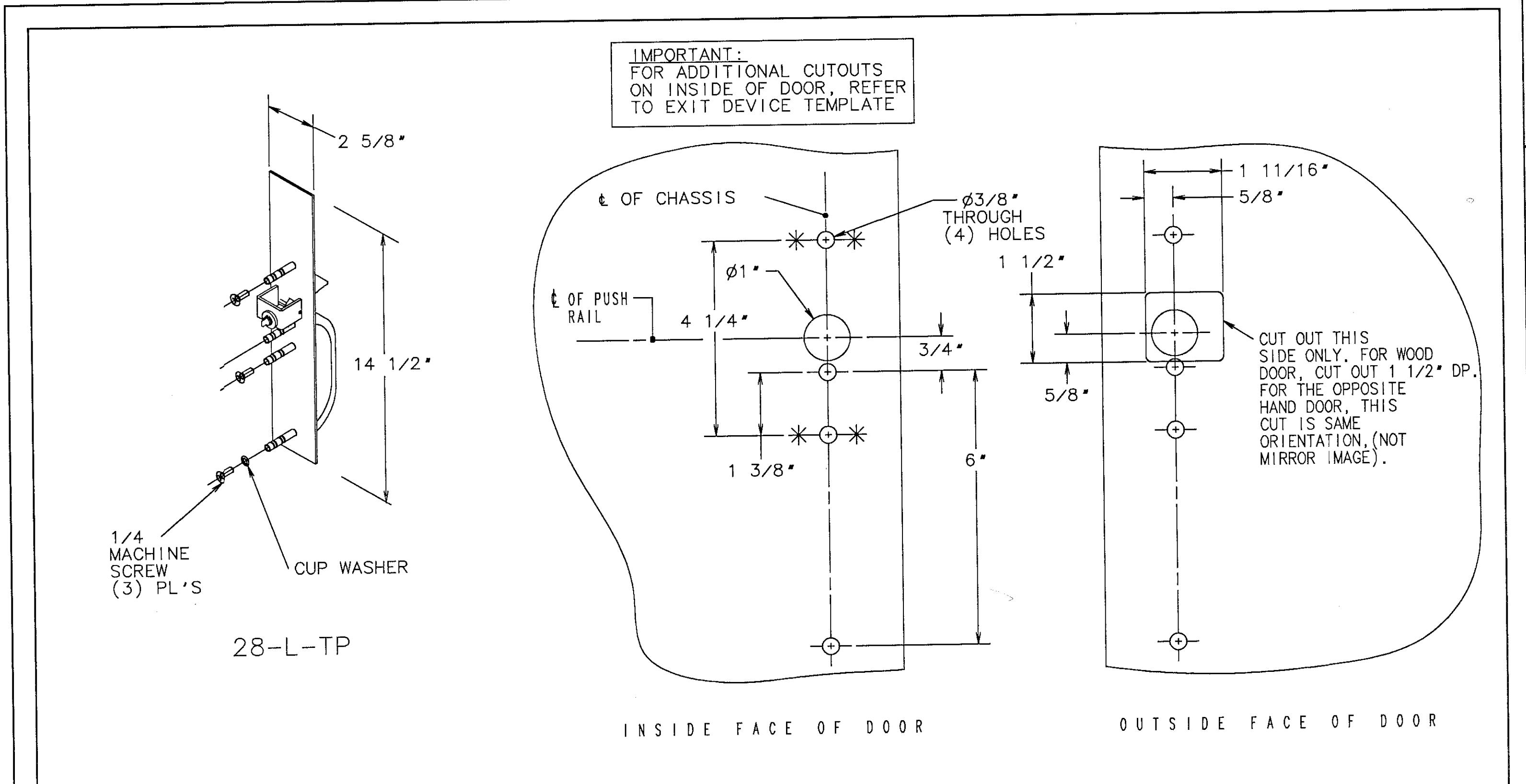

28-L-TP Thumbpiece Trim

TREFER TO EXIT DEVICE TEMPLATE FOR LOCATION OF VERTICAL & HORIZONTAL CENTERLINES

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511

RELEASE DATE TEMPLATE: 28-L-TP THUMBPIECE TRIM FOR 20 & 30 SERIES

TYPE EXIT DEVICES

SEP 23,02 TEMPLET NO. 4524 C
