2700 Floor Mount Double Side Electromagnetic Holder – Cut Sheet
Open the original PDF document
View PDFElectromagnetic Door Holders
Floor Mount

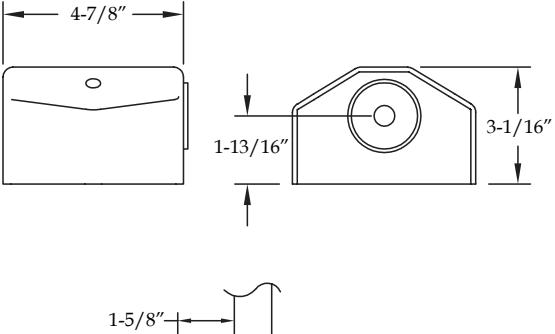

2600 – Single Floor Mount
Standard Features
- t Tri-voltage units for easy stocking and installation 12V DC, 24V $&'&RU9 AC
- t PrRYLGHGZLWKRQHFRPSOLPHQWDU\µH[WHQVLRQ² No charge
- t door armature with no special adapter piece required (see page D-8) .
- t 35 lb. holding force
- t $OOPHWDOFRPSRQHQWV² No plastic parts
- t
- t /LVWHGE\WKH&DOLIRUQLD6WDWH)Lre Marshall
- t 2XWOHWER[required (not provided)
- t Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
- t Positive release button alleviates residual magnetism
- t Average weight per unit = 6 lbs.

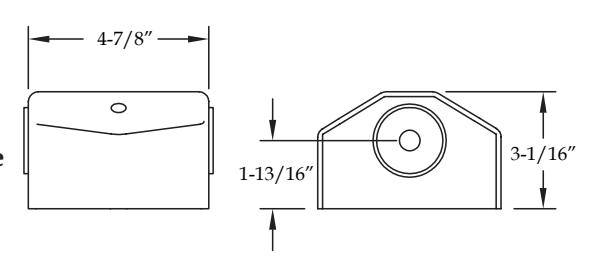

2700 – Double Floor Mount
Standard Features
- t Tri-voltage units for easy stocking and installation 12V DC, 24V $&'&RU9 AC
- t PrRYLGHGZLWKWZRFRPSOLPHQWDU\µH[WHQVLRQV² No charge
- t door armature with no special adapter piece required (see page D-8)
- t 35 lb. holding force
- t $OOPHWDOFRPSRQHQWV² No plastic parts
- t
- t /LVWHGE\WKH&DOLIRUQLD6WDWH)Lre Marshall
- t Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
- t Positive release button alleviates residual magnetism
- t Average weight per unit = 8 lbs.
(Two doors armatures provided)
