2580 Lever Re- Key Supplemental Instruction

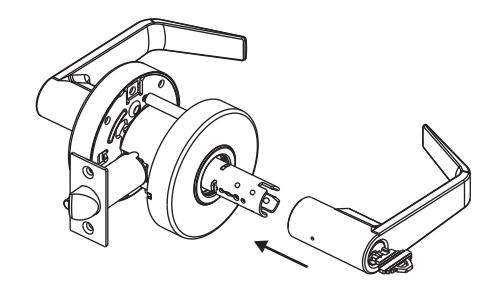

Insert the key into the outside lever and install it onto the chassis as far as it will go.

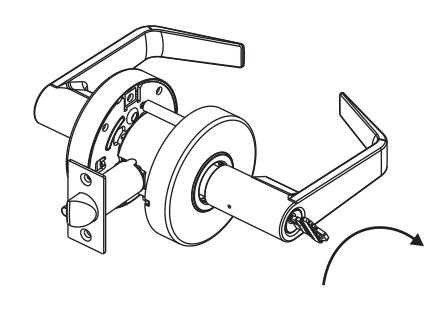

2 Turn and hold key at a 45°∼90° degree clockwise position ∘

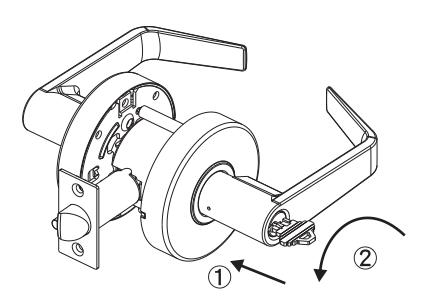

  • ①Push the outside lever onto the chassis until the catch engages in lever.
    • ②Turn the key back to the horizontal position.
