2527 Double Dummy Installation Instructions

NOTE:

FOR 1-3/8"[35] THICK DOOR, USE 1"[25.4] LONG MACHINE SCREWS. FOR 1-3/4"[45] THICK DOOR, USE 1-3/8"[35] LONG MACHINE SCREWS.

• 1. DRILL (2) 1/2"[12.7] DIAMETER HOLES THRU THE FACE OF THE DOOR. (FOR WOOD DOOR, DRILL HALF WAY THRU BOTH SIDES OF THE DOOR TO AVOID SPLINTERING.)
• 2. INSERT ONE MOUNTING PLATE THROUGH ONE ROSE LINER SO THEY SIT FLUSH.

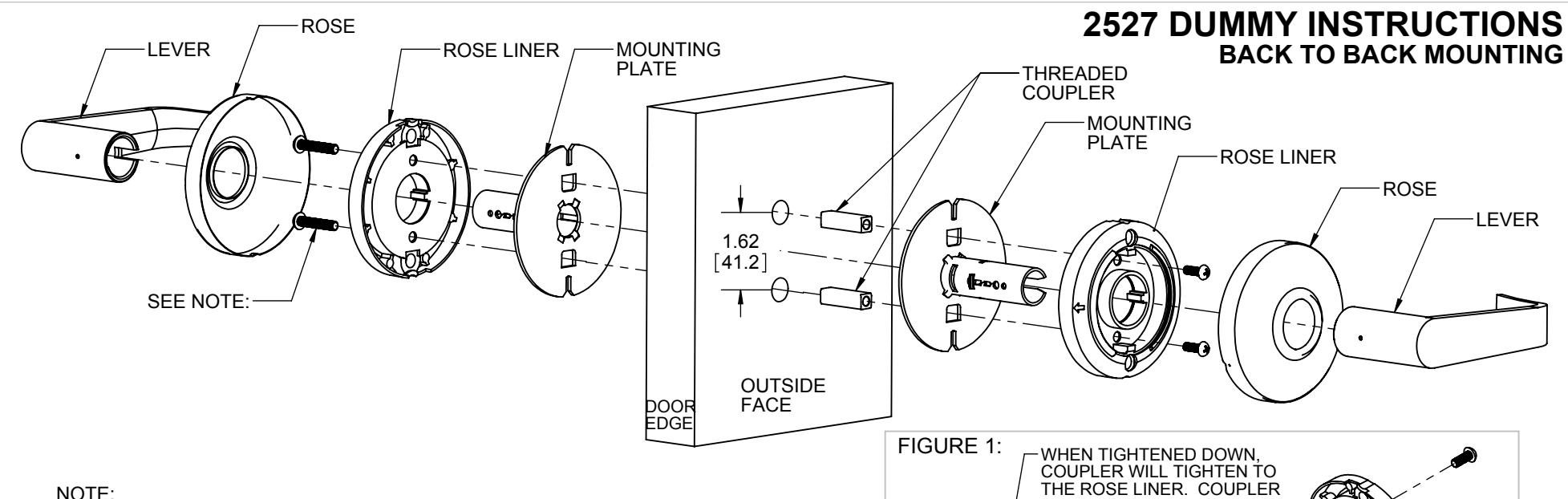

• 3. TIGHTEN THE ROSE LINER AND MOUNTING PLATE TOGETHER USING (2) 1/2"[12.7] LONG MACHINE SCREWS AND (2) THREADED COUPLERS. SEE FIGURE 1.
• 4. INSERT SECOND MOUNTING PLATE THROUGH SECOND ROSE LINER SO THEY SIT FLUSH.
• 5. INSERT ASSEMBLY WITH THE THREADED COUPLERS INTO THE HOLES IN THE DOOR.
• 6. HOLDING THE THREADED COUPLER ASSEMBLY TIGHT AGAINST THE DOOR, PLACE THE SECOND ASSEMBLY UP AGAINST THE INSIDE FACE OF DOOR. INSERT (2) MACHINE SCREWS THRU THE HOLES IN ROSE LINER.
• 7. TIGHTEN ASSEMBLY TO THE DOOR USING (2) MACHINE SCREWS (MACHINE SCREWS SHOULD TIGHTEN TO THE THREADED COUPLERS INSIDE THE DRILLED HOLES IN THE DOOR). SEE NOTE FOR SCREW DETAILS.
• 8. MAKE SURE BOTH SIDES ARE COMPLETELY TIGHTENED DOWN AND THEN INSTALL BOTH ROSES OVER THEIR ROSE LINERS.
• 9. INSERT BOTH LEVERS UNTIL THEY SNAP SECURELY IN PLACE.

MUST SIT IN THE HOLE OF THE MOUNTING PLATE SO THAT IT CANNOT

TWIST.
