2517 Installation Instruction – I-LS00890

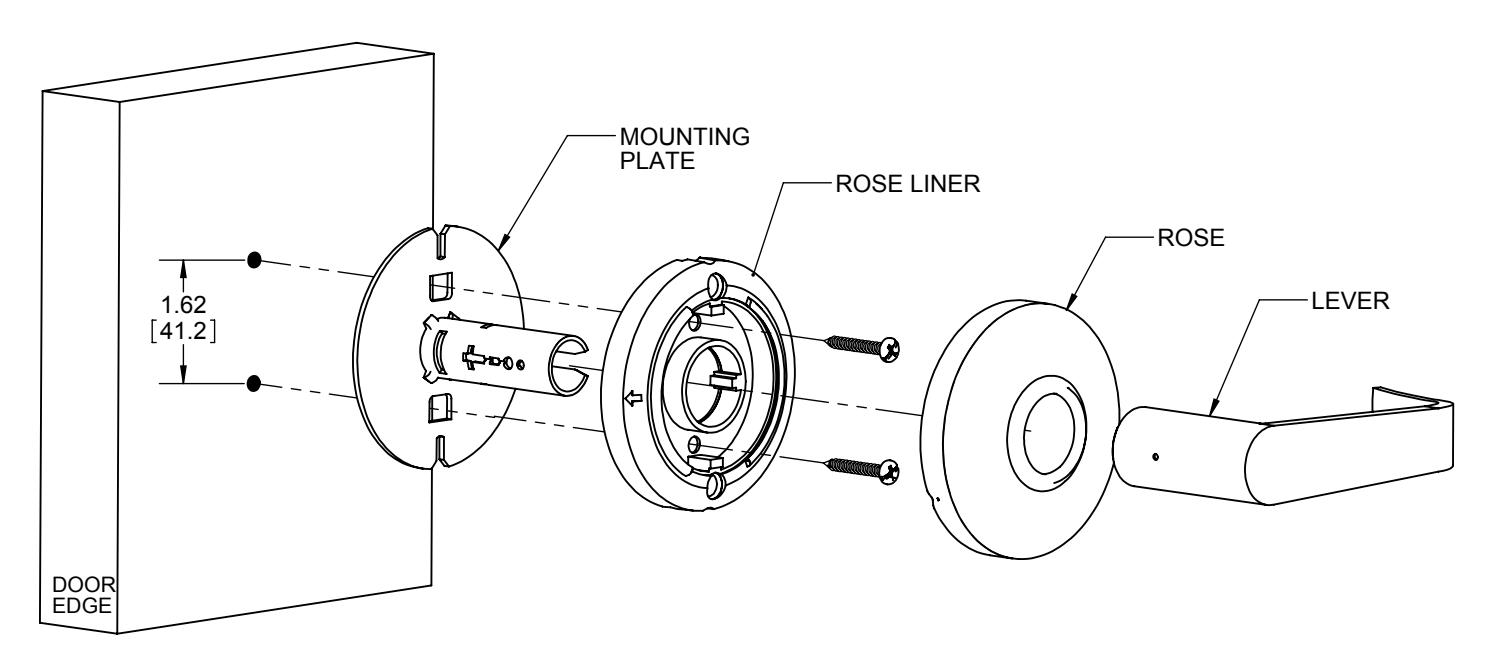

2517 DUMMY INSTRUCTIONS DIRECT DOOR MOUNTING

• WOOD DOOR DRILL (2) 1/8"[3.2] DIAMETER PILOT HOLES 1" [25.4] DEEP IN THE FACE OF THE DOOR. METAL DOOR DRILL (2) 11/64"[4.4] DIAMETER PILOT HOLES INTO THE FACE OF THE DOOR. TAP HOLES USING 8-32 TAP. 1.
• INSERT MOUNTING PLATE THROUGH ROSE LINER SO THEY SIT FLUSH. WOOD DOOR SCREW (2) #8 X 1-1/8" WOOD SCREWS INTO THE DOOR TO SECURE THE ROSE LINER AND MOUNTING PLATE.
  • METAL DOOR SCREW (2) 8-32 x 1" MACHINE SCREWS INTO THE DOOR TO SECURE ROSE LINER AND MOUNTING PLATE.
• INSTALL ROSE OVER ROSE LINER.
• INSERT LEVER UNTIL IT SNAPS SECURELY IN PLACE.

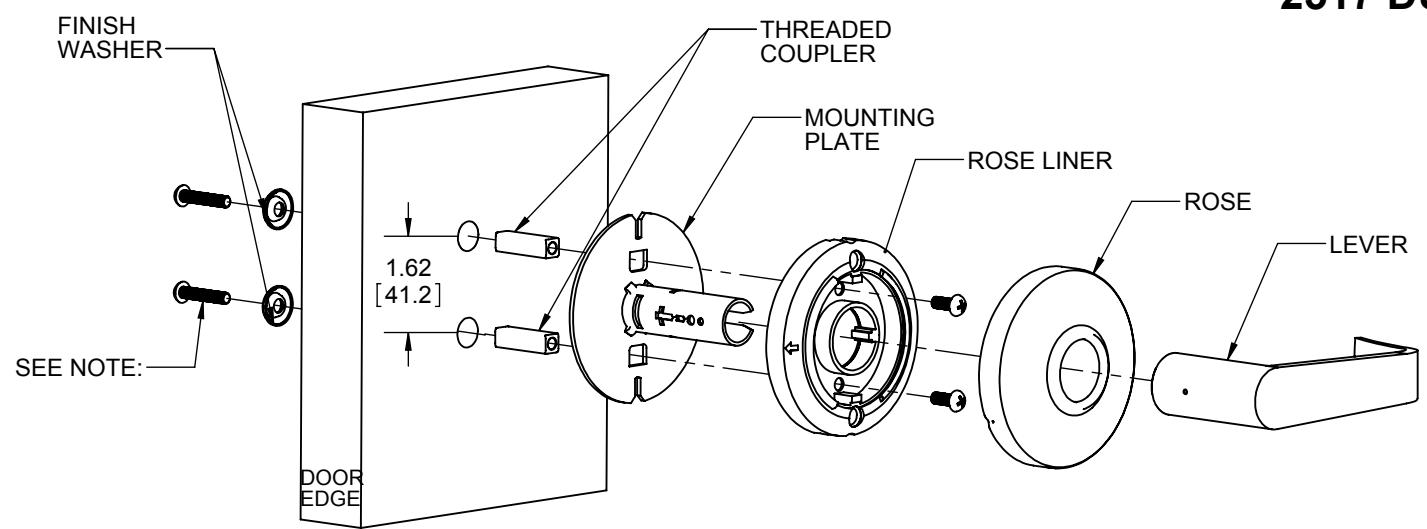

2517 DUMMY INSTRUCTIONS THRU DOOR MOUNTING

NOTE:

FOR 1-3/8"[35] THICK DOOR, USE 1"[25.4] LONG MACHINE SCREWS. FOR 1-3/4"[45] THICK DOOR, USE 1-3/8"[35] LONG MACHINE SCREWS.

• 1. DRILL (2) 1/2"[12.7] DIAMETER HOLES THRU THE FACE OF THE DOOR. (FOR WOOD DOORS, DRILL HALF WAY THRU BOTH SIDES OF THE DOOR TO AVOID SPLINTERING.)
• 2. INSERT MOUNTING PLATE THROUGH ROSE LINER SO THEY SIT FLUSH.

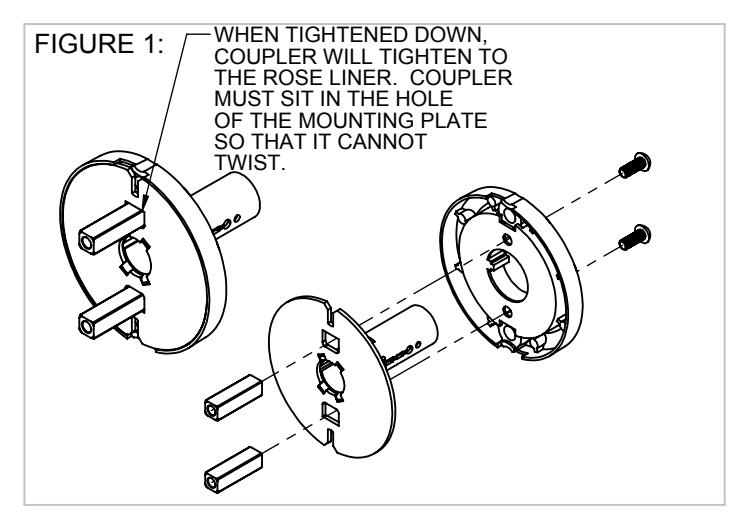

• 3. TIGHTEN ROSE LINER AND MOUNTING PLATE TOGETHER USING (2) 1/2"[12.7] LONG MACHINE SCREWS AND (2) THREADED COUPLERS. SEE FIGURE 1.
• 4. PLACE NEWLY ASSEMBLED PARTS ON OUTSIDE FACE OF THE DOOR.
• 5. TIGHTEN ASSEMBLY TO THE DOOR USING (2) MACHINE SCREWS AND (2) FINISH WASHERS (MACHINE SCREWS SHOULD TIGHTEN TO THE THREADED COUPLERS INSIDE DRILLED HOLES IN THE DOOR).
• 6. MAKE SURE BOTH SIDES ARE COMPLETELY TIGHTENED DOWN AND THEN INSTALL THE ROSE OVER THE ROSE LINER.
• 7. INSERT LEVER UNTIL IT SNAPS SECURELY IN PLACE.
