2500 Series Wood Door Template 2-3-4in BS – T-LS00895-Rev01
Open the original PDF document
View PDF

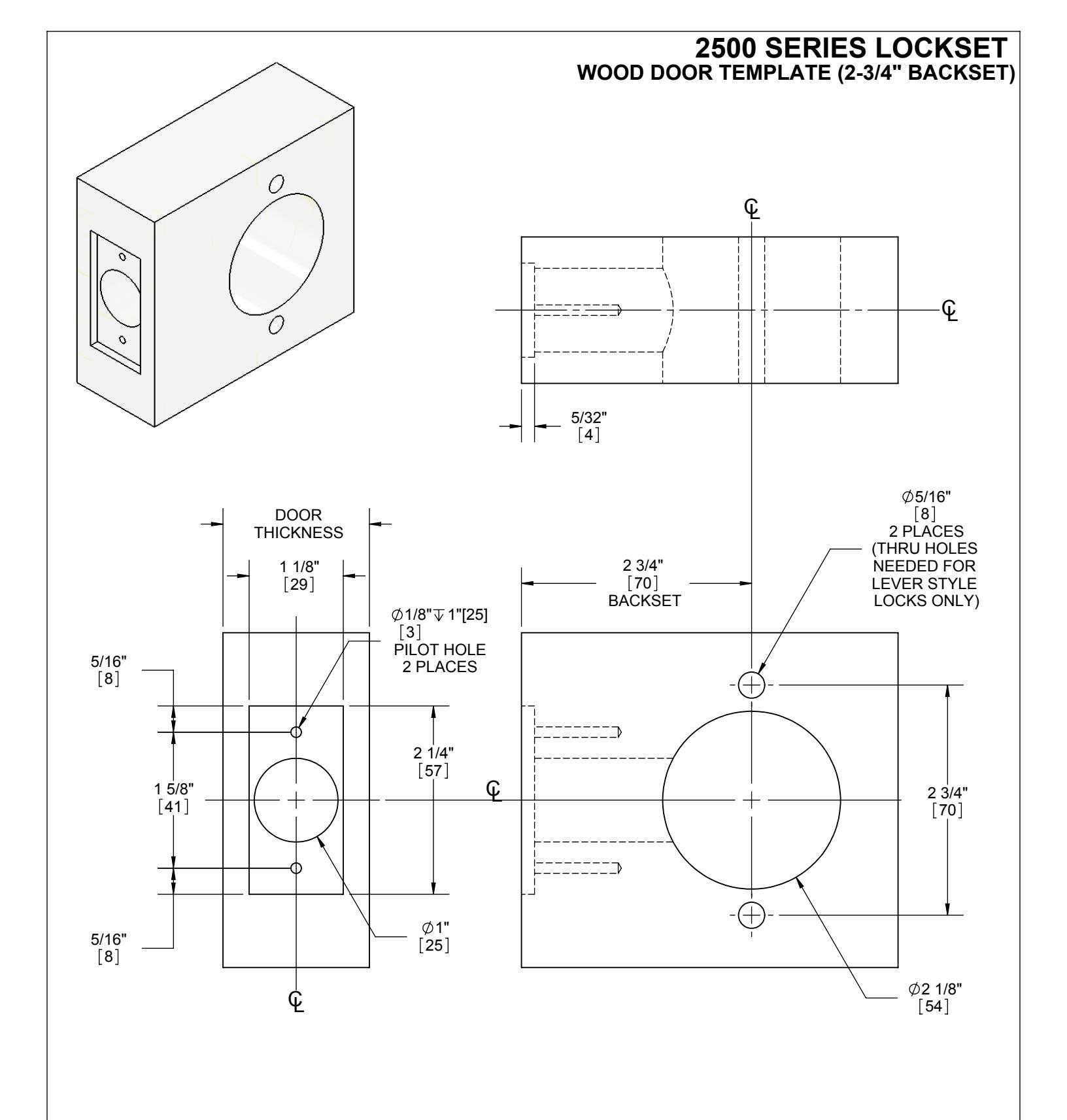

DOOR TYPE: WOOD OR COMPOSITE, FLAT OR BEVELED
DOOR THICKNESS: KNOBS 1 3/8"[35] - 1 3/4"[45], LEVERS 1 3/8"[35] - 2"[51]
FACEPLATE: SQUARE 1 1/8"[29] WIDTH BACKSETS: 2 3/4"[70], 5"[127] OPTIONAL
| DIMENSIONS IN [ ] ARE IN MILLIMETERS |
|---|
| TEMPLATE NO: | DRAWING NO: T-LS00895 | REV: 01 | SHEET 1 OF 1 |
|---|---|---|---|
| HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149 |
