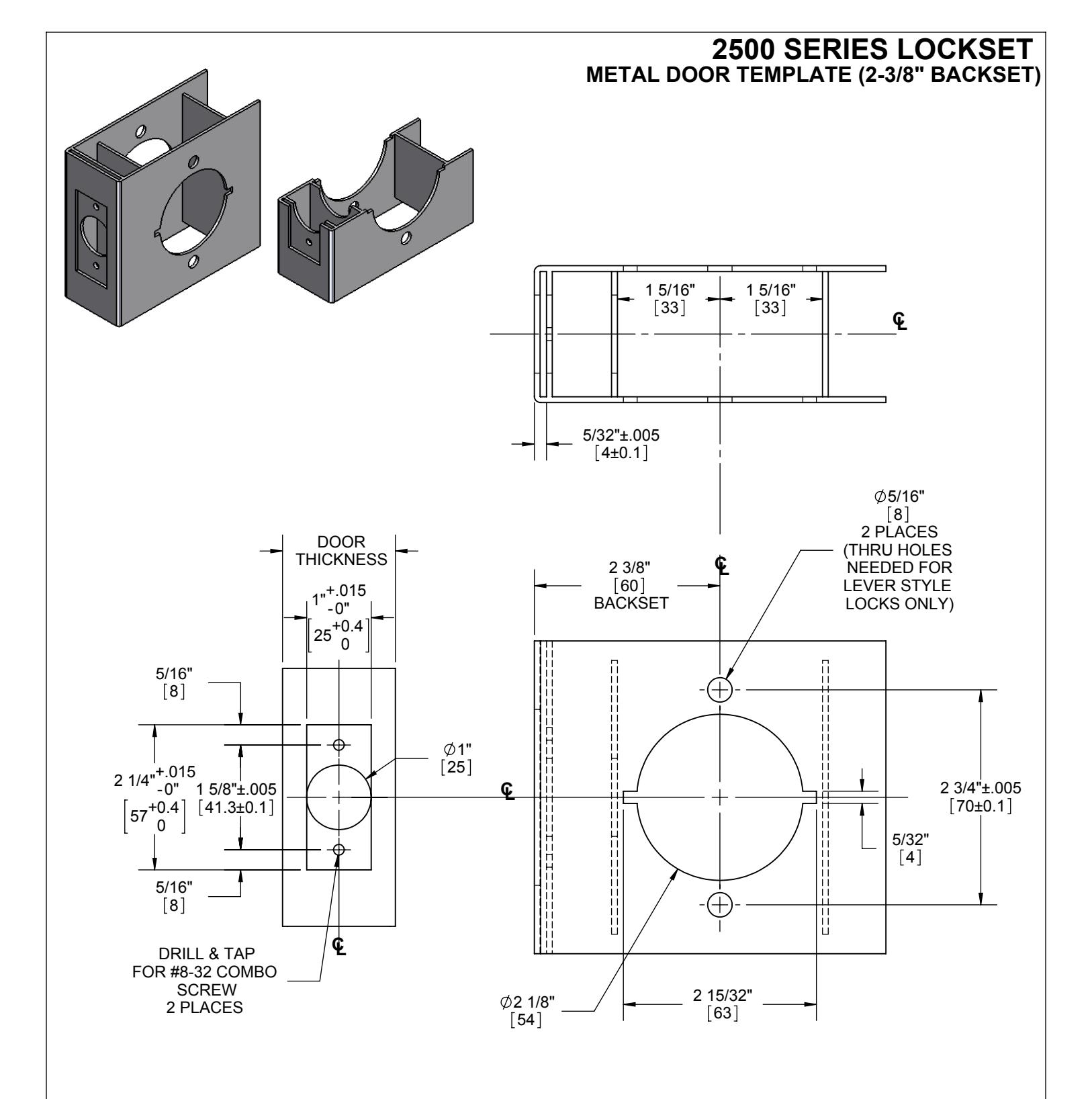

2500 Series Metal Door Template 2-3-8in BS – T-LS00894-Rev01

DOOR TYPE: METAL, FLAT OR BEVELED

DOOR THICKNESS: KNOBS 1 3/8"[35] - 1 3/4"[45], LEVERS 1 3/8"[35] - 2"[51]

FACEPLATE: SQUARE 1"[25] WIDTH

BACKSETS: 2 3/8"[60]

DIMENSIONS IN [ ] ARE IN MILLIMETERS
