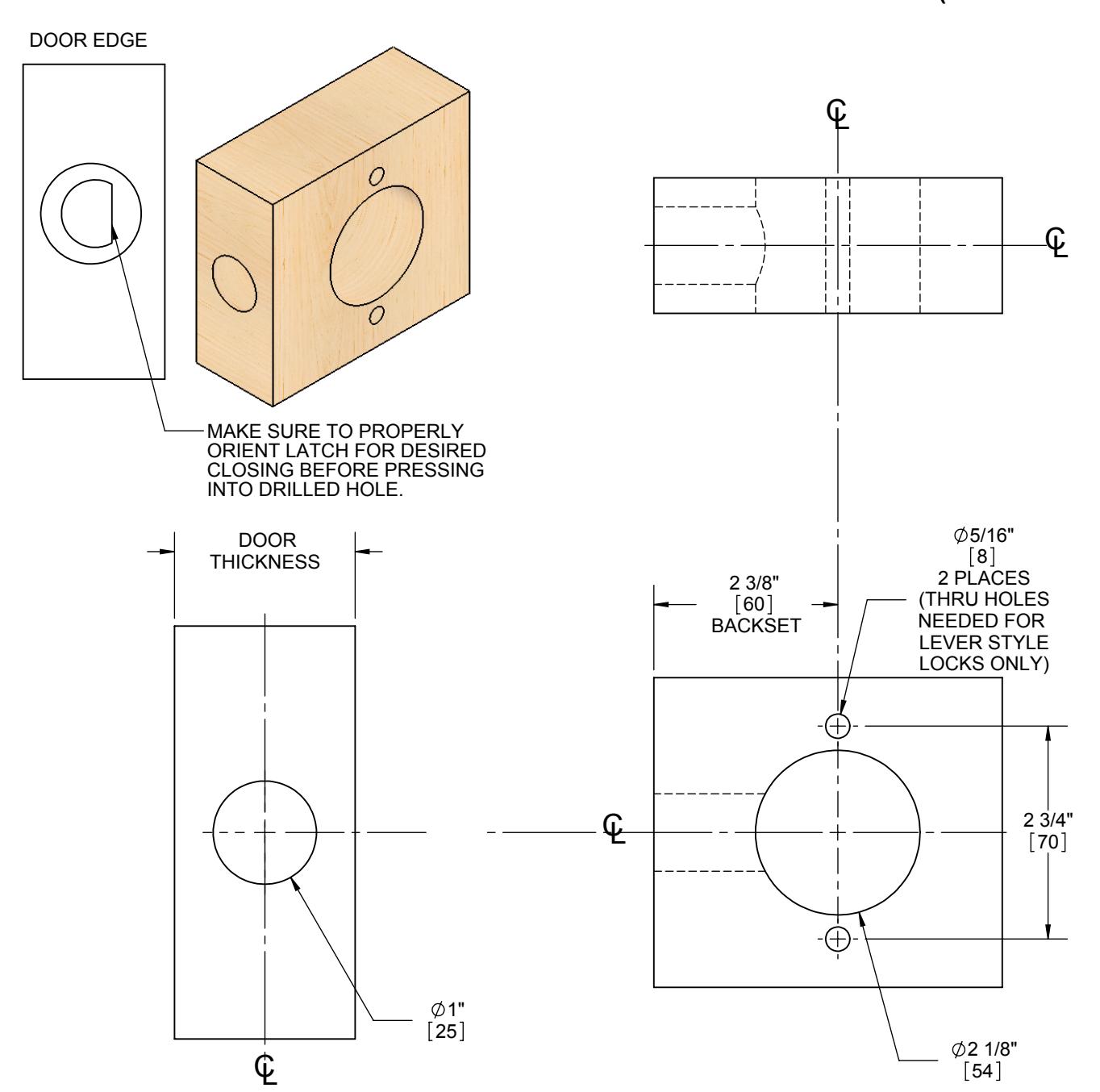

2500 SERIES LOCKSET DRIVE-IN LATCHBOLT TEMPLATE (2-3/8" BACKSET)

NOTE: INSERT LATCH INTO 1"[25] HOLE USING FINGER PRESSURE. THEN WHILE HOLDING A PIECE OF WOOD OVER THE LATCH FACE, STRIKE WITH A MALLET UNTIL LATCH IS SITTING FLUSH WITH DOOR EDGE.

DOOR TYPE: WOOD OR COMPOSITE, FLAT

DOOR THICKNESS: 1 3/8"[35] - 2"[51]

FACEPLATE: CIRCULAR DRIVE-IN

BACKSET: 2 3/8"

DIMENSIONS IN [ ] ARE IN MILLIMETERS

TEMPLATE NO:	DRAWING NO: T-LS00900	REV: 02	SHEET 1 OF 1
