2500 Series Drive-In Latchbolt Template 2-3-4in BS – T-lS00899-Rev02

2500 SERIES LOCKSET DRIVE-IN LATCHBOLT TEMPLATE (2-3/4" BACKSET)

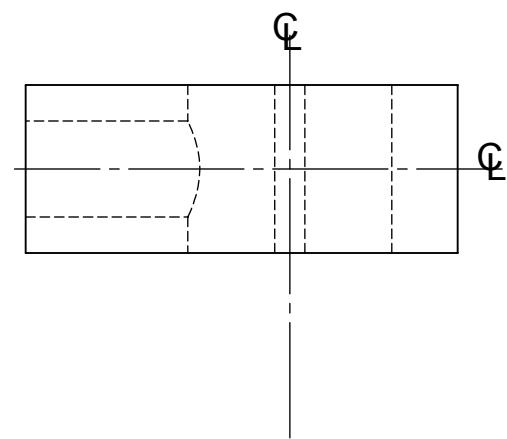

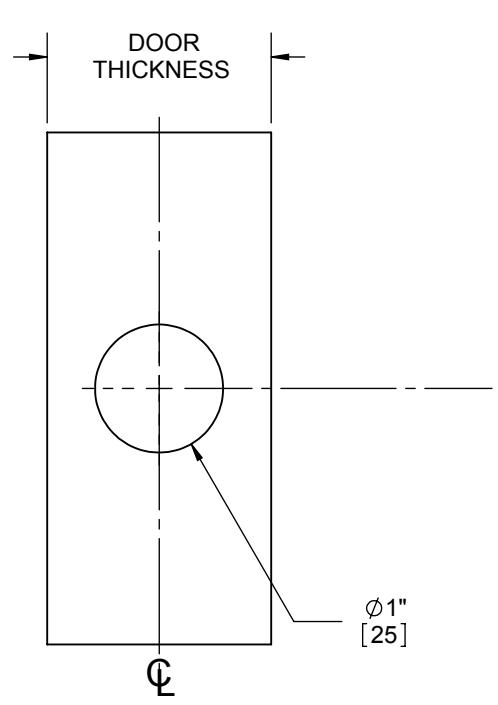

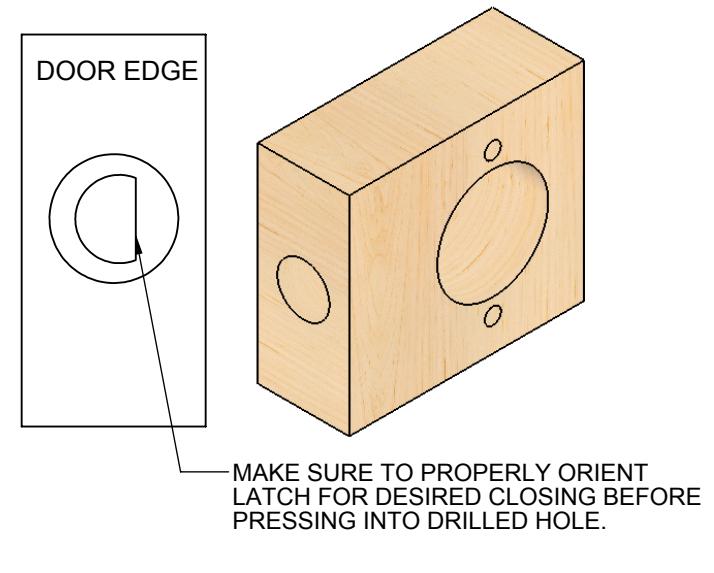

NOTE: INSERT LATCH INTO 1" [25] HOLE USING FINGER PRESSURE. THEN WHILE HOLDING A PIECE OF WOOD OVER THE LATCH FACE, STRIKE WITH A MALLET UNTIL LATCH IS SITTING FLUSH WITH DOOR EDGE.

DOOR TYPE: WOOD OR COMPOSITE, FLAT

DOOR THICKNESS: 1 3/8"[35] - 2"[51]

FACEPLATE: CIRCULAR DRIVE-IN

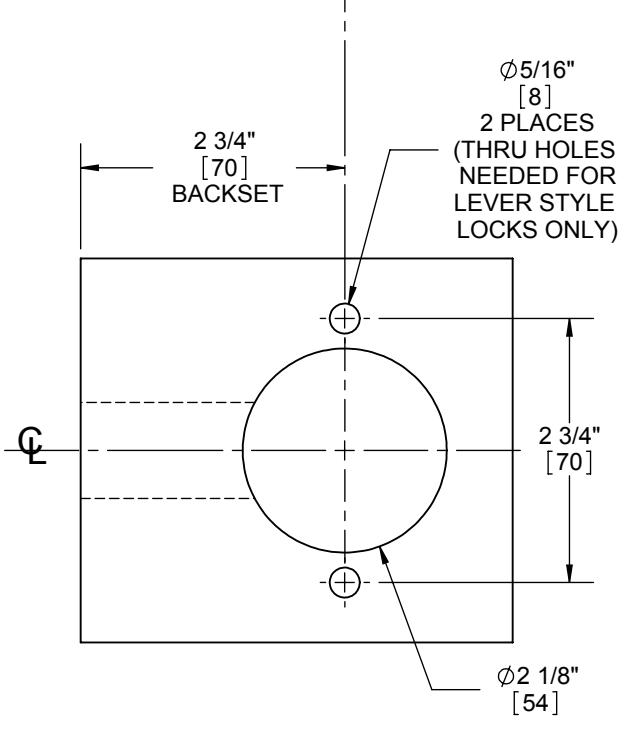

BACKSET: 2 3/4"

DIMENSIONS IN [ ] ARE IN MILLIMETERS

TEMPLATE NO:	DRAWING NO: T-LS00899	REV: 02	SHEET 1 OF 1
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149
