2400LS Flush Wall Mount with Flush Mount Armature Electromagnetic Holder – Cut Sheet
Open the original PDF document
View PDFElectromagnetic Door Holders
Innovation, Quality, Customer Service...
Wall Mount

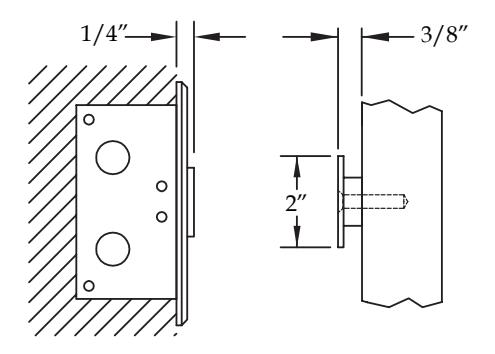

2400LS – Flush Wall Mount with Flush Mount Armature
Standard Features
- t ⅝" total projection from wall to face of door
- t Tri-voltage units for easy stocking and installation 12V DC, 24V $&'&RU9 AC
- t 35 lb. holding force
- t All metal components No plastic parts
- t
- t /LVWHGE\WKH&DOLIRUQLD6WDWH)Lre Marshall
- t 2XWOHWER[required (not provided)
- t Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
- t Positive release button alleviates residual magnetism
- t Average weight per unit = 2 lbs.

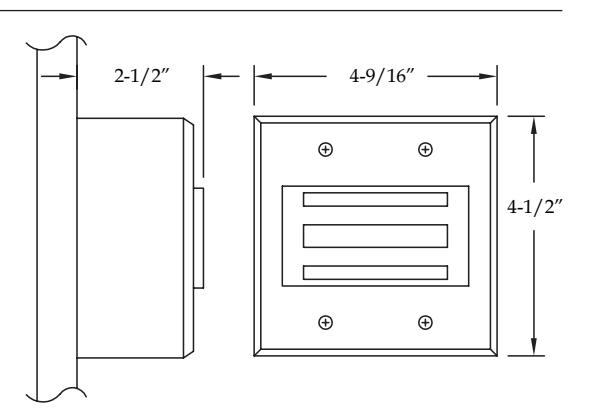

2510 –Heavy Duty Surface Wall Mount
Standard Features
- t 4-½" total projection from wall to face of door (5-½" if using FRPSOLPHQWDU\µH[WHQVLRQ
- t 24V $&'&PDJQHWLFFRLO
- t door armature with no special adapter piece required (see page D-8)
- t 300 lb. holding force
- t All metal components No plastic parts
- t
- t /LVWHGE\WKH&DOLIRUQLD6WDWH)Lre Marshall
- t Armature's pivot point has 360° mobility to help door alignment and reduce installation time
- t Positive release button alleviates residual magnetism
- t Average weight per unit = 6 lbs.
