2400L Flush Mount with Low Profile Armature Electromagnetic Holder – Installation Template

Open the original PDF document

View PDF

2400L ELECTROMAGNETIC DOOR HOLDER, FLUSH WALL MOUNT WITH LOW PROFILE ARMATURE

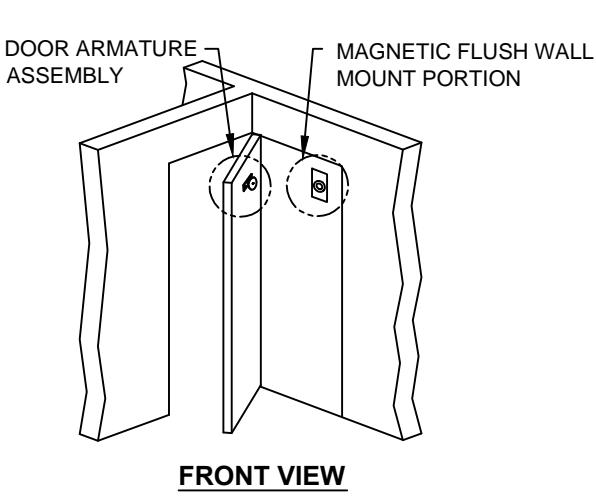

DOOR ARMATURE ASSEMBLY

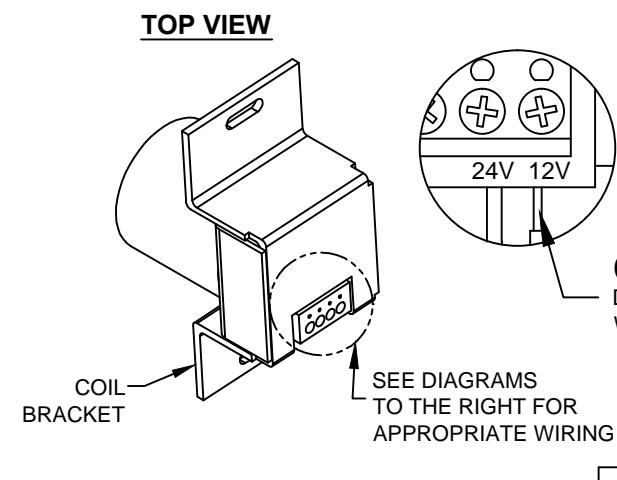

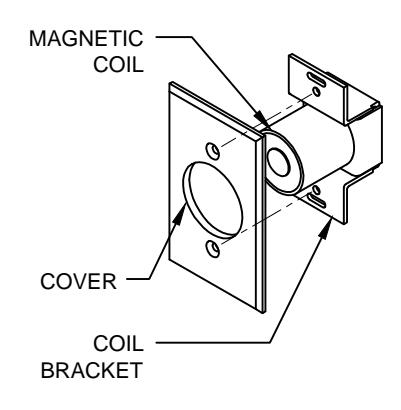

2400L MAGNETIC WALL PORTION

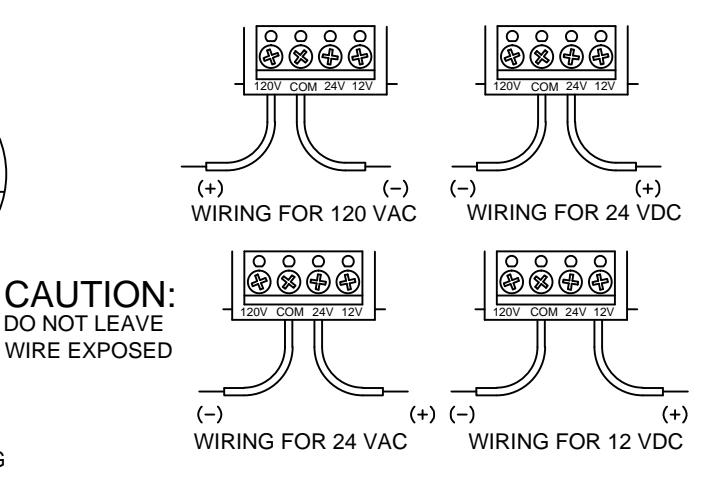

ELECTRICAL DATA:

THIS PRODUCT IS AN ELECTROMAGNETIC HOLDING DEVICE, INTENDED FOR USE IN FIRE DOOR APPLICATIONS, BUT CAN BE USED FOR OTHER MAGNETIC APPLICATIONS. WIRE INTO PROPER TERMINALS AS NOTED BELOW:

SERIES VOLTAGE DC/mA DC/VA AC/mA AC/VA TERMINALS
2400L 12 DC 60 .72 Com & 12 v
24 AC/DC 30 .72 30 .72 Com & 24 v
120 AC 30 3.60 Com & 120 v

SCREW DETAIL
QTY SCREW
MAGNETIC WALL PORTION 2 6-32 x 1" OVAL HEAD MACHINE SCREW
MAGNETIC COVER 2 6-32 x 1" FLAT HEAD MACHINE SCREW
DOOR ARMATURE 2 10-32 x 1" PAN HEAD MACHINE SCREW
DOOK ARMATORE 10-32 x 1-1/4" SNB

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Management

Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

ABH is a minority owned and operated manufacturing company.

2400L

2400L-1-04.DWG

© 2015 ABH Mfg., Inc. printed in USA

PAGE 1 OF 2 REVISED 07-10-15

2400L ELECTROMAGNETIC DOOR HOLDER, FLUSH WALL MOUNT WITH LOW PROFILE ARMATURE

WALL PORTION INSTALLATION:

  • 1. Measure distance from pivot centerline to wall (Dim. "A").
  • 2. Determine door width (Dim. "B").
  • 3. Use table below to locate magnet box on wall (Dim. "C").
    • a. Example: Dim. "A" = 10" Dim. "B" = 42" Result Dim. "C" = 39".
    • b. If Dim. "A" or Dim. "B" Falls between dimensions listed in the table below, allow for difference.
      • Example: Dim. "A" = 7" Dim. "B" = 36" Estimated Dim. "C" = 33-7/16"
    • c. If Dim. "A" and Dim. "B" intersect in the shaded area, DO NOT INSTALL magnet box. The degree of door opening will not allow for proper alignment between armature and wall magnet.
  • 4. Suggested vertical location is on top rail approximately 5" from top of the door.

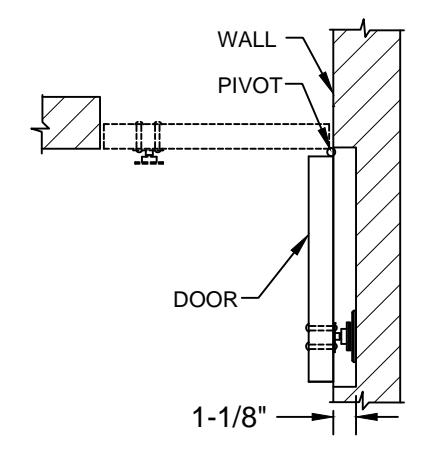

  • 5. Total projection of door hardware must not be more than 1-1/8" on the pull side of door. If greater, you will need to use additional extensions, sold separately.

DIM. "B" (DOOR WIDTH)
Dim. 28 30 32 34 36 38 40 42 44 46 48
"A" Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C" Deg Dim "C"
2 25-1/8 93° 27-3/8 93° 29-1/8 93° 31 93° 33-1/8 92° 35-1/8 92° 37-1/8 92° 39-1/8 92° 41-1/4 92° 43-1/8 92° 45-1/4 92°
4 25 98° 27-1/4 97° 29 97° 30-7/8 98° 33 96° - - - - - - - - - - - -
6 - - - - - - - - - - - - - - - - - - - - - -
8 - - - - - - - - - - - - - - - - - - - - - -
10 - - - - - - - - - - - - - - - - - - - - - -
12 - - - - - - - - - - - - - - - - - - - - - -
14 - - - - - - - - - - - - - - - - - - - - - -
16 - - - - - - - - - - - - - - - - - - - - - -
18 - - - - - - - - - - - - - - - - - - - - - -
20 - - - - - - - - - - - - - - - - - - - - - -
22 - - - - - - - - - - - - - - - - - - - - - -
24 - - - - - - - - - - - - - - - - - - - - - -
26 - - - - - - - - - - - - - - - - - - - - - -

  • 6. From corner of wall, measure the appropriate Dim. "C" determined in step 3.
  • 7. Proper electrical wire routing must be done before installing electrical box.
  • 8. The electrical box should be installed with reinforcement to withstand a minimum 50 lb. pull (not provided with unit).

IMPORTANT: a. Check that power voltage equals one of the voltages labeled on back of magnet.

b. Consult " ELECTRICAL DATA" on page 1.

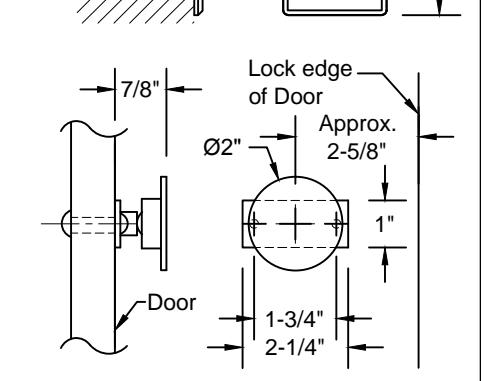

DOOR ARMATURE INSTALLATION:

  • 1. Place and center the door armature on the surface of the magnet with the two holes of the base aligned horizontally.
  • 2. Gently close the door and adjust the angle of the door armature so the base lays flat against the door.
  • 3. While keeping slight pressure on the door, mark location of door armature through the two base holes.
  • 4. Drill through the door where the two marks are located with 5/16" drill. Fasten with the (2)10-32 machine screws & sex bolts provided.

NOTE: All dimensions are provided in inches, unless noted otherwise.

2-3/4"

4-5/8'

Pivot

Magnet Box Centerline

Centerline

2400L-2-04.DWG

A =H

@ www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

ABH is a minority owned and operated manufacturing company.

© 2015 ABH Mfg., Inc. printed in USA

PAGE 2 OF 2 REVISED 07-10-15
