2400 Flush Mount Electromagnetic Holder – Cut Sheet

Open the original PDF document

Electromagnetic Door Holders

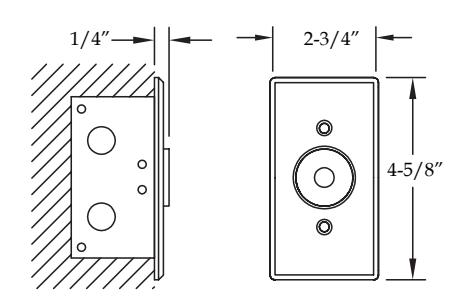

t 1-⅞" total projection from wall to face of door (2-⅞" if using FRPSOLPHQWDU\µH[WHQVLRQ
t Tri-voltage units for easy stocking and installation 12V DC, 24V $& DC or 120V AC
t PrRYLGHGZLWKRQHFRPSOLPHQWDU\µH[WHQVLRQ² No charge
t armature with no special adapter piece required (see page D-8)
t 35 lb. holding force
t $OOPHWDOFRPSRQHQWV² No plastic parts
t
t /LVWHGE\WKH&DOLIRUQLD6WDWH)Lre Marshall
t 2XWOHWER[required (not prRYLGHG
t Armature features two pivot points which each have 360° mobility to help door alignment and reduce installation time
t Positive release button alleviates residual magnetism
t Average weight per unit = 2 lbs.

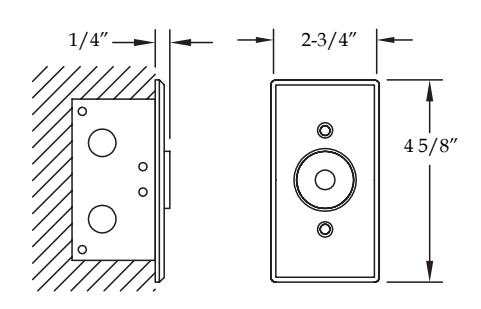

t 1-⅛" total projection from wall to face of door
t Tri-voltage units for easy stocking and installation 12V DC, 24V $&'&RU9 AC
t armature with no special adapter piece required (see page D-8)
t 35 lb. holding force
t $OOPHWDOFRPSRQHQWV² No plastic parts
t
t /LVWHGE\WKH&DOLIRUQLD6WDWH)Lre Marshall
t Armature's pivot point has 360° mobility to help door alignment and reduce installation time
t Positive release button alleviates residual magnetism
t Average weight per unit = 2 lbs.
