2340 Wood Door Template 2-3-8in Backset – T-LS01840

Open the original PDF document

View PDF

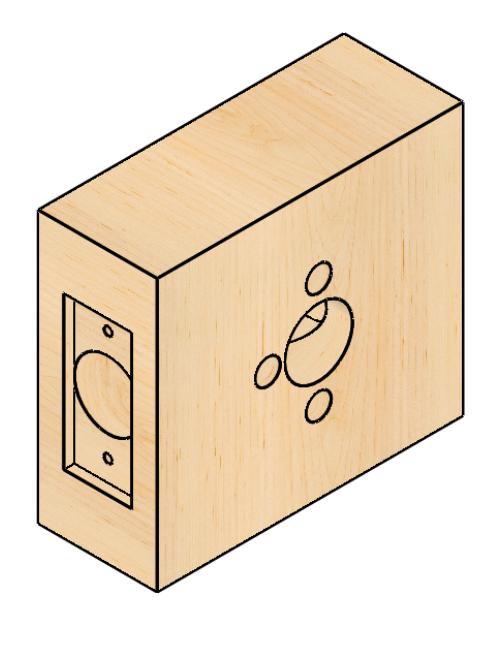

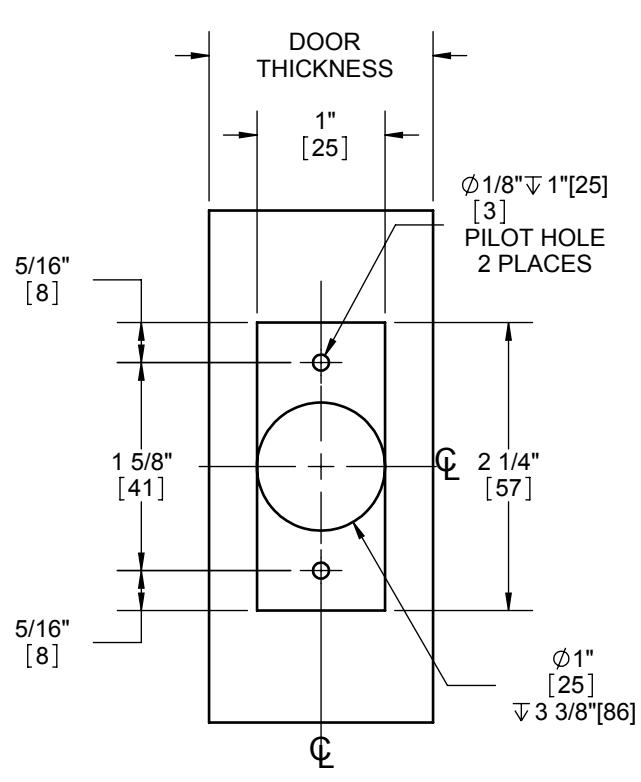

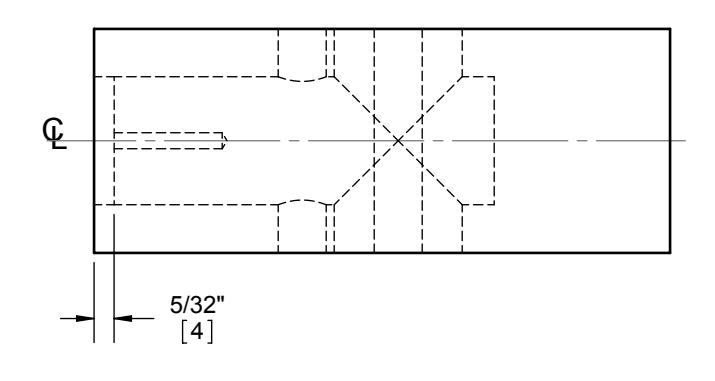

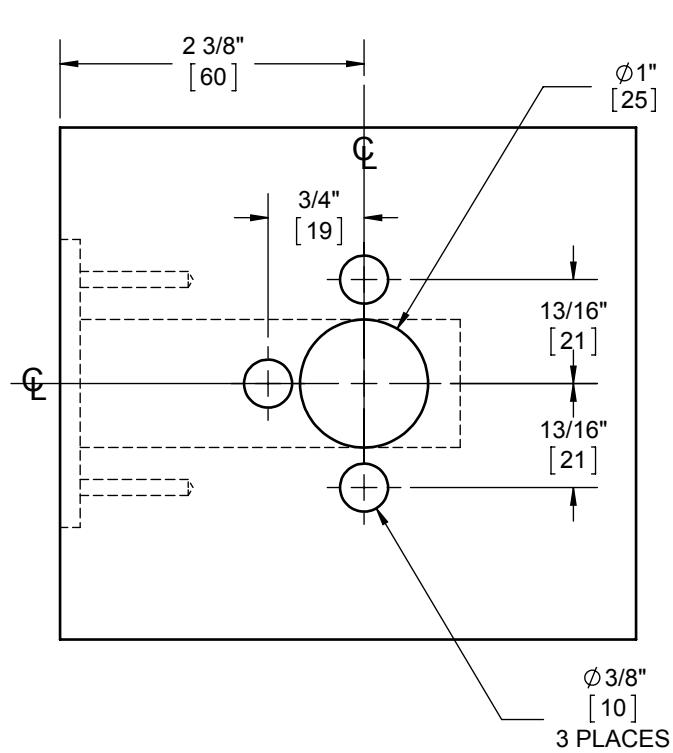

2340 LEVERSET WOOD DOOR PREP TEMPLATE (2-3/8" BACKSET, SQUARE CORNER)

DOOR TYPE: WOOD OR COMPOSITE, FLAT

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: SQUARE, 1"[25] WIDTH

BACKSET: 2 3/8"[60]

DIMENSIONS IN [ ] ARE IN MILLIMETERS

TEMPLATE NO:

DRAWING NO: T-LS01840 REV: - SHEET 1 OF 1
