2340 Wood Door Template 2-3-4in Backset – T-LS01841

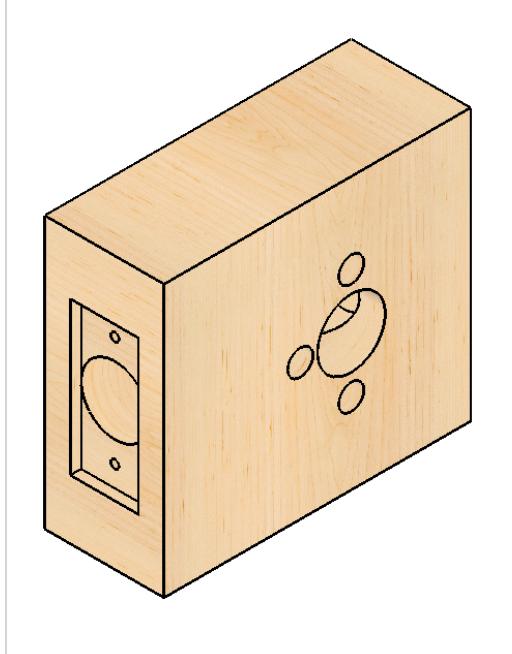

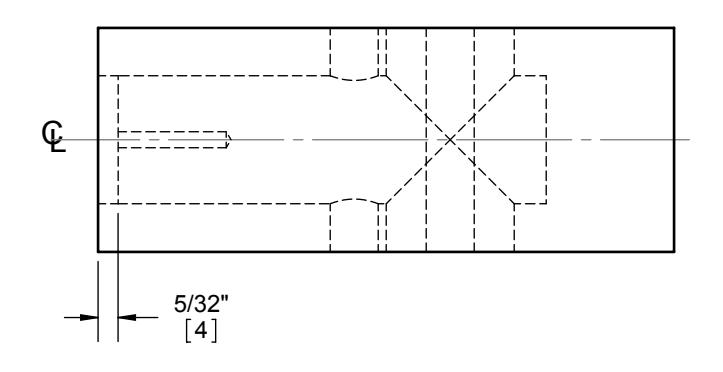

2340 LEVERSET WOOD DOOR PREP TEMPLATE (2-3/4" BACKSET, SQUARE CORNER)

DOOR TYPE: WOOD OR COMPOSITE, FLAT

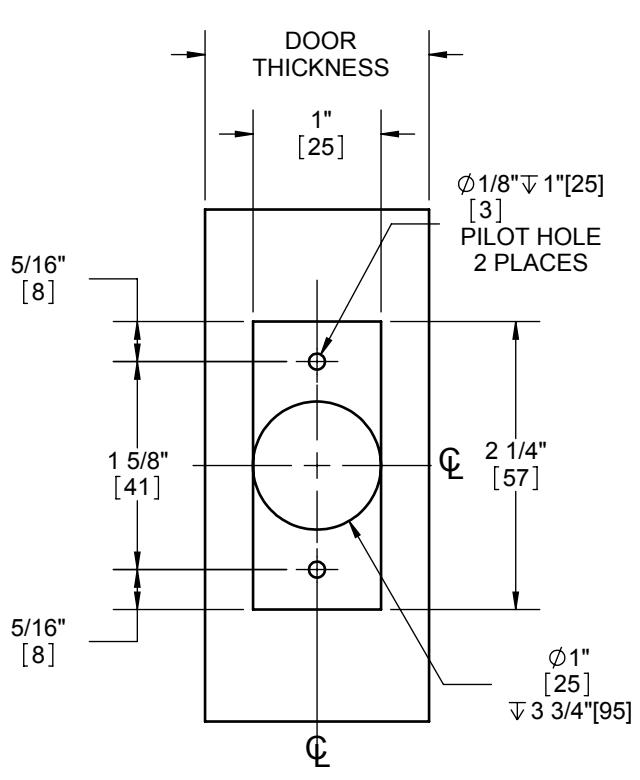

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: SQUARE, 1"[25] WIDTH

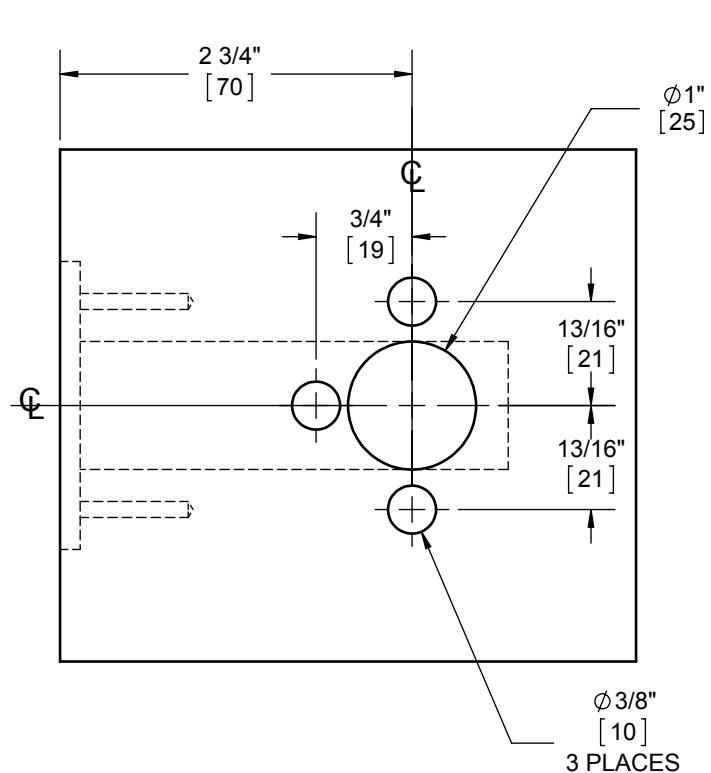

BACKSET: 2 3/4"[70]

HAGER STANDAM MESON

DIMENSIONS IN [] ARE IN MILLIMETERS

TEMPLATE NO:

DRAWING NO: T-LS01841

REV: - SHEET 1 OF 1
