2340 RC Wood Door Template 2-3-4in BS – T-LS01843

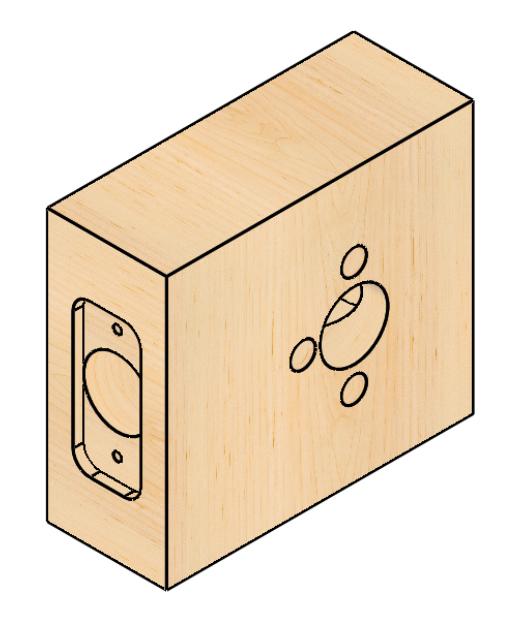

2340 LEVERSET WOOD DOOR PREP TEMPLATE (2-3/4" BACKSET, ROUND CORNER)

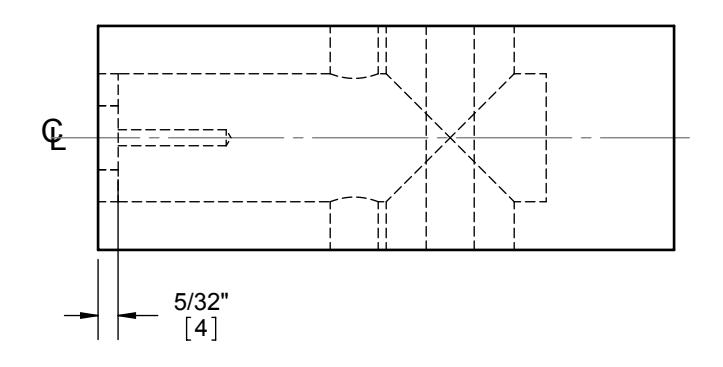

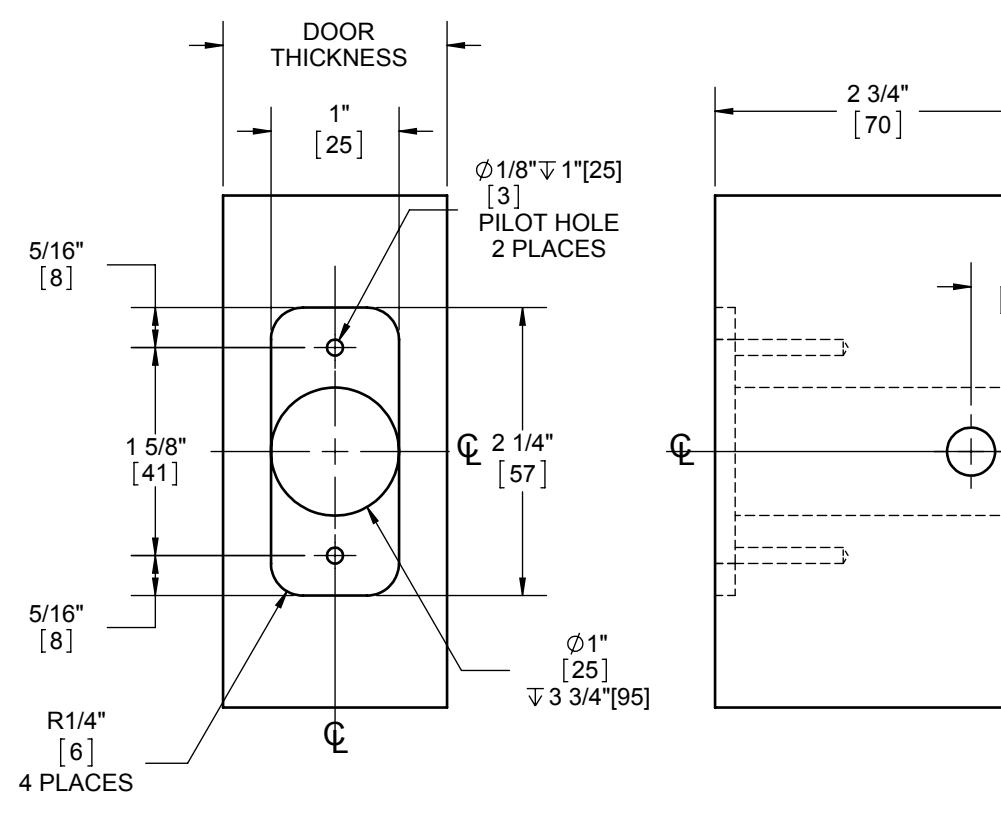

1" 25 3/8" 10 3 PLACES 13/16" 21 13/16" 21 3/4" 19 CL

DOOR TYPE: WOOD OR COMPOSITE, FLAT

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: 1/4"R, 1"[25] WIDTH

BACKSET: 2 3/4"[70]

DIMENSIONS IN [ ] ARE IN MILLIMETERS

DO NOT SCALE TEMPLATE DRAWING NO: T-LS01843 REV: - SHEET 1 OF 1 HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 - (800) 325-9995 - Fax (800) 782-0149 TEMPLATE NO:
