2310 Series Wood Door Template (2-3-8in Backset) t-ls01905

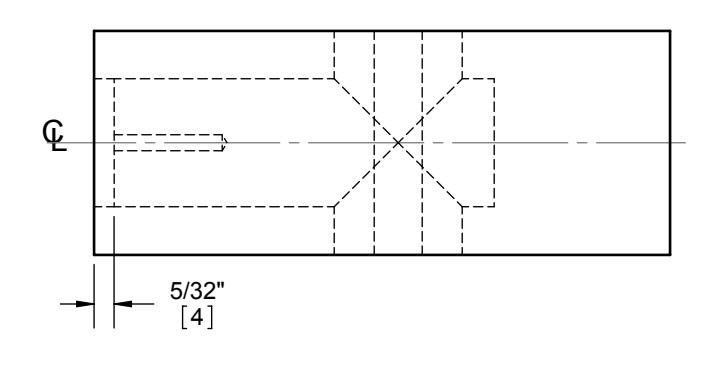

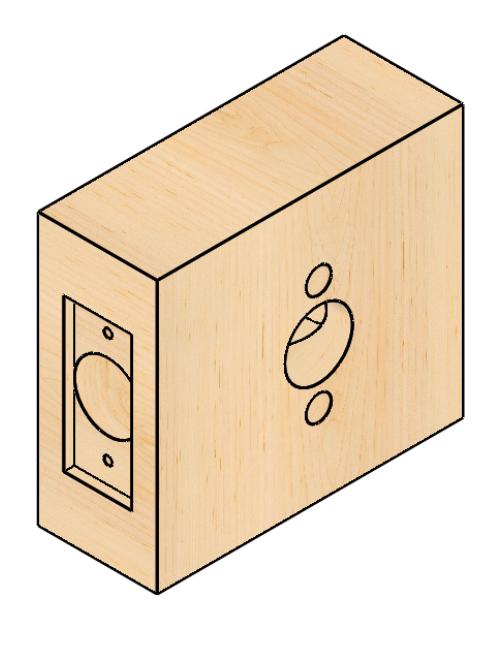

2310 LEVERSET WOOD DOOR PREP TEMPLATE (2-3/8" BACKSET, SQUARE CORNER)

DOOR TYPE: WOOD OR COMPOSITE, FLAT

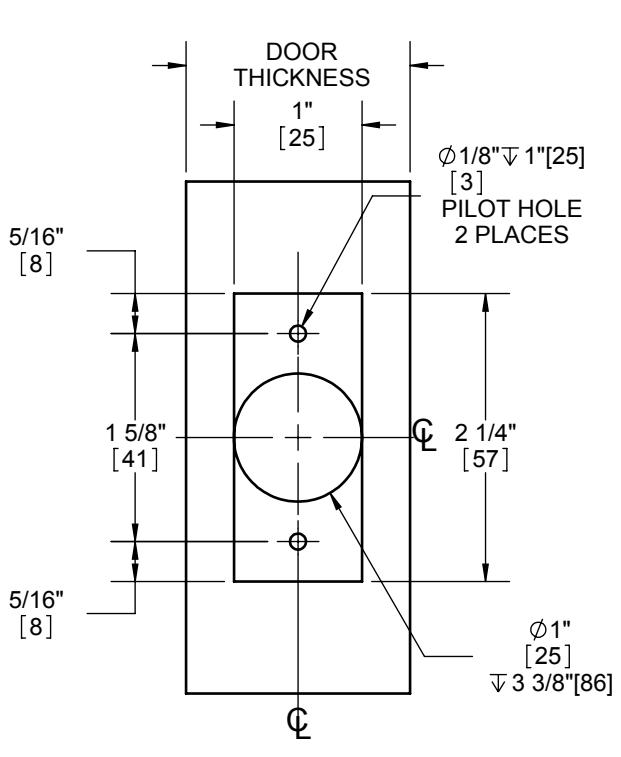

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: SQUARE, 1"[25] WIDTH

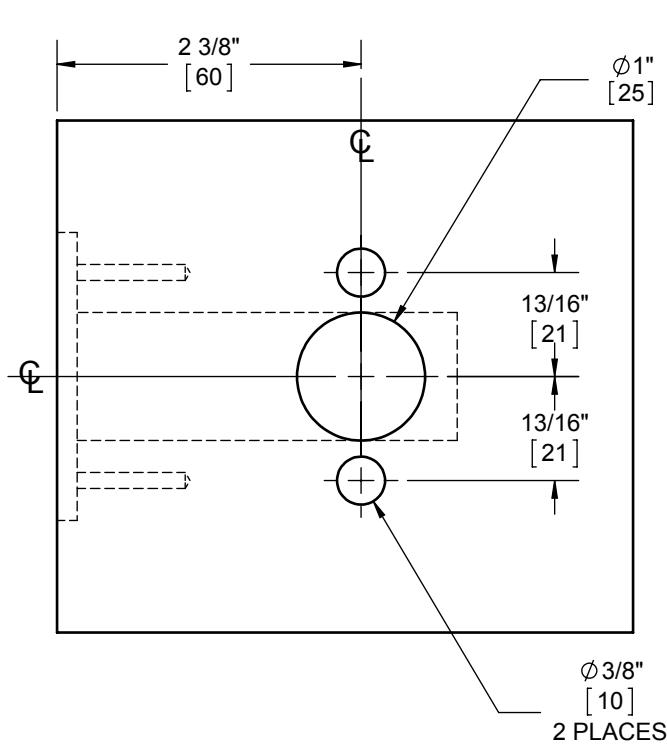

BACKSET: 2 3/8"[60]

DIMENSIONS IN [ ] ARE IN MILLIMETERS

DRAWING NO: T-LS01905 REV: - SHEET 1 OF 1 TEMPLATE NO:
