2310 Series SQ Corner Wood Door Template 2-3-4in BS – T-LS01906

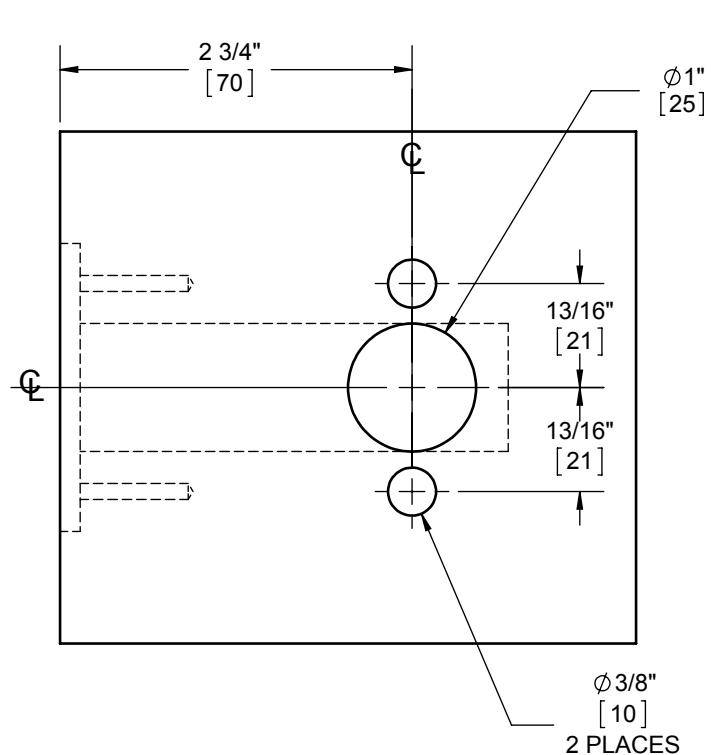

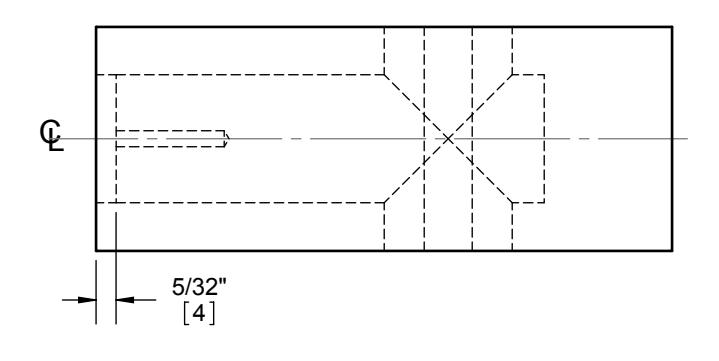

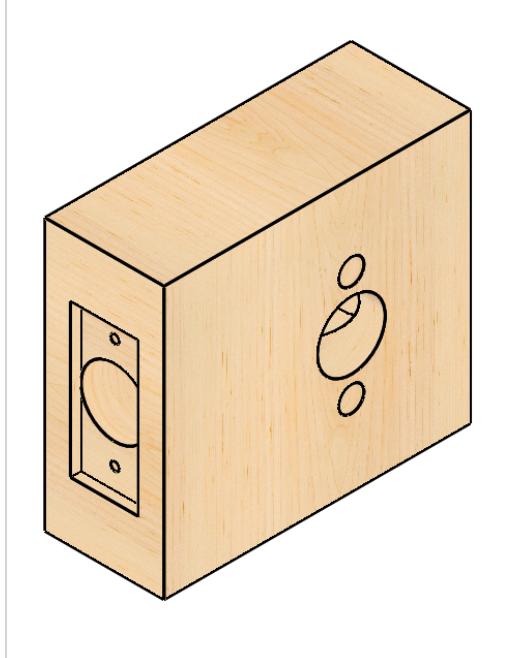

2310 LEVERSET WOOD DOOR PREP TEMPLATE (2-3/4" BACKSET, SQUARE CORNER)

DOOR TYPE: WOOD OR COMPOSITE, FLAT

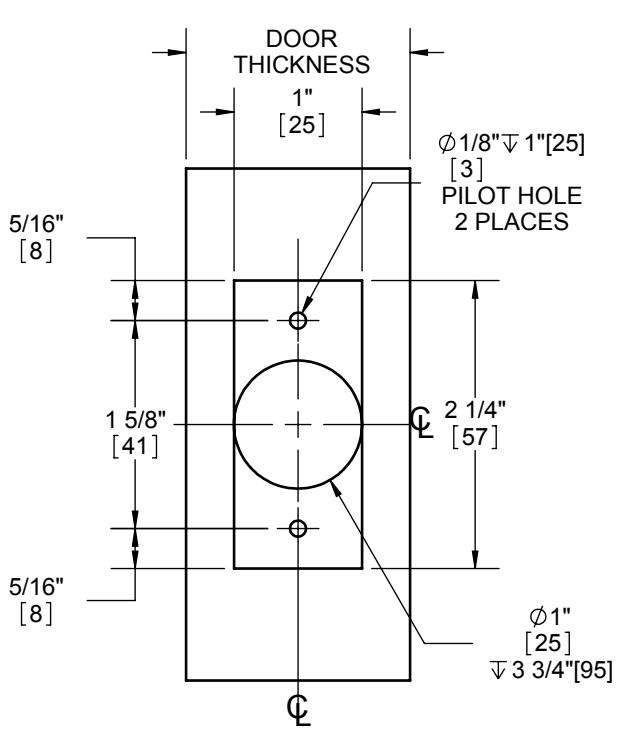

DOOR THICKNESS: 1 3/8"[35] - 1 3/4"[45] FACEPLATE: SQUARE, 1"[25] WIDTH

BACKSET: 2 3/4"[70]

HAGER°

DIMENSIONS IN [] ARE IN MILLIMETERS

TEMPLATE NO: DRAWING NO: T-LS01906 REV: - SHEET 1 OF 1
